Tidel TR303 - Component Power Supplies; Control Computer

15-4
15
Component Power Supplies
TR300 Series components requiring external power supplies
NOTE: Upper Compartment rear and front hoods must be removed to access Power Supplies.
Bracket assembly above Power Supplies must be removed to replace.
Control Computer
The Control Computer/Display/Touchscreen assembly requires a 110 VAC to +12 VDC converter
power supply..
The +12 VDC Power Supply is located inside the upper hood, on the right hand side
See illustration below
Printer
Units equipped with KFI Printer require a 110 VAC to +24 VDC converter power supply.
The +24 VDC Power Supply is located inside the upper hood, on the left hand side
See illustration below

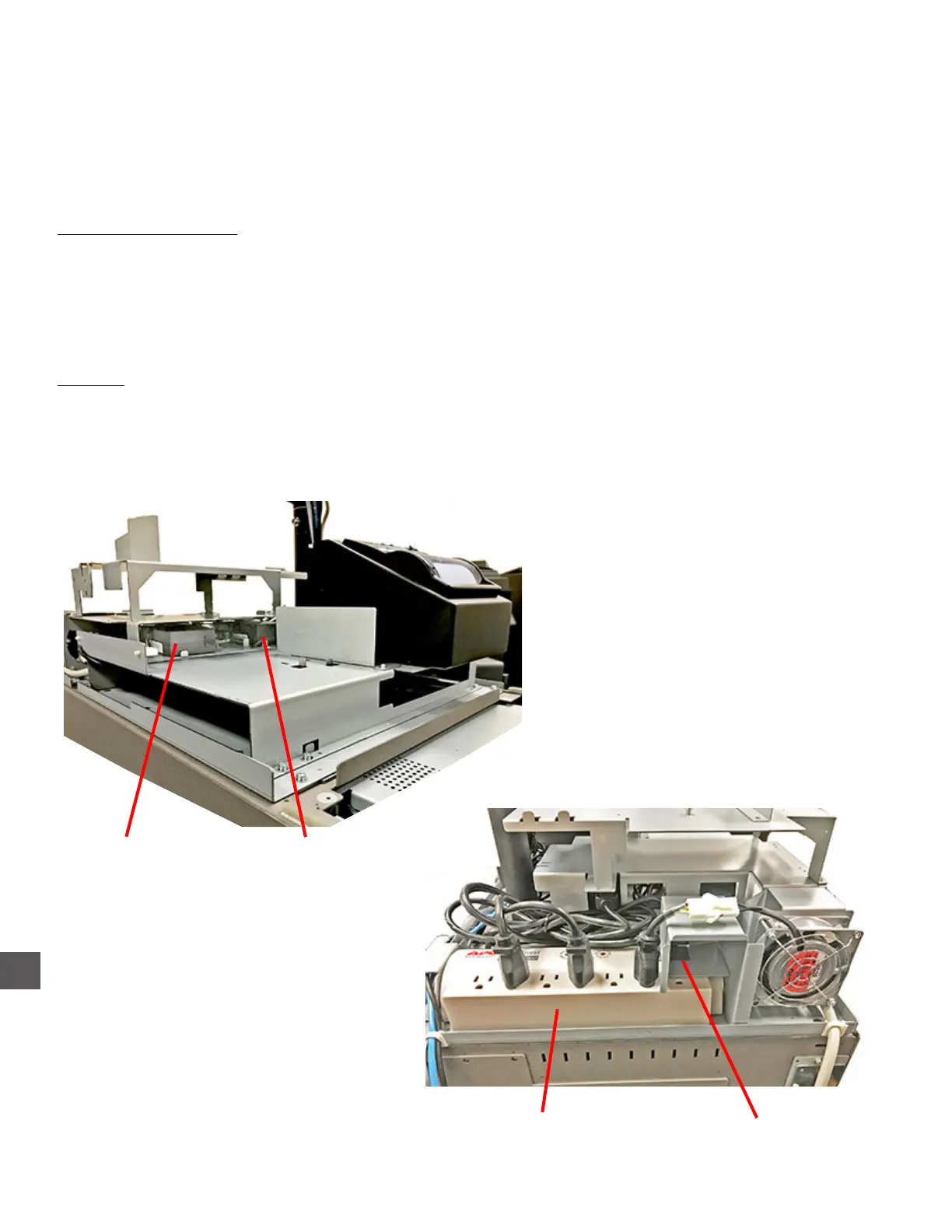

Component VAC ON/OFF
Rear View Of Upper Compartment
Component VAC
Power Strip
Control Computer
Power Supply
Printer
Power Supply
Front View Of Upper Compartment
