Tidel TR303 - Fingerprint Scanner; NFC (Till Drawer Tag) Reader

To Next Page

To Previous Page

14-25

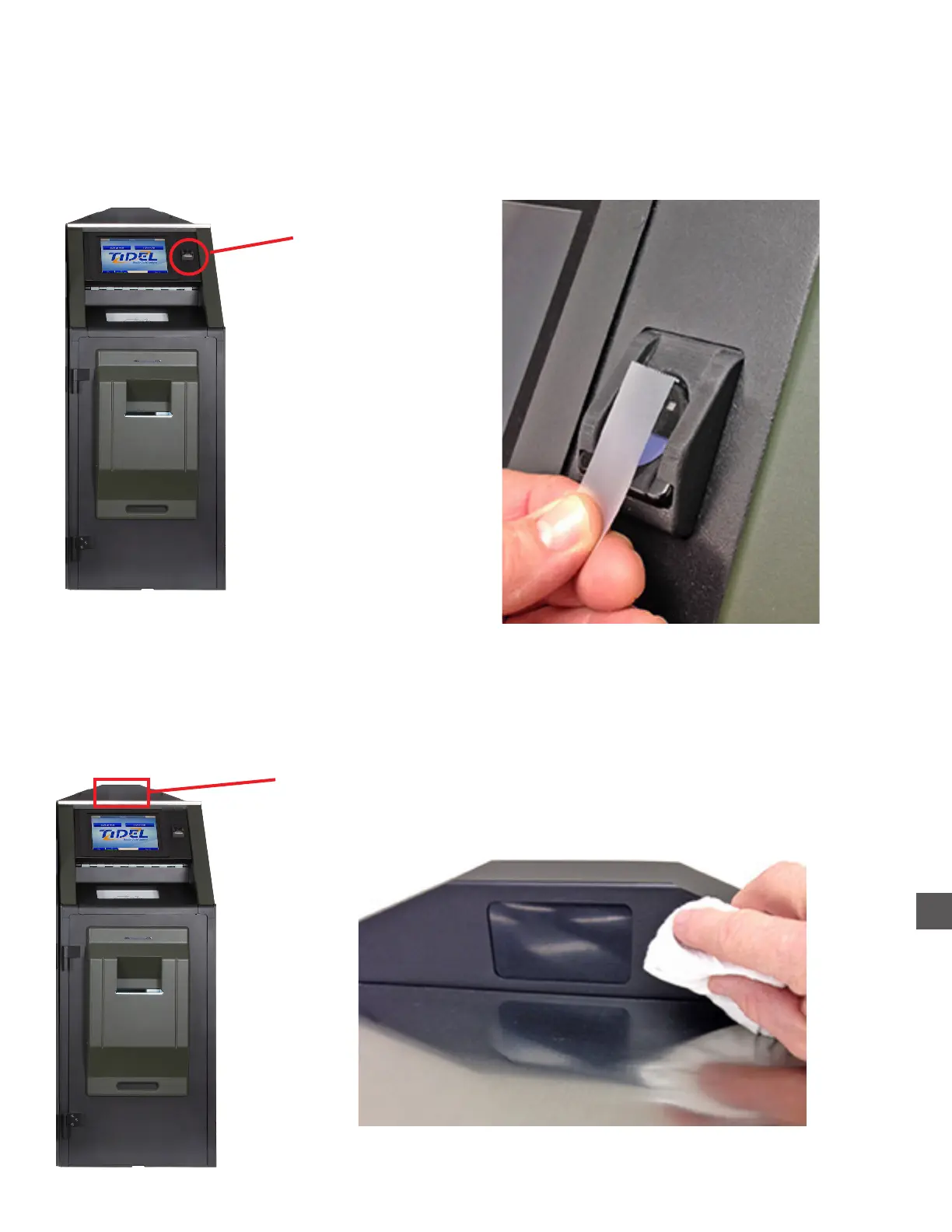

Fingerprint Reader

Cleaning can be performed by applying cellophane tape (sticky side down) onto the lens of the

Fingerprint Reader repeatedly until free of debris.

Do not use liquids, solvents or scraping devices to clean the reader lens surface.

NFC (Till Drawer Tag) Reader

Cleaning is limited to wiping the front marquee window with a damp cloth.

Do not use liquids, solvents or scraping devices to clean the lens surface.

Fingerprint Scanner

NFC Reader
