14-52

Printer

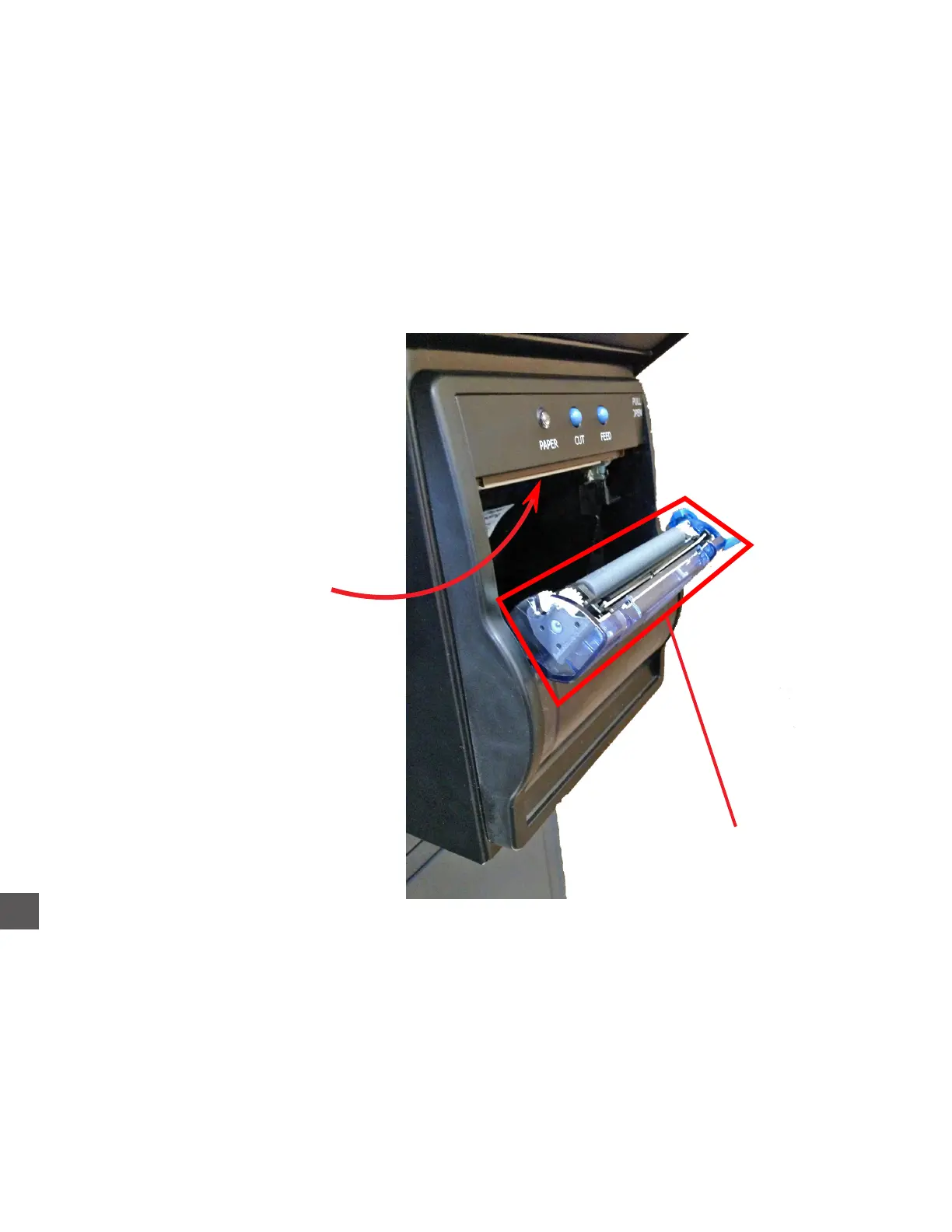

The Printer cutting areas should be blown out with compressed air routinely.

#1 - Blow out cutting area

with compressed air

#2 - Blow out paper rollers

with compressed air

#3 - Vacuum entire Printer interior
