Tidel TR303 - Sensors and Solenoids (Doors); To Test a Sensor

5-25
5
To test a Sensor:
1) Use the Maintenance Menu to view the Sensor status.
Login > Maintenance Menu > Door Solenoids and Sensors
X Block and unblock the Sensor.
If the Sensor status does not change appropriately:
a) Check the physical condition of the Sensor.
b) Check the “quick connect” at the Sensor cable (if equipped).
c) Check the connection at the Distribution PCB.
d) The Sensor may be defective.

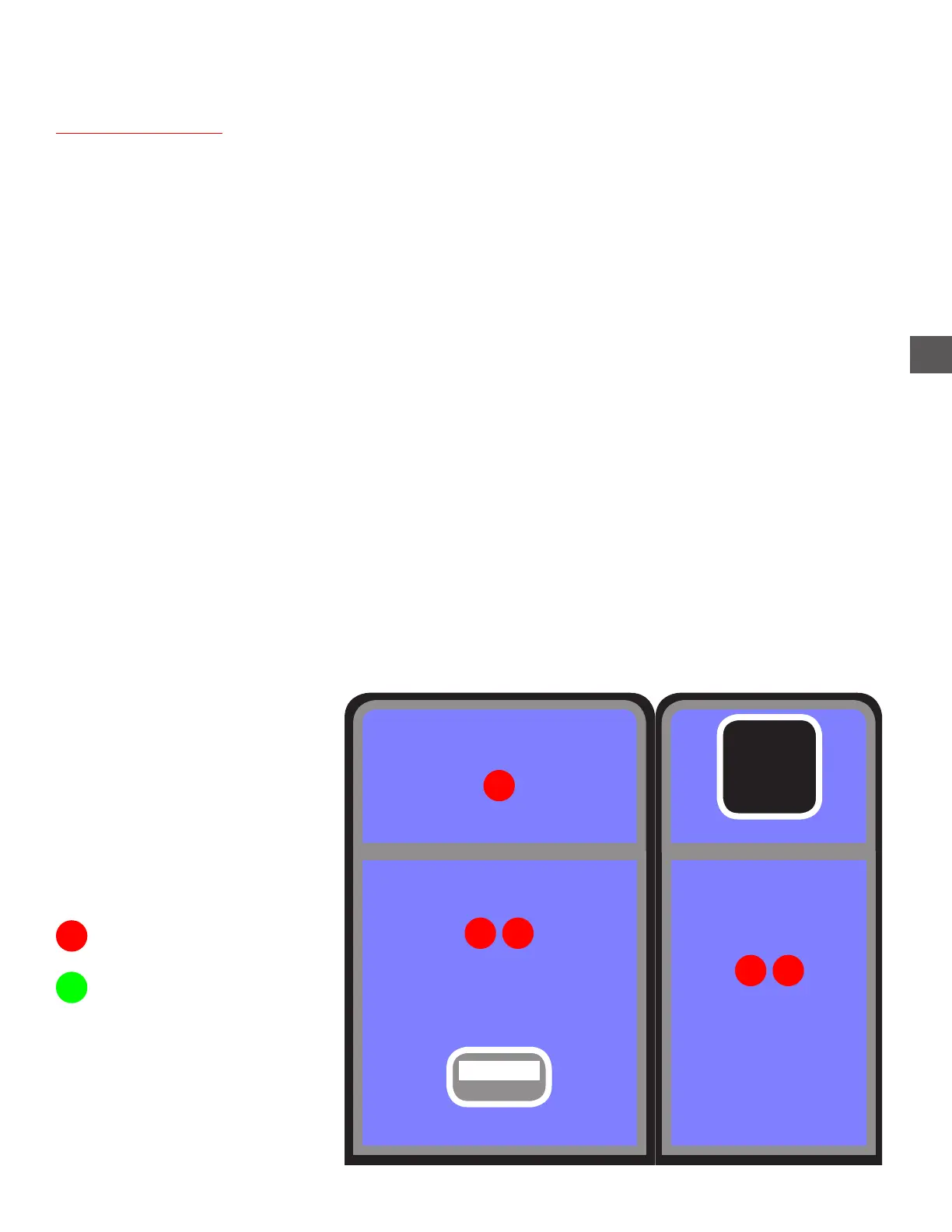

Sensors and Solenoids (Doors)
PC
Note Recycler
L D
Coin Recycler (Top Cover)
Coin Dispenser
D
L D
Coin Collection Tray Inserted
D = Door Position Sensor
L = Lock Position Sensor
= Unblocked
= Blocked
