Tidel TR303 - Coin Handler Bolt down

1-16
1
Step 1: Connect the Coin Handler wiring harness to the terminals at the top/rear of the TR250 Cash
Handler cabinet.
a) Cable length will determine orientation of connections.
b) Connect the ground wire to the center phillips head screw on the Power Supply Chassis.
c) Secure the wiring harness to the TR250 strain relief plate using the tie wraps included in
the accessory kit.
Step 2: Open the Coin Handler Vault Door.

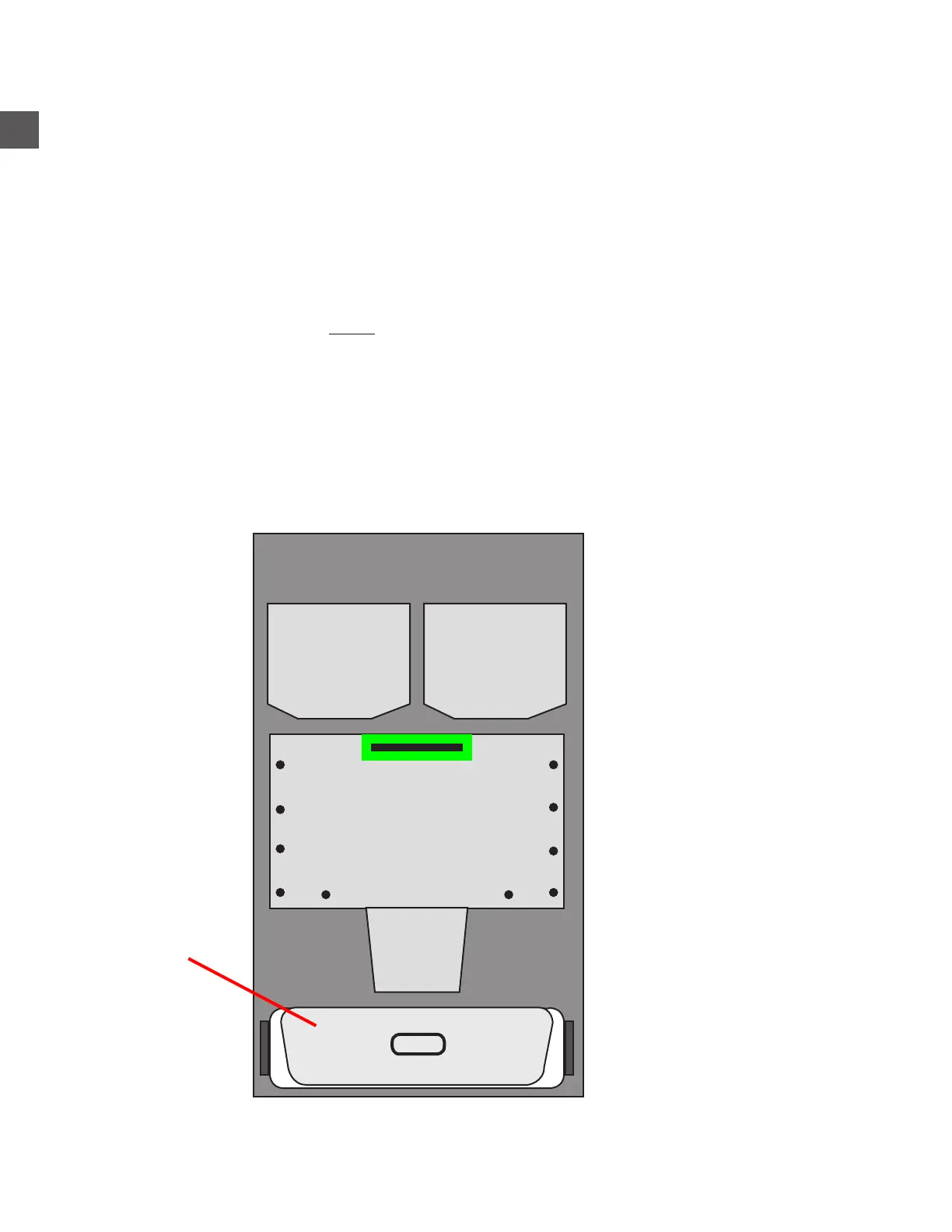

Step 3: Pull the Coin Dump Tray RACK fully out from the cabinet.
Step 4: Install the (6) bolts and washers.
Coin Dump Tray
Coin Handler Bolt Down
