11-34

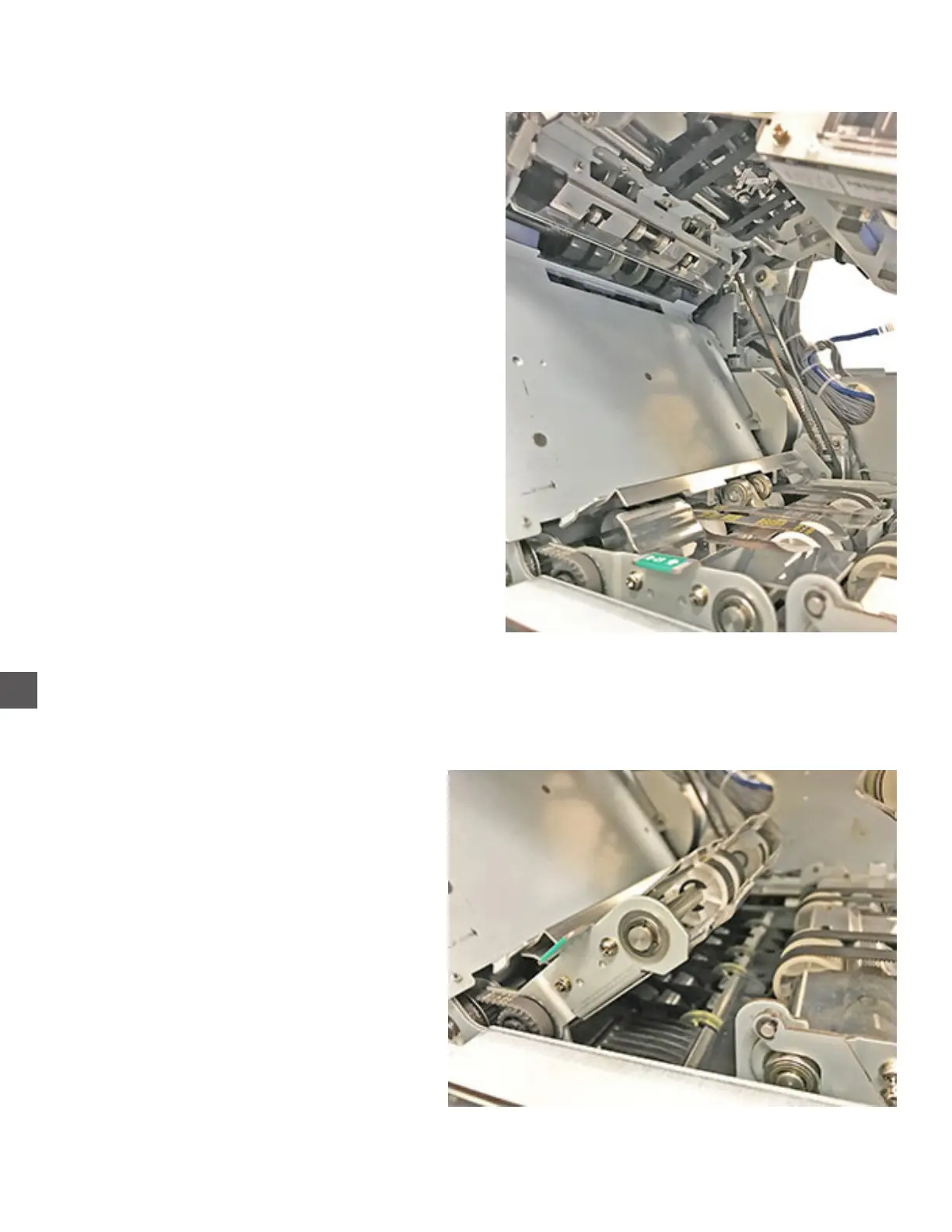

Bill Validator Cavity Jam Areas

Bill Validator Cavity

Rear Transport

1) Lift the B23 handle to open the rear

transport.

INSPECT ALL AREAS FOR JAMS/OBSTRUCTIONS
