6-4
6
When Tidel TR253 Coin Handler Modules are integrated with a Tidel Note Handler
The Circuit Breaker is located at the rear of the NOTE HANDLER .
When Tidel TR253 Coin Handler Modules are integrated with 3rd party Note Handlers
Coin Handler Modules are equipped with self contained Power Supplies and a Circuit Breaker.
The Circuit Breaker is located on the lower, right side of the Power Supply Assembly.
The Circuit Breaker also serves as an ON/OFF switch.
The Circuit Breaker will “trip” if current draw exceeds 6 amps and can be reset by pressing the button
back into the housing.
To access the ON/OFF Switch (units integrated with 3rd party Note Handlers only):
a) Lift the Coin Handler Top Cover
b) Locate the Power Supply Assembly, behind the Coin Sorter.
c) Locate the ON/FF Switch on the right side of the Power Supply Assembly.

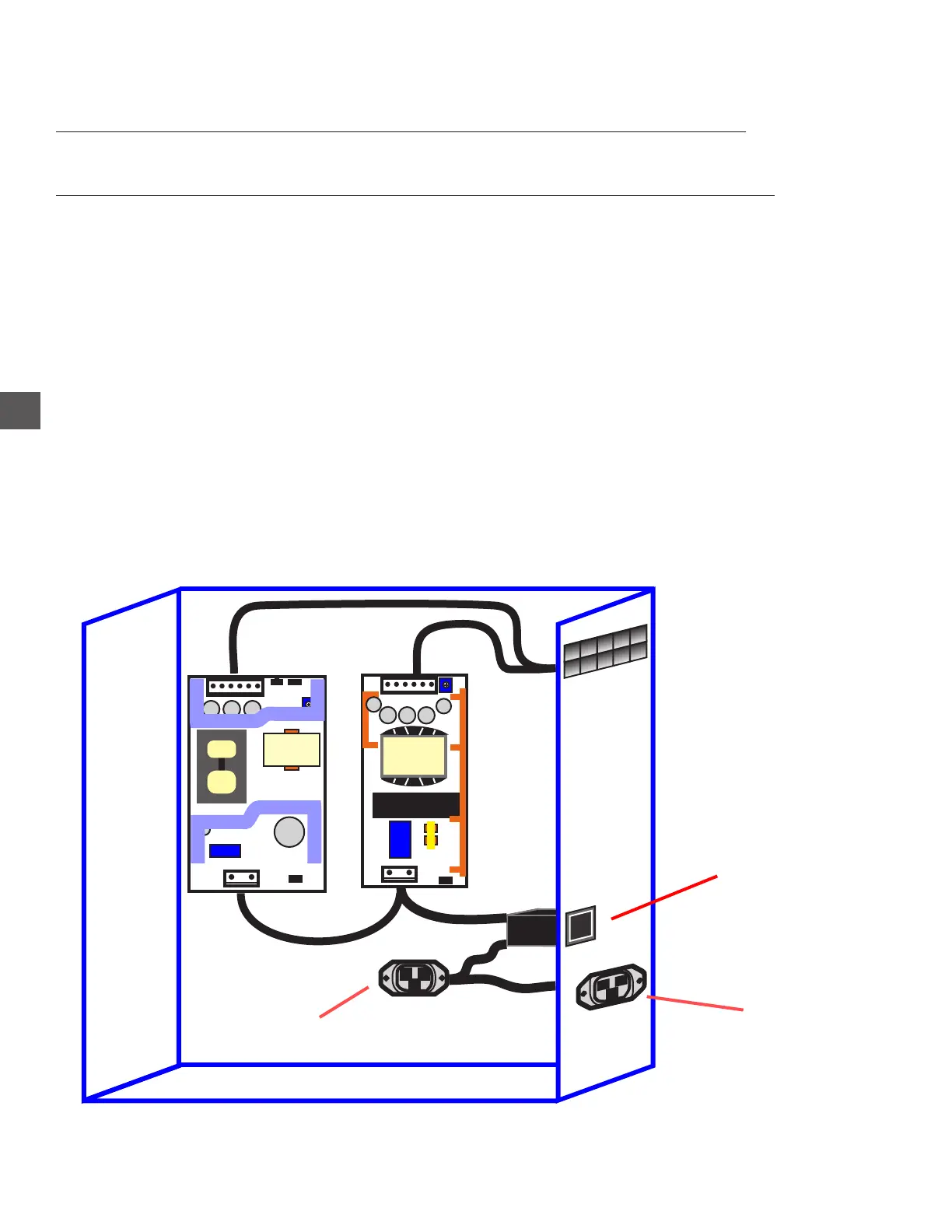

ON/OFF Switch - Circuit Breaker
Power Supply Assembly - For Coin Handlers connected to 3rd Party Note Handlers
VAC output to
Coin Sorter
ON/OFF Switch
(Thermal Breaker)
VAC input
