Coin Hopper Control
Coin Hopper operations are controlled by the Hardware Support PCB.
The Hardware Support PCB is located at the rear of the Coin Hopper Rack.
To access the Hardware Support PCB:
a) Open the Coin Handler Vault and extend the Coin Hopper Rack fully.
b) Remove the (2) rear Coin Hoppers.
c) Remove the (2) 7/16” nuts which secure the Hardware Support PCB cover.

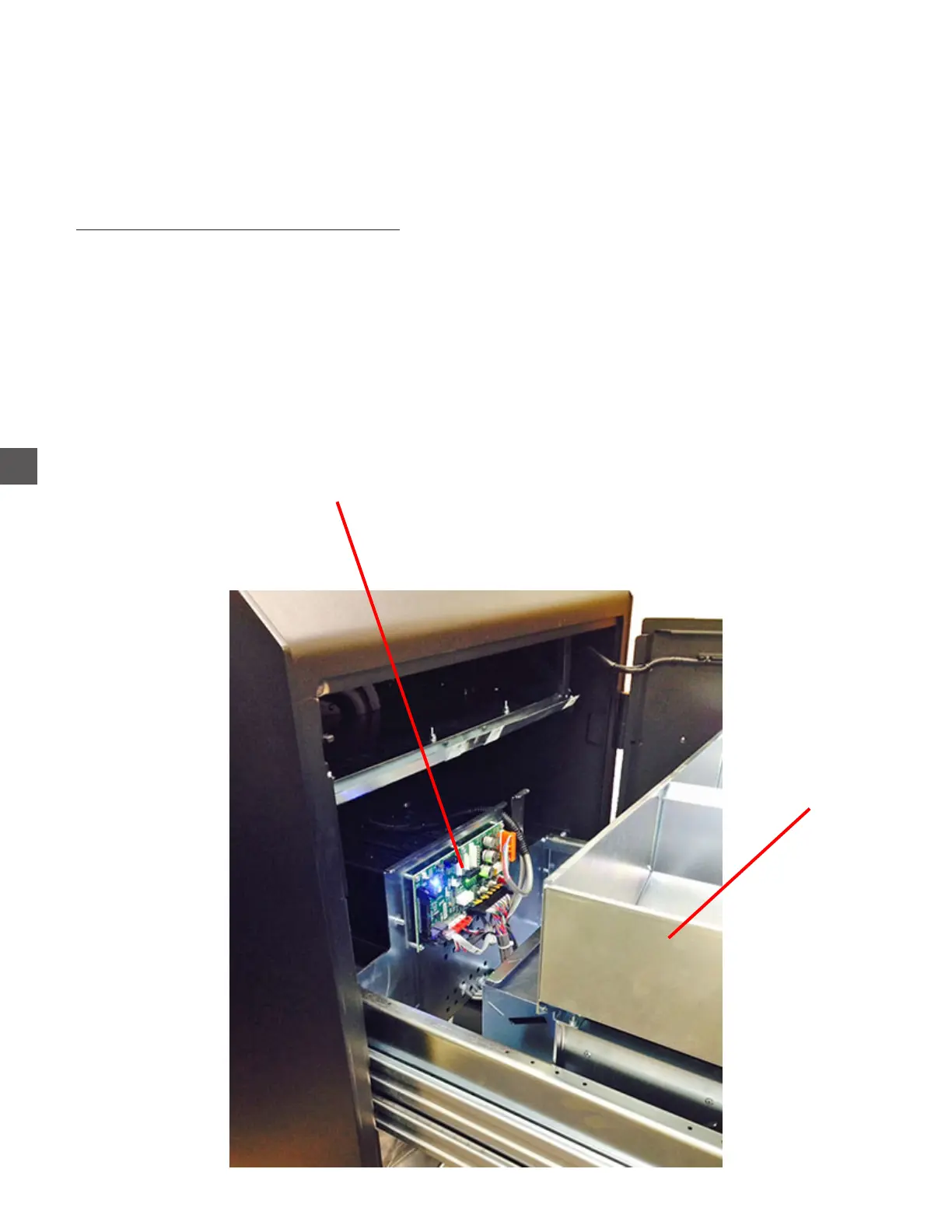

Hardware Support PCB
Hopper
Coin Hoppers
