Tidel TR303 - Display Assembly Rear View; Display;Touchscreen Face

To Next Page

To Previous Page

5-7

Display

Power LED

Display Power

Left

Right

Confirm

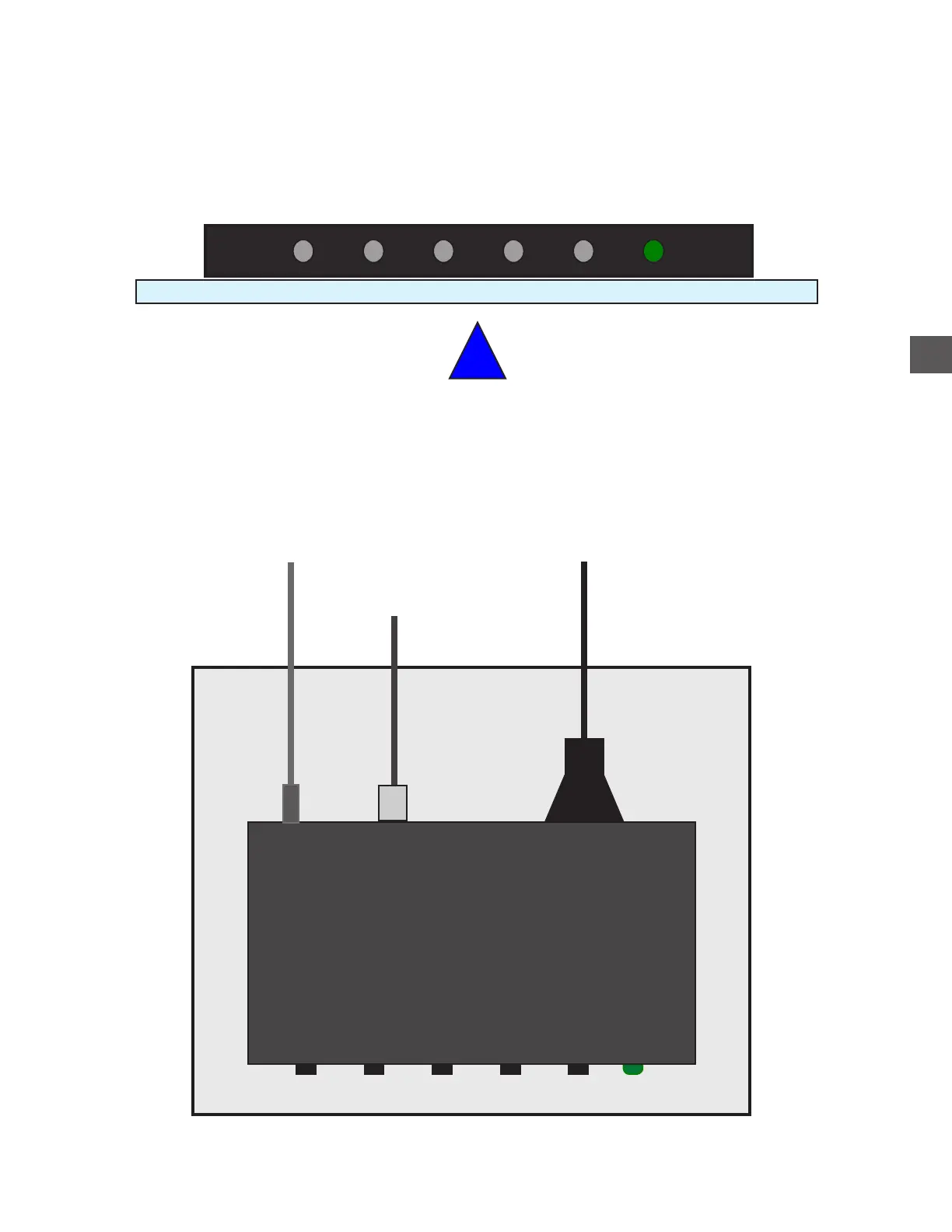

Display Assembly Rear View

Display/Touchscreen Face

+12 VDC input

DVI Display input

Touchscreen USB
