Bill Validator

The Bill Validator requires

removal to perform cleaning

Bill Validator

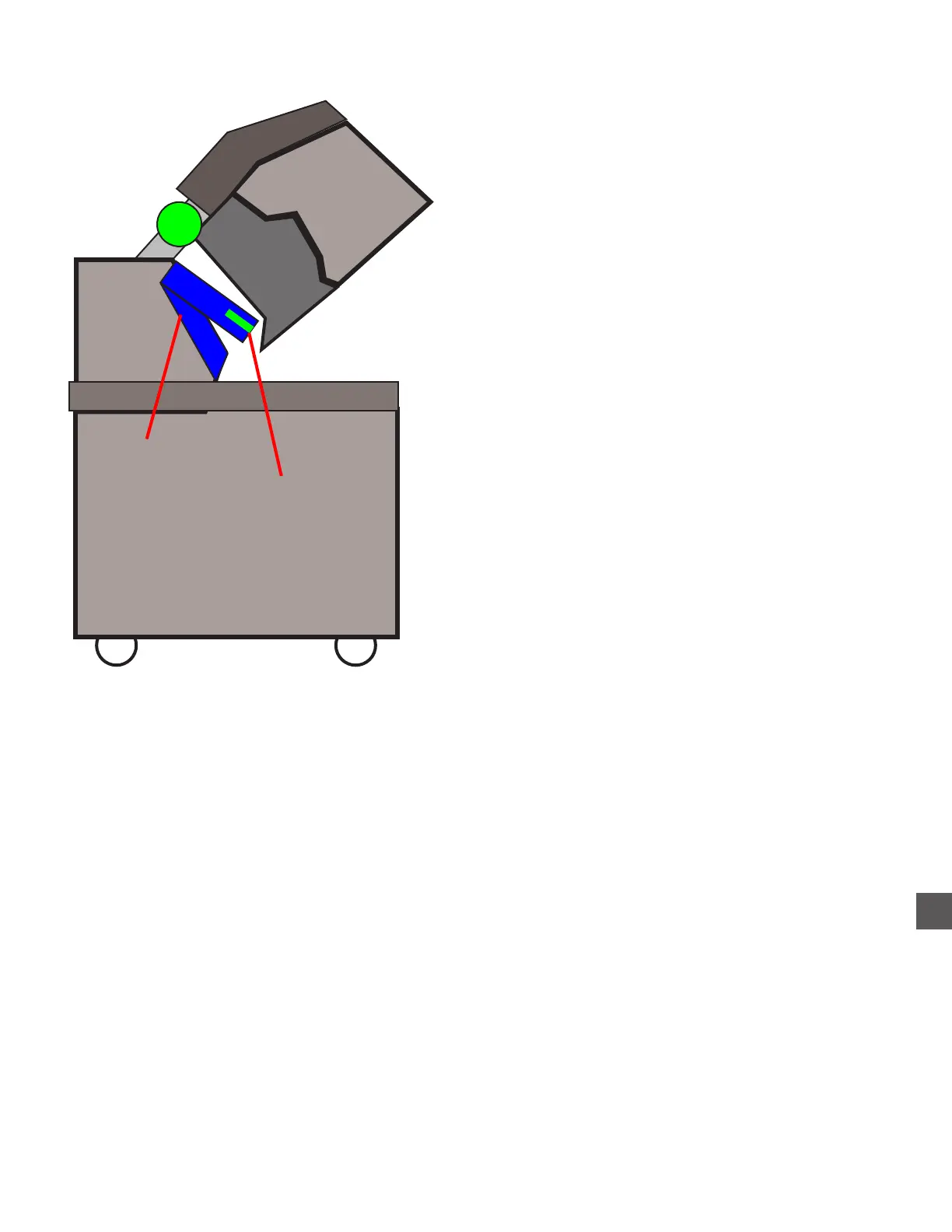

17 Handle

Lift the “17 Handle” to open the Bill Validator

(Jam Clearing)
