Tidel TR303 - +24 VDC Power Supply; To Adjust the Output Voltage of the Power Supply

5-21
5
+24 VDC Power Supply
To adjust the output voltage of the Power Supply:
1) Release and open the Electronics Bay door
2) Remove the (2) phillips head screws which secure the Power Supply cover and remove the
cover.
3) Locate the adjustment potentiometer.
 DO NOT turn the potentiometer if the volt meter is not displaying the current
output voltage.
 Turn the adjustment potentiometer VERY SLOWLY to raise or lower the
output voltage of the Power Supply.
 Do Not apply pressure to the adjustment Potentiometer when adjusting.

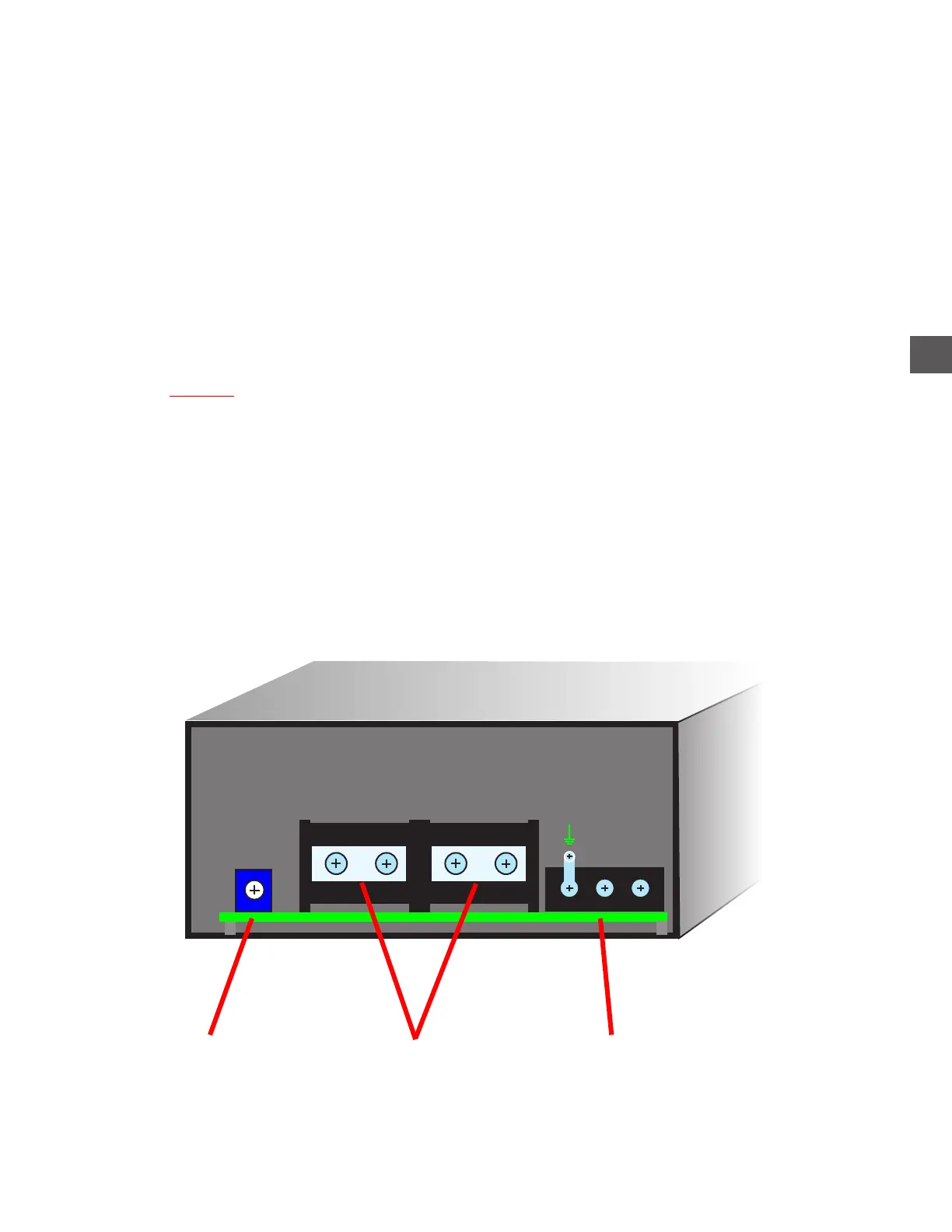

+24 VDC
Adjustment Potentiometer
VAC Power Input
L N
VDC Output
24 VDC Wiring
“+”
“ - ”
