The Coin Sorter is a Glory model MACH 6.
Coins are sorted at a rate of 3000 coins per minute.
The Coin Sorter can be powered by 110 or 220 VAC with no modifications.
(2) 4 amp fuses are located above the VAC power cord.
A release for the fuse holder is located in the center/underside of the fuse holder (press upward to
release.
A circuit breaker is located underneath the plastic cover, on the back side, near the hinge of the hood.
The ON/OFF switch is located on the bottom/front/right side of the Coin Sorter (facing the front of the
Note Handler Vault with the Coin Sorter mounted in the operating position).
The Coin Sorter Bay Front Plate must be removed to access ON/OFF Switch, however, the Coin Sorter
does not need to be removed from the mounting position for access.
All other connections on the right side require releasing the Coin Sorter from the mounting position to
access.
Data cable connections are located above the VAC power cord and ON/OFF switch.
Loading Tray
The loading tray can be removed for cleaning and loose coin retrieval.
With the loading tray in the idle position, press down on the tilting handle to remove the tray from the
Coin Sorter.
When re-installing the Loading Tray, align the tray pivot rod with the slot at the rear/right side and lay
the tray in position.
Coin Sorter
General Information

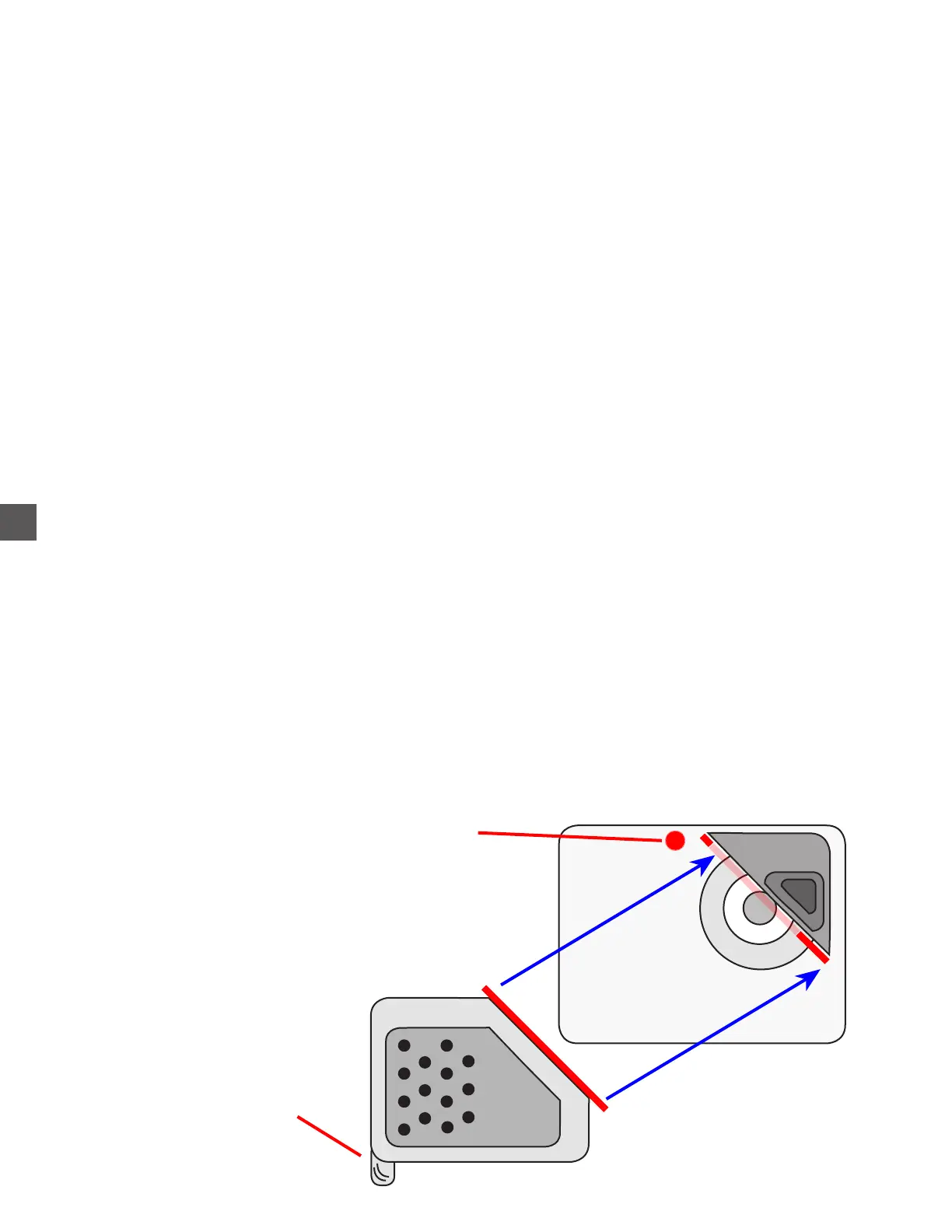

Press down on handle/tab
to remove the loading tray
Circuit Breaker
(under plastic cover)
