Tidel TR303 - Note Recycler Access

11-5
11
Note Recycler Access
Access to the Recycle Cassettes and Deposit Cassette only require opening the Note Handler Vault.
Access to the Reject Cassette or Note Recycler mechanisms (for cleaning or service) requires raising
the Note Collection Coverplate.
Open the Note Handler Vault Door in
order to raise the
Note Collection Coverplate

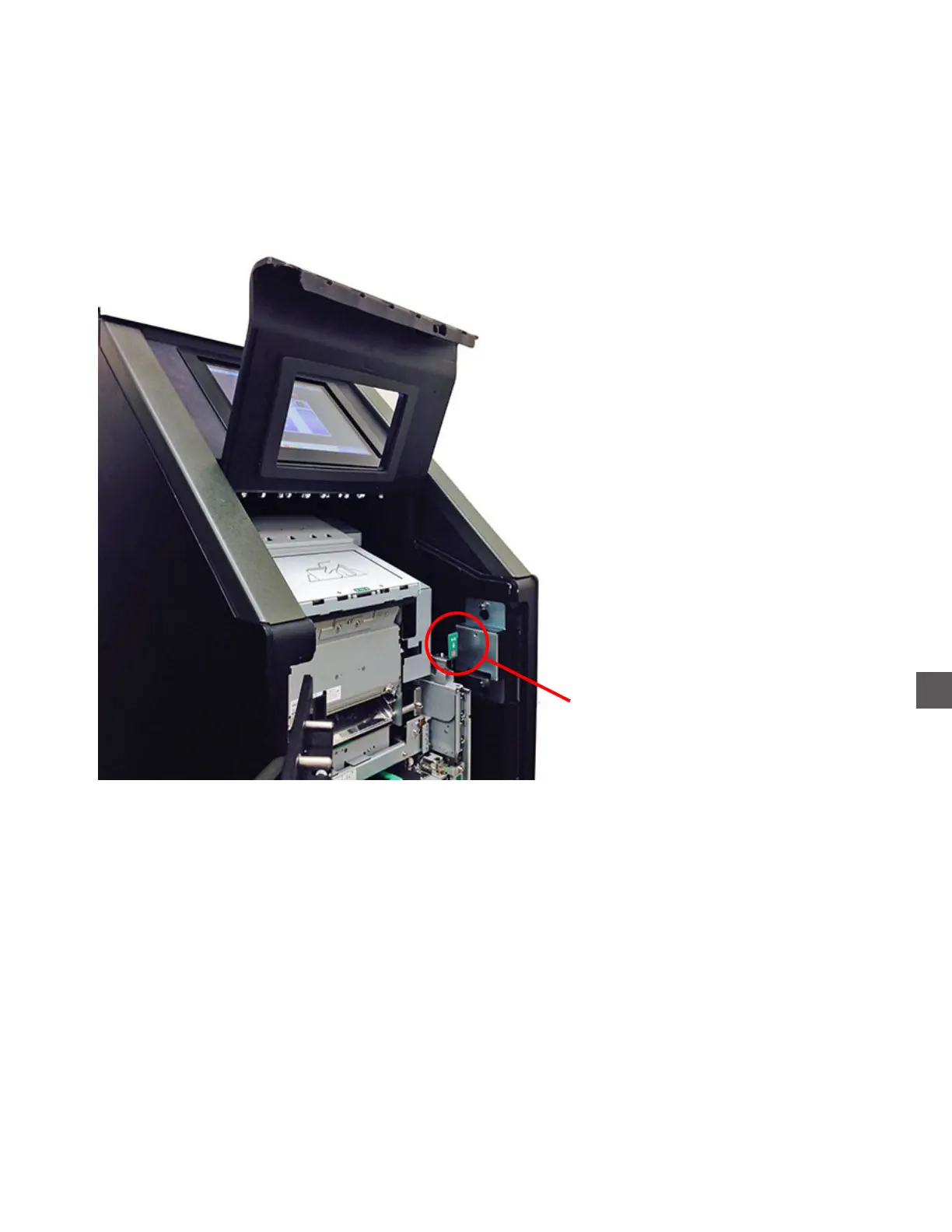

Pull the Note Recycler Release Lever
to extend the Note Recycler
from the Vault
