11-29

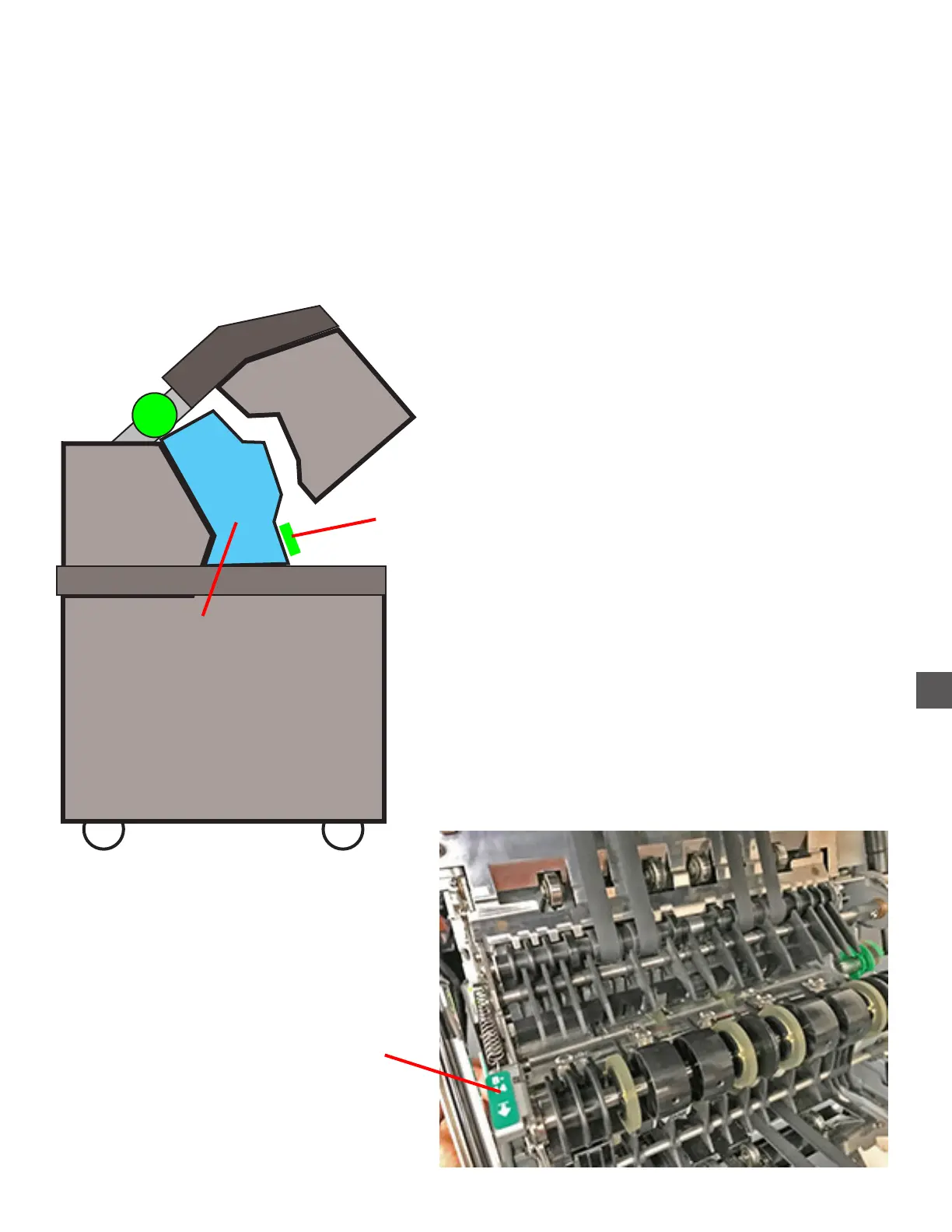

Escrow Module Jam Areas

(A) Escrow Module - B14 Door

1) Pull the B14 door down/forward

2) Rotate the B6 Knob

INSPECT ALL AREAS FOR JAMS/OBSTRUCTIONS

B14 Door

Escrow Module
