Tidel TR303 - Power Supply

6-5
6
The Tidel Coin Handler can be connected to a 110 VAC or 240 VAC circuit without modifying the Power
Supply.
When Tidel TR253 Coin Handler Modules are integrated with a Tidel Note Handler
VDC power is supplied from the Tidel Note Handler Module.
When Tidel TR253 Coin Handler Modules are integrated with 3rd party Note Handlers
The Coin Handler is equipped with (2) VAC to VDC Power Supplies encased in a chassis that
is mounted behind the Coin Sorter.
The larger Power Supply provides +24 VDC to the Coin Handler Hardware Support PCB and Solenoids.
The smaller Power Supply provides +5 and +12 VDC VDC for Door Sensor and Solenoid operation.
Incorrect voltages may possibly be corrected by making adjustments with the potentiometer on the
Power Supplies.
If no VDC output voltages are present when VAC power is applied to the Power Supply assembly,
ensure the ON/OFF switch - Circuit Breaker (at the lower, right Side of the Power Supply assembly), has
not opened.

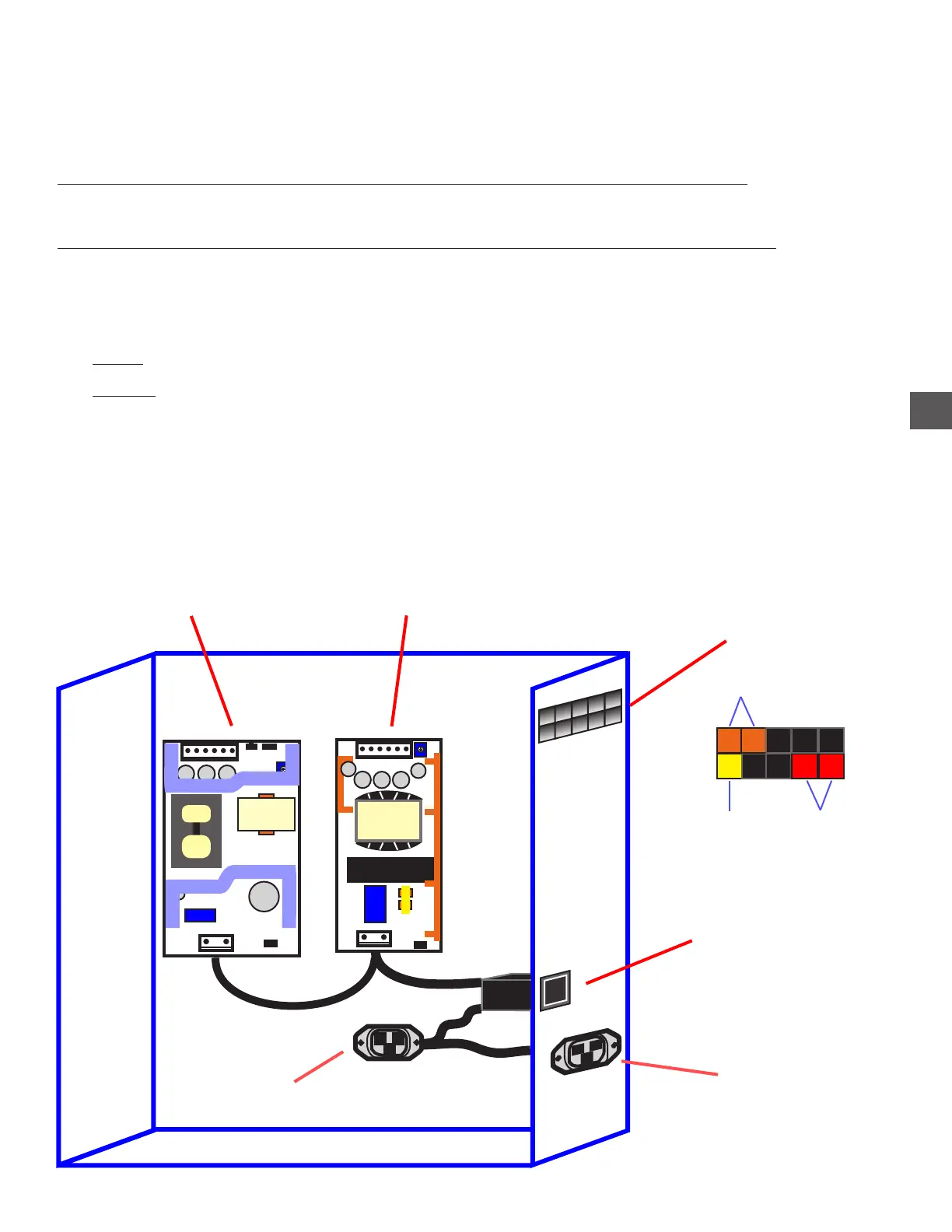

Power Supply
+24 VDC Power Supply
+5 VDC Power Supply
VDC Output
+24 VDC
+12 VDC +5 VDC
VAC output to
Coin Sorter
ON/OFF Switch
(Thermal Breaker)
VAC input
