14-51

Recycle/Deposit Cassettes

(B) Cassette Cleaning

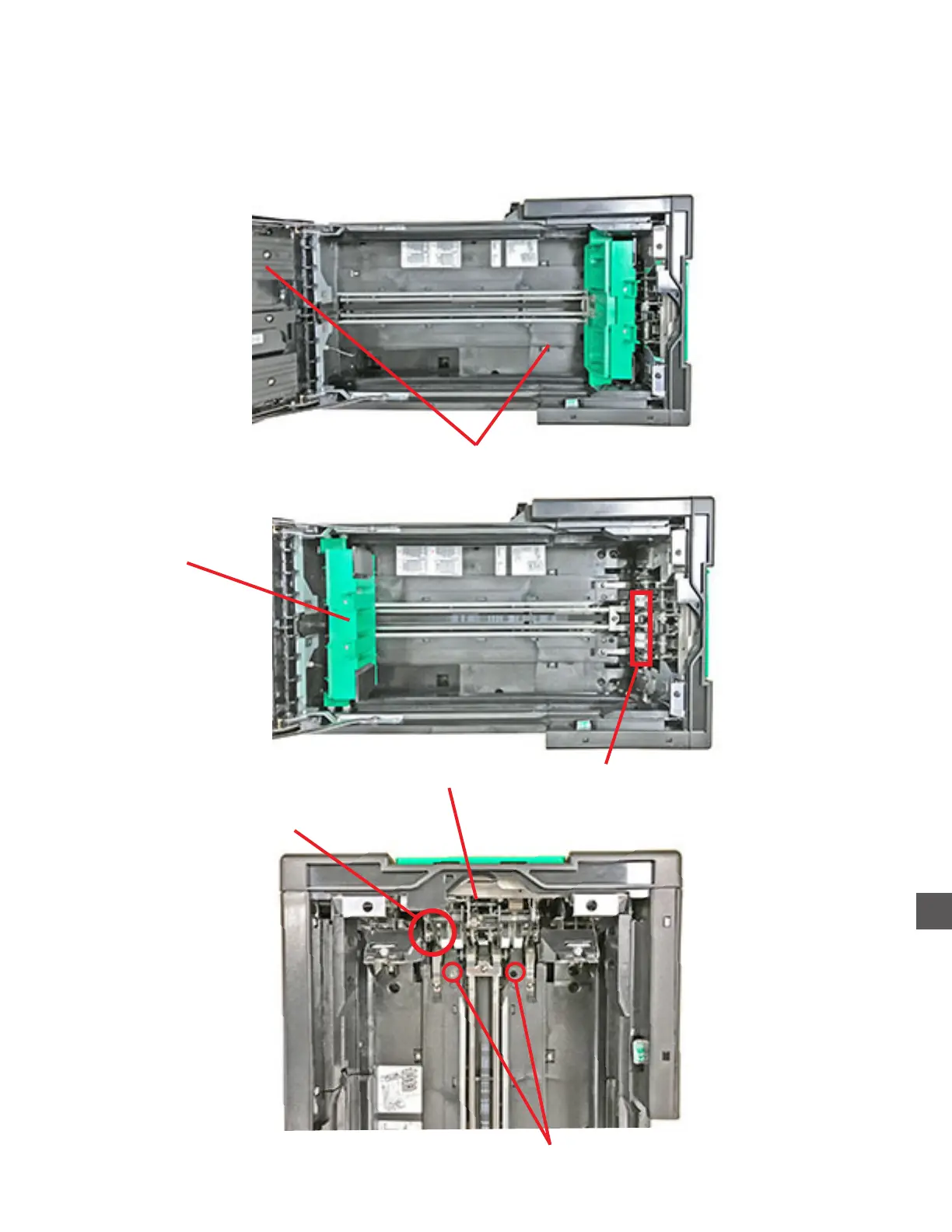

1) Open the Recycle/Deposit Cassette

#70 - Wipe/Vacuum interior surfaces

#71 - Vacuum Feed Assy - Clean Pick Rollers

Pull Pressure Plate

back to lock

#72 - Clean Pressure Sensor

#73 - Clean note stack low sensors
