Note Collection area
1) Rotate knob B10 (CW) to lower the presenter assembly.
2) Rotate knob B2 (CW) the to place the front packer plate forward.
3) Rotate knob B10 (CW) to lower presentation plate.
4) Rotate knob B11 (CW) to raise packer plate fence.
5) Rotate knob B1 (CCW) to bring the rear packer plate toward the rear of the unit.
6) Lift Note Insertion Area Door (B5)
INSPECT ALL AREAS FOR JAMS/OBSTRUCTIONS

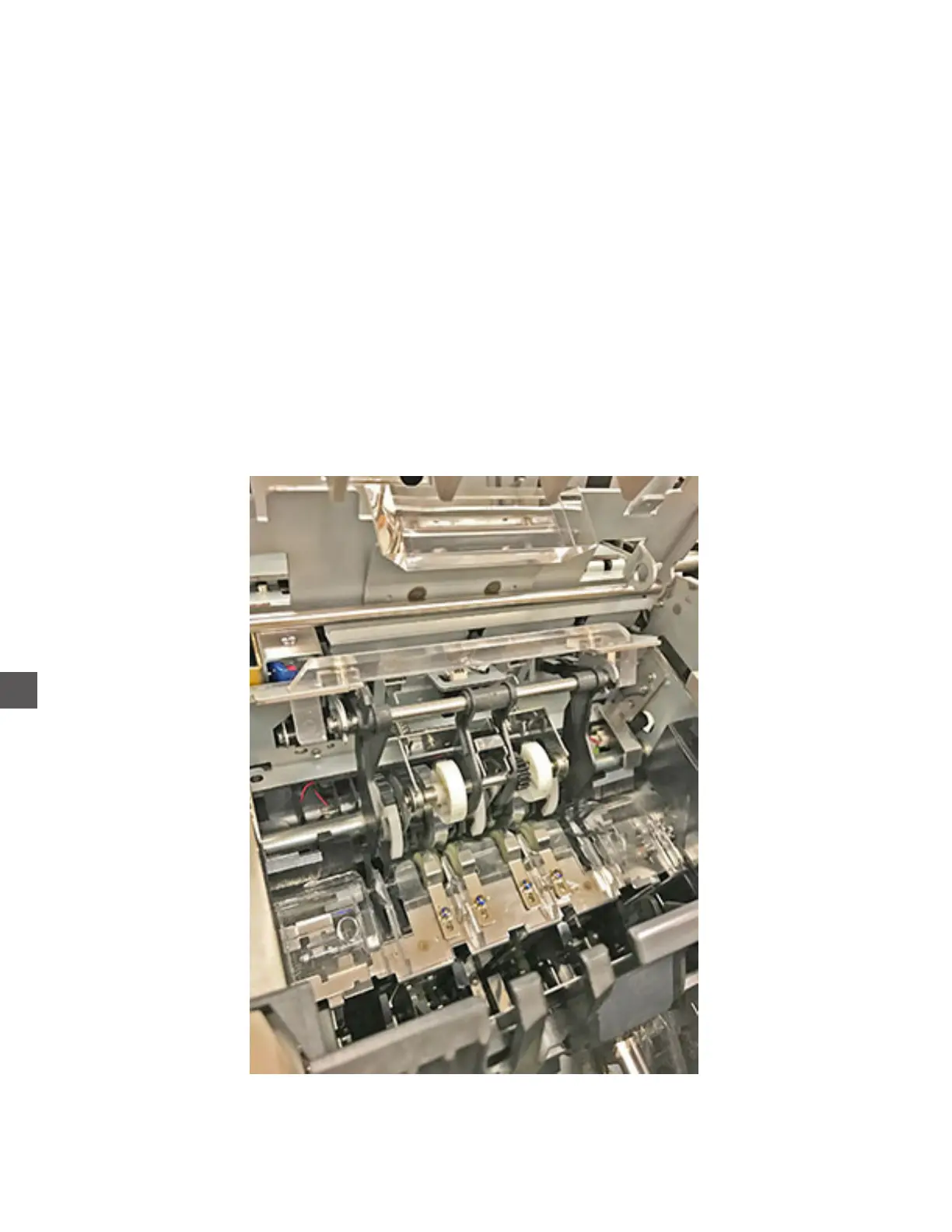

Note Collection - Jam Areas
