5-27
5
Door is not secure
The displayed message can be overidden by entering the Manager or Executive code.
1) The unit “sees” the Vault Door in the unlocked position, lock the Vault Door and insure the
Combination Lock is rotated to the fully locked position.
2) Insure the Solenoid Plunger moves freely.
3) Log into the Door Diagnostic menu and block/unblock the sensors to check operation.
Log In > More > Maintenance > Diagnostics > Doors
4) Check the connection at the Vault Door Locking Bolt position Sensor.
5) Check the connection at the Solenoid Plunger poisiton Sensor.
6) Check the connections at terminal J42 and J43 on the Distribution PCB.
7) Replace the suspected defective Sensor.
8) Possible Distribution PCB.
Solenoids and Sensors

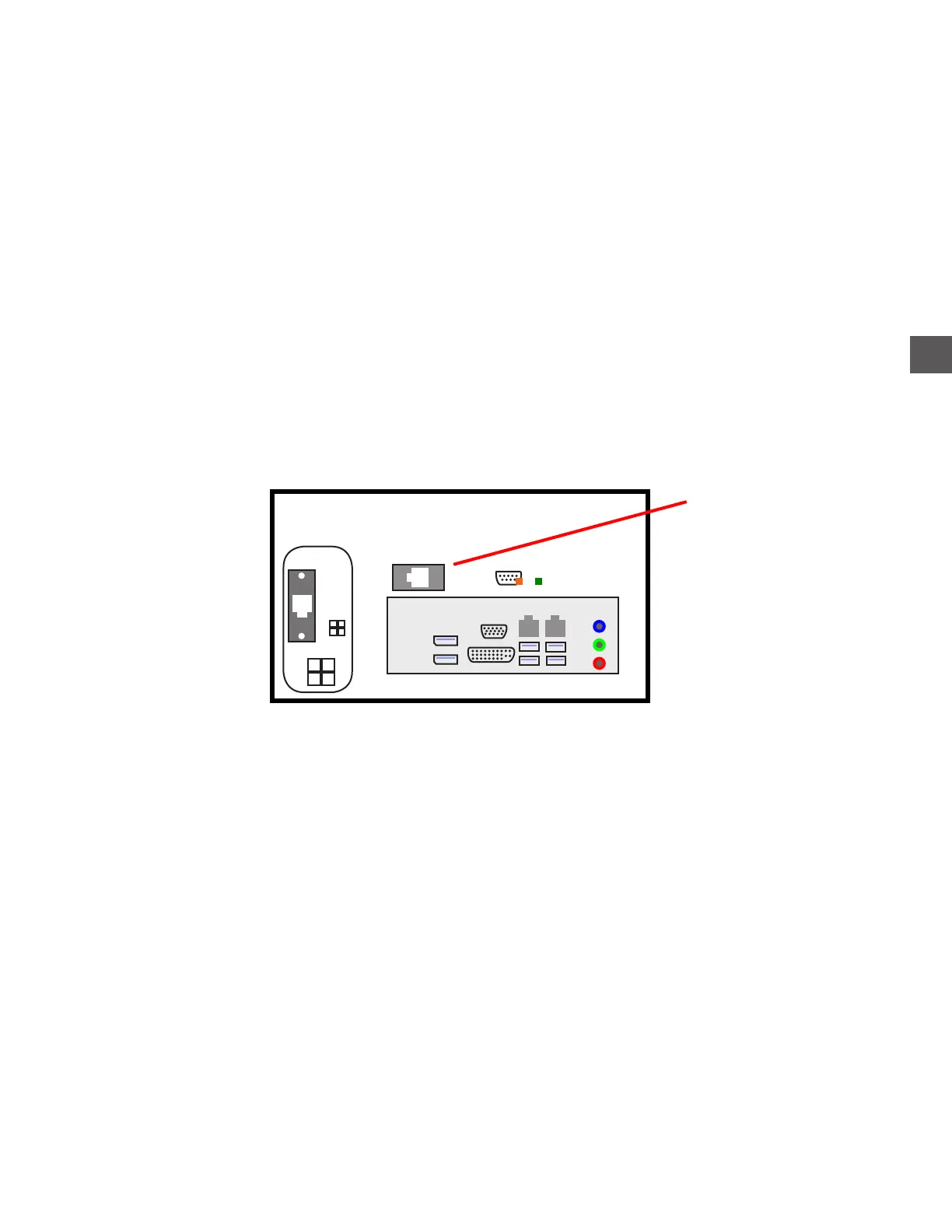

Distribution PCB Data
Display indicates the Note Recycler Vault Door is ready to open, Solenoid will not
activate:
1) Make sure the Door Handle is not binding on the Solenoid.
2) Check the Distribution PCB data connection at the Computer and the Distribution PCB.
3) Use the Diagnostic Menu to activate the Solenoid and check voltage to the Solenoid.
Login > Maintenance Menu > Door Solenoids and Sensors
X Activate the Solenoid by tapping the displayed door area.
If the Solenoid does not activate:
a) Check voltage at the “quick connect” on the Solenoid cable - when activated, the
voltmeter will display 14 ~ 24 VDC, then drop to approximately +3 VDC.
If so, the Solenoid Plunger may be binding or the Solenoid may be defective
b) If not:
Check the Solenoid connection at terminal J30 on the Distribution PCB
c) Insure +24 VDC is present at terminal J20 on the Distribution PCB.
If so, possible defective Distribution PCB
