11-41

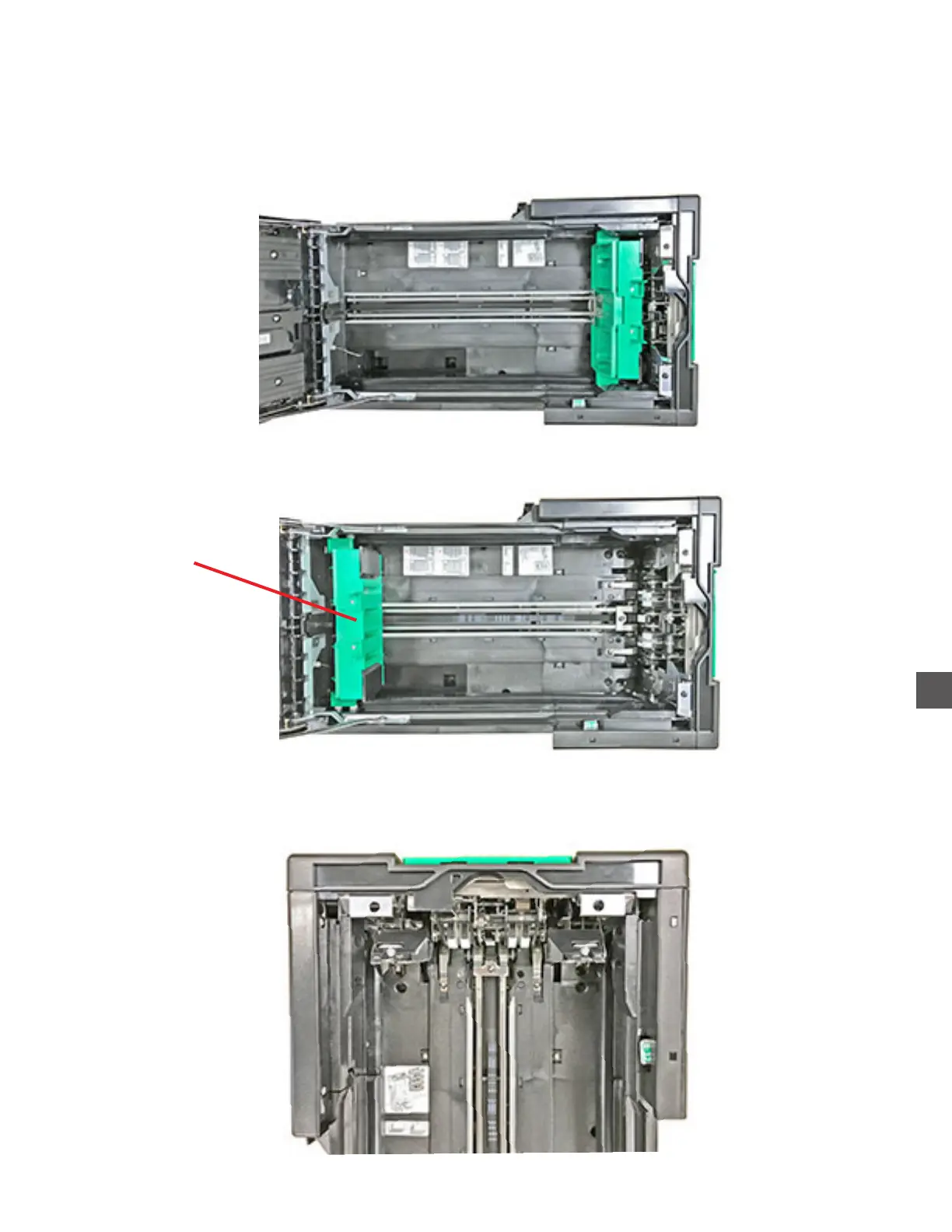

Recycle/Deposit Cassettes

Cassette (inside)

Pull Pressure Plate

back to lock

Inspect Feed/Pick area
