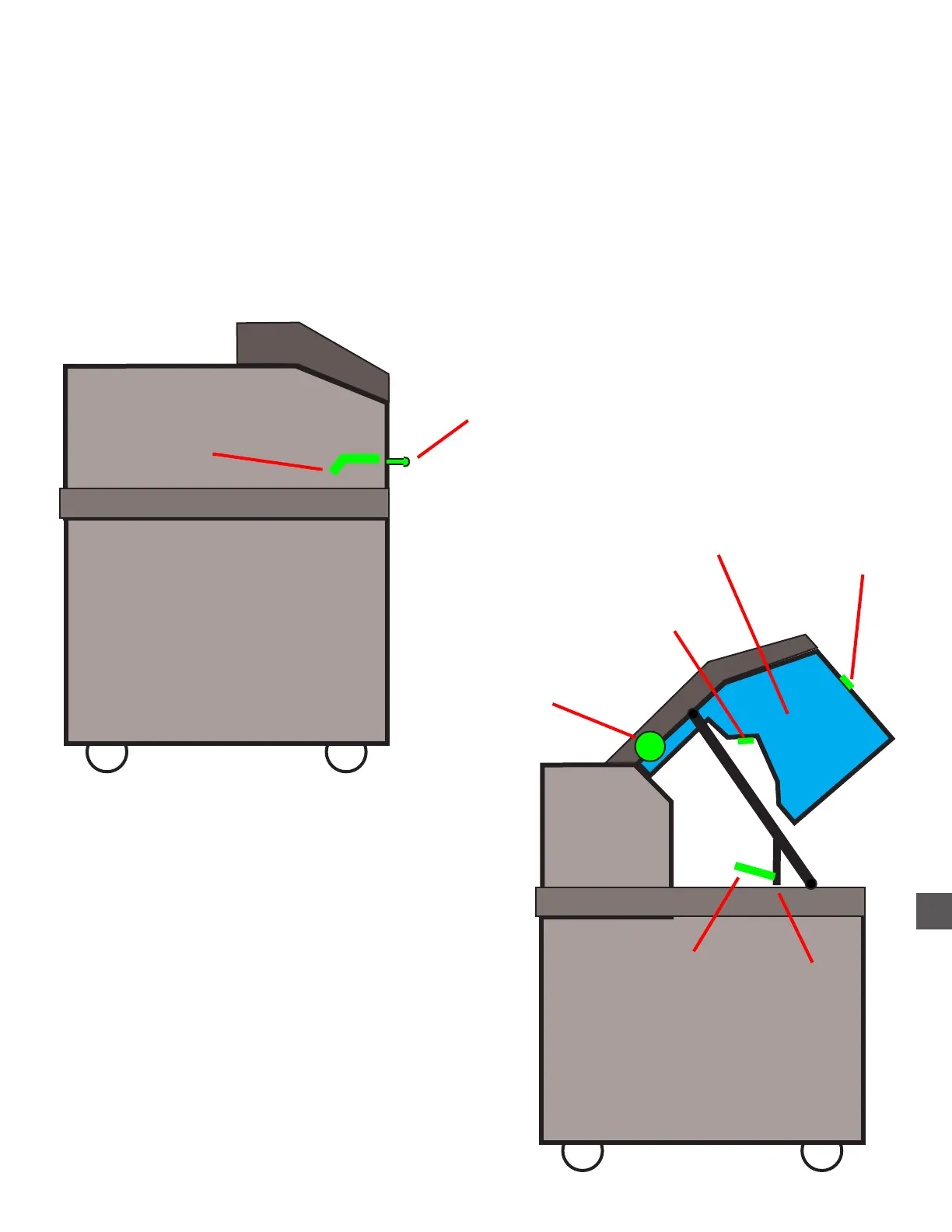

Feed Module - Cleaning / Jam Clear areas

B8 set screw

Lever B8

Shock Prop

Feed Module

Knob B6

B9 Door

Lever B12a

B4 Door

! DO NOT USE ALCOHOL OR SOLVENTS TO PERFORM CLEANING !

1) Insure the B8 set screw is backed fully away from the B8 lever.

2) Lift lever B8 to fully raise the the Feed Module.

3) Raise the Feed Module until the “shock prop” engages the shock.
