5-12
5

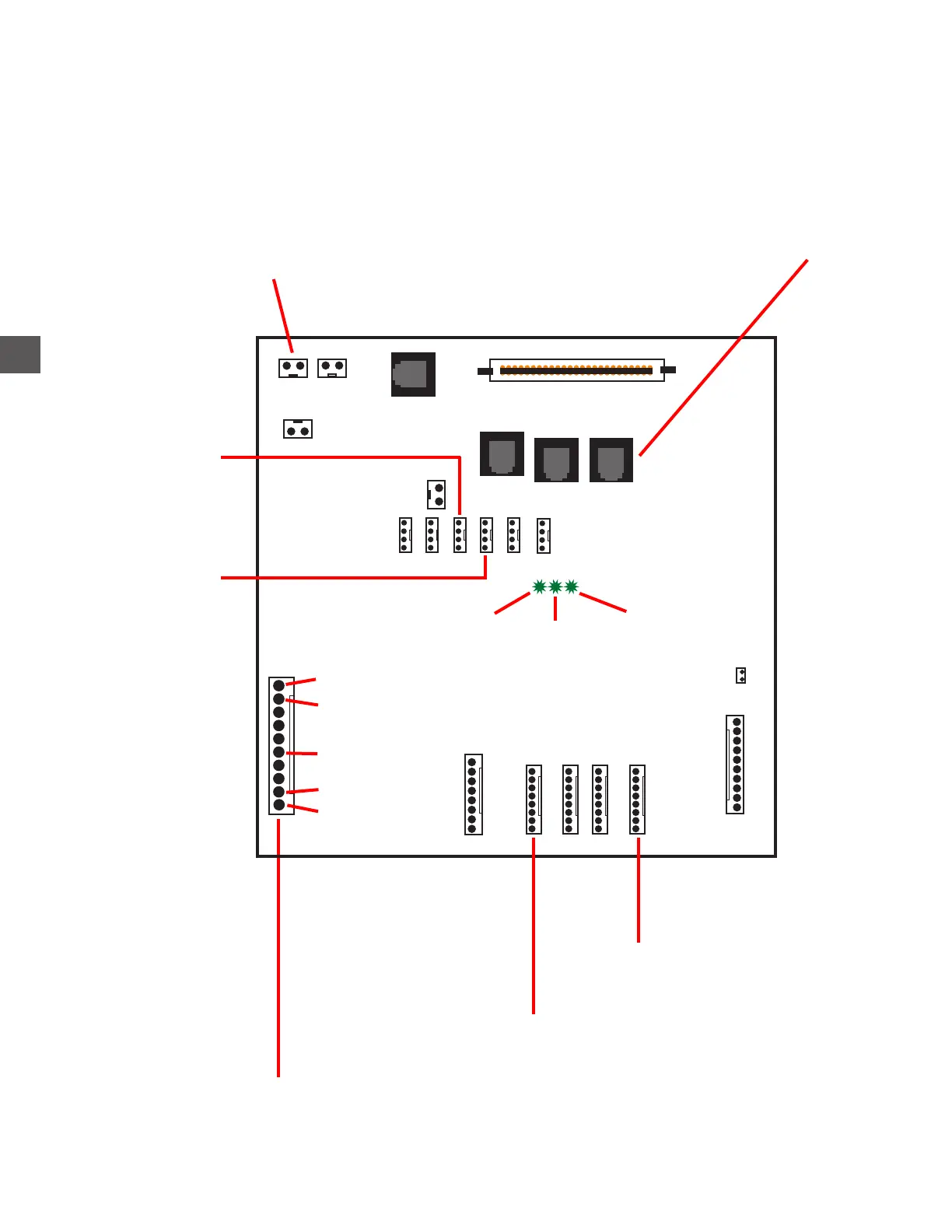

J20 VDC input from Component Power Supplies
Voltage Present LED’s
+24 VDC
+12 VDC
+5 VDC
Wht = +5
Red = +5
Ylw = +12
Prpl = +24
Pnk = +24
Distribution PCB
Printer VDC
Computer VDC
Computer Data
Note Recycler Vault Door
Solenoid
Note Recycler
Vault Solenoid
Position Sensor
(Lock)
Note Recycler
Vault Door
Position Sensor
(Door)
J5
J30
J42
J43
Red and Wht = +24 VDC
Orng = +12 VDC
Blu = +5 VDC
