Step 4: Pull the Note Recycler Assembly release lever forward and allow the Note Recycler to extend
from the Cradle approximately 18 inches.

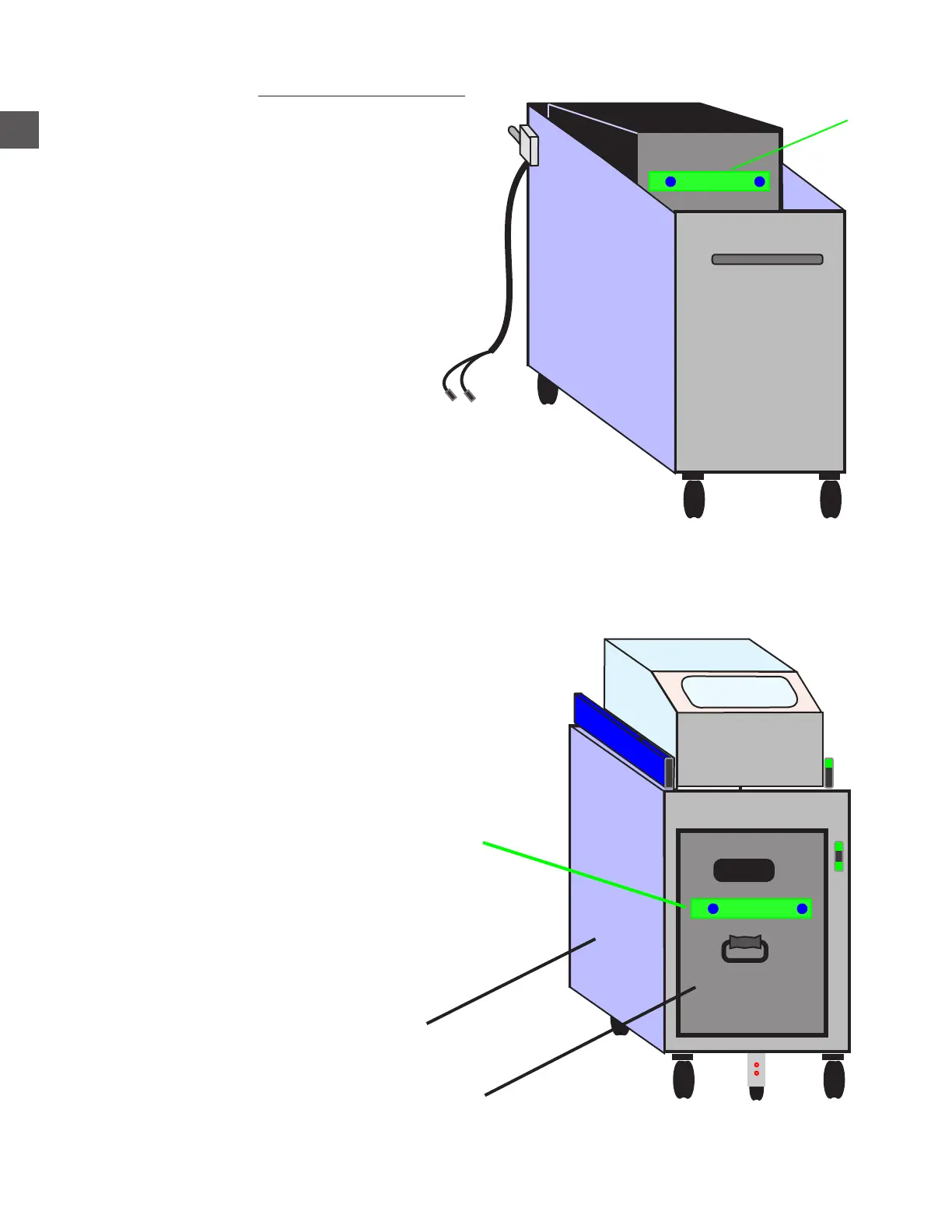

Rear View of Note Recycler
Front View of Note Recycler
Step 5: Remove the shipping bracket from the rear of the Cassette Rack “A” and secure it to the
duplicate bracket on the front of the of the Note Recycler for possible future use.
Step 6: Place the Note Recycler assembly back into the Cradle, ensuring the rack locks into place.
Cradle
Cassette Rack
Rear Cassette Rack shipping bracket “A”
mounted on front of Note Recycler
