Tidel TR303 - Page 27

To Next Page

To Previous Page

1-11

Cassette Rack Release Lever

Upper Transport Release Lever

DO NOT DISTURB

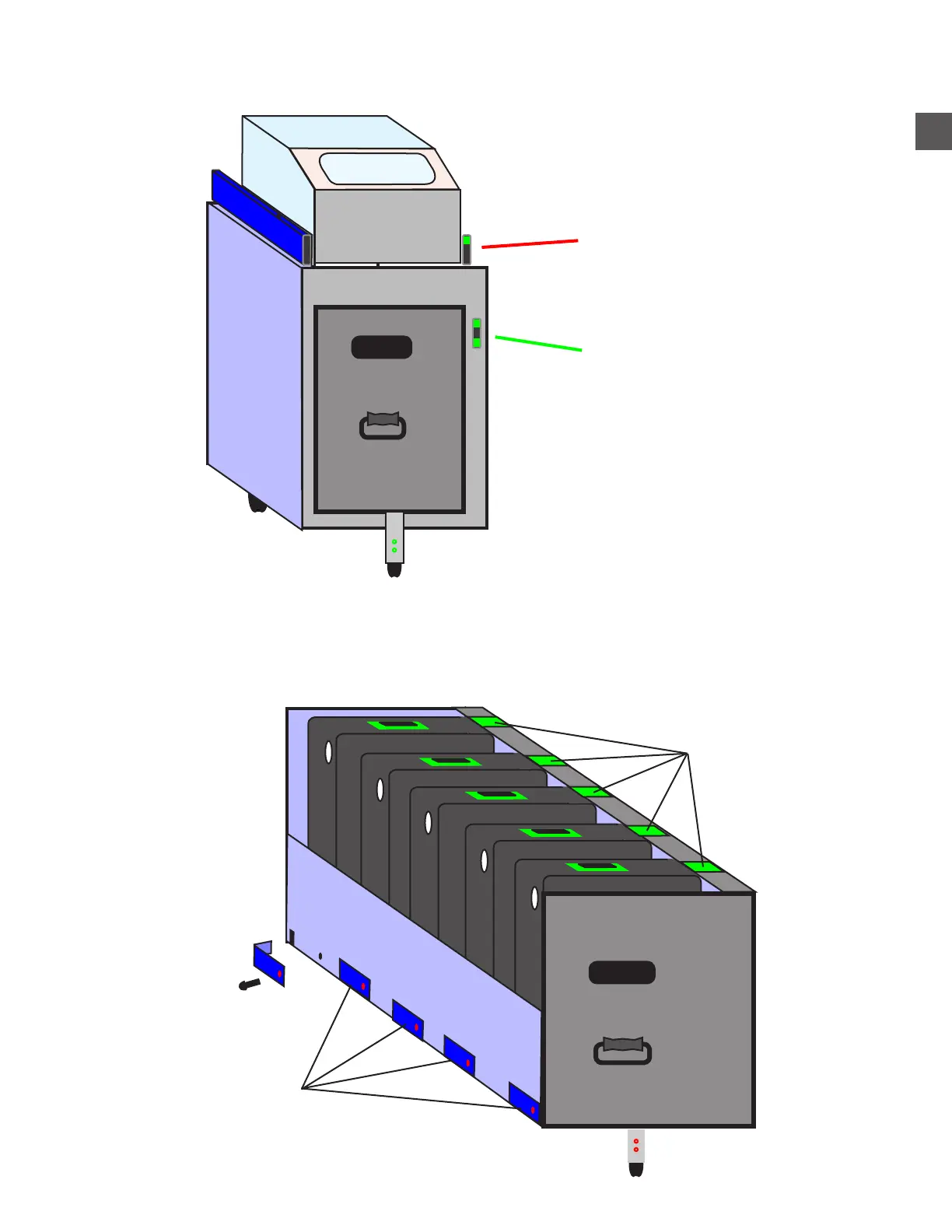

Step 7: Press the top of the Cassette Rack Release lever and pull the Cassette Rack fully out.

Step 8: Using a JIS Screwdriver, remove the Cassette shipping brackets “E” and install them on the

bottom, left side of the Cassette Rack.

Step 9: Place the Cassette Rack back into the assembly, ensuring the rack locks into place.

Install Cassette shipping

brackets here

Remove Cassette

shipping brackets
