14-14

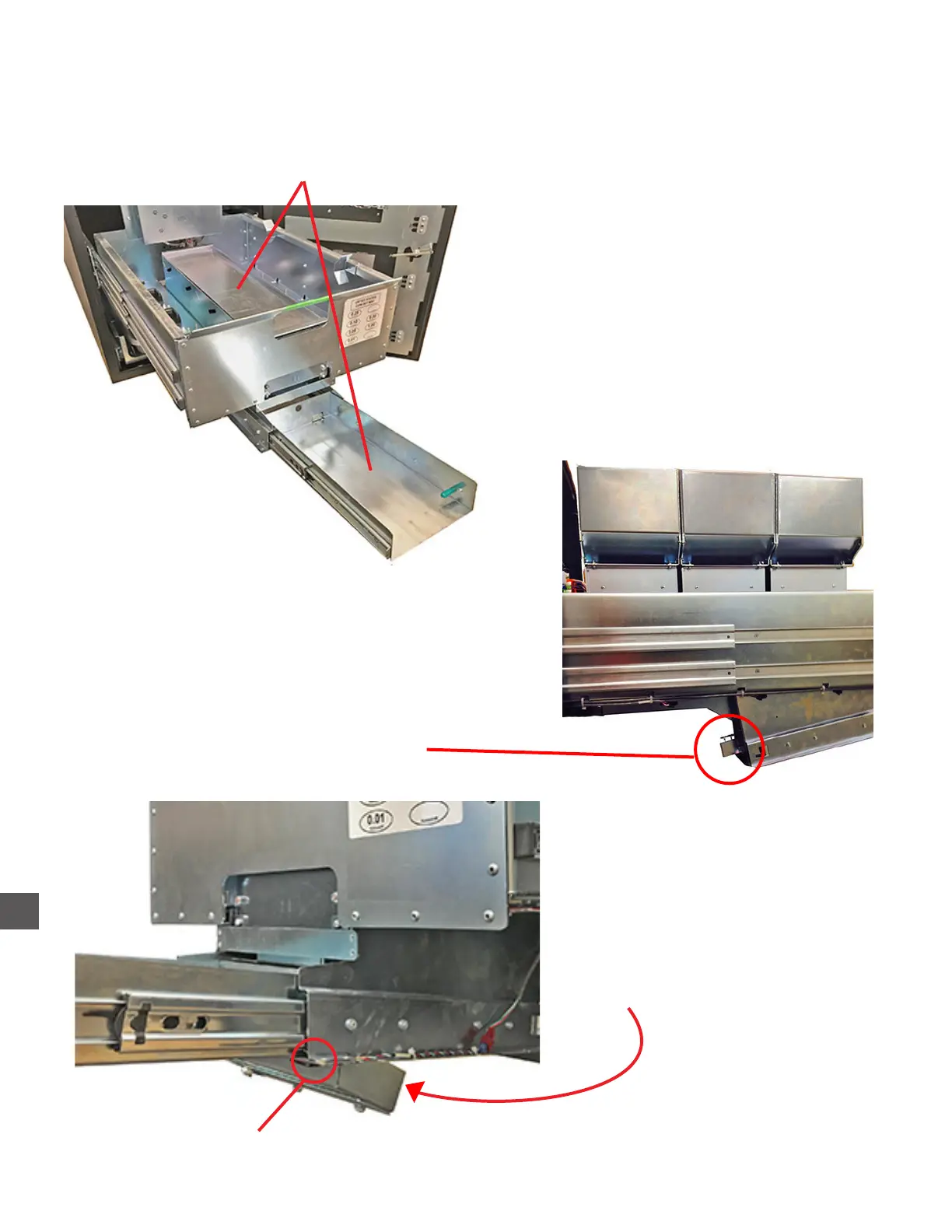

(B) Coin Hopper Rack Sensors

#4 - Clean Coin Collection Tray Sensor

#5 - Extend the Coin Collection Tray Rack

and clean the Sensor on the right side (facing

unit),

Coin Collection Tray Rack Sensor is

located under/inside coin divert channel

# 1 - Remove any loose coins/debris from the Hopper Rack area

# 2 - Vacuum the entire Hopper Rack/Coin Collection Tray Rack area

# 3 - Wipe all surfaces inside the Hopper Rack

and Coin Collection Tray Rack

(A) Coin Hopper Rack
