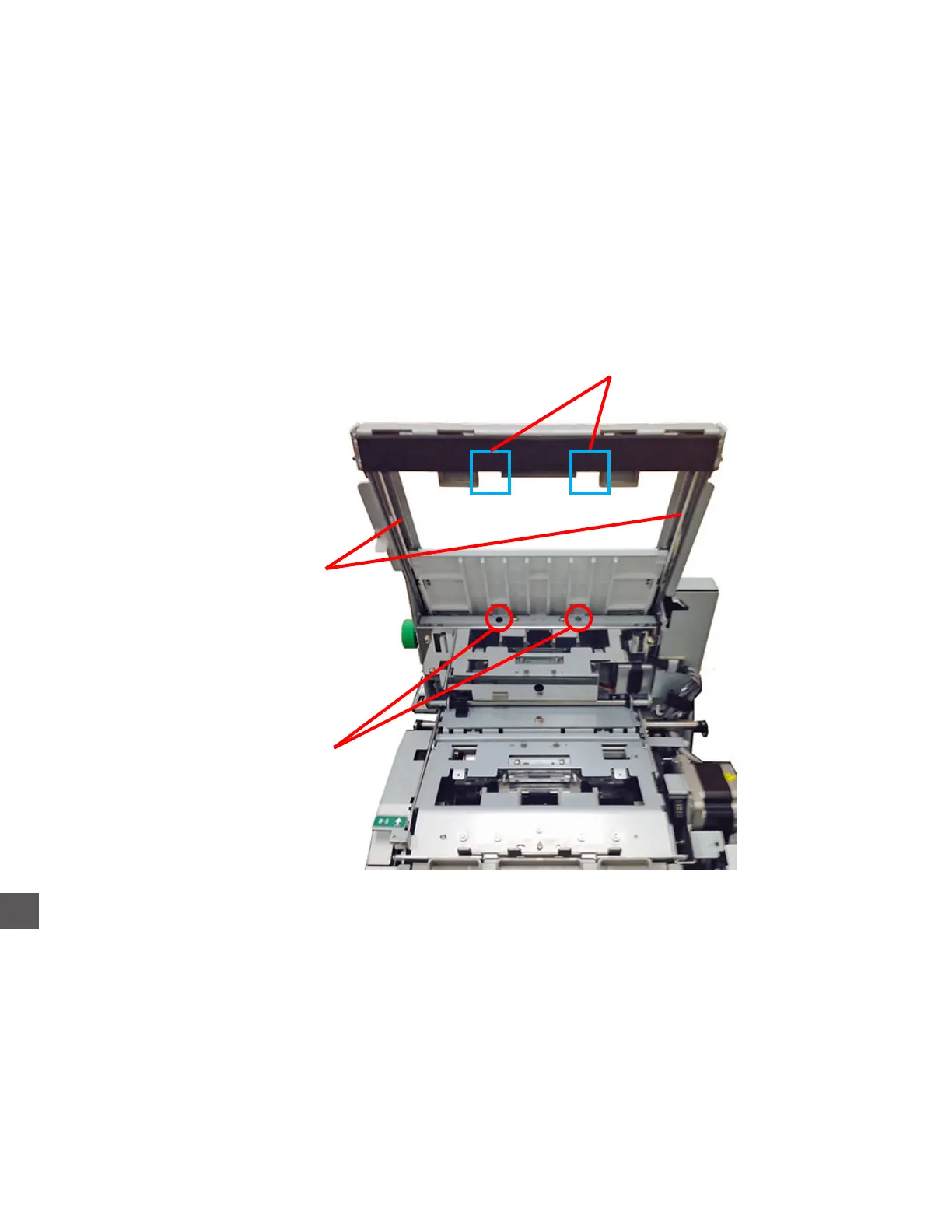

Note Collection Area

(A) Note Collection area

1) Lift the Shutter Door Assembly - lift point B12b

2) Rotate the Shutter Door Knob to the open position.

Perform Cleaning Procedures

#2 Note Insertion Sensor Acrylic lens

#2 Note Insertion Sensors

#1 Shutter Door
