(B) Note Collection area
1) Lift the Shutter Door (B12b).
2) Knob B1 fully (CW) to bring the rear packer plate toward the rear of the unit.
3) Knob B2 fully (CCW) the to place the front packer plate toward the rear of the unit.
4) Knob B10 fully (CCW) to raise presentation plate.
5) Knob B11 fully (CCW) to raise packer plate fence.
6) Lift Note Insertion Area Door (B5)
Perform Cleaning Procedures

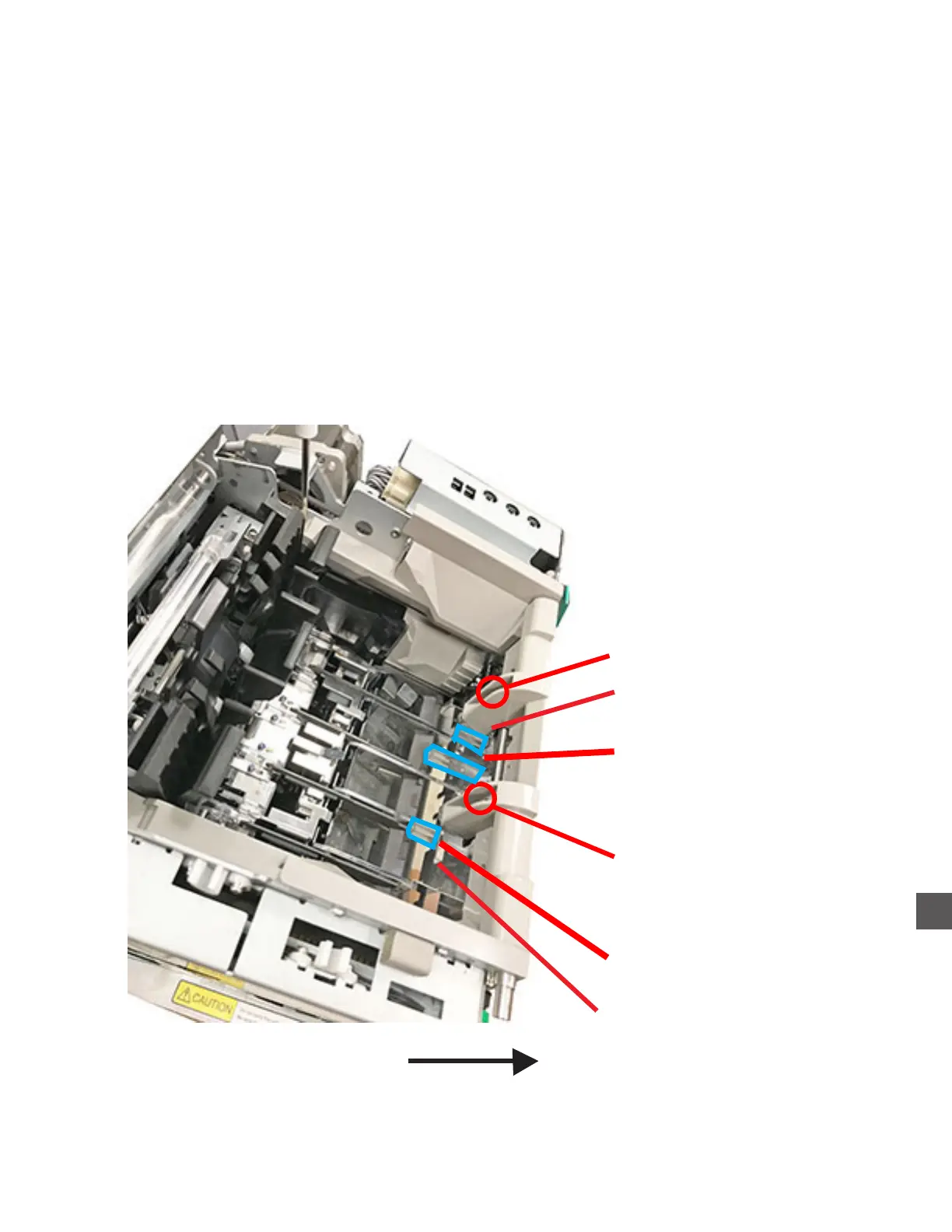

Note Collection Area
#4 Media Entry Sensor
Front of unit
#4 Media Entry Sensor
#5 FRONT Acrylic Lens Bars (2)
#5 FRONT Acrylic Lens Bars (2)
#3 Vacuum entire note insertion area
#6 FRONT Acrylic Sensor
#6 FRONT Acrylic Sensor
