Escrow Module
(A) Escrow Module - B14 Door
1) Rotate the Packer Plate knob fully CW
2) Open the B15 Collection Area Door on
the Escrow Module
3) Vacuum and wipe all surfaces inside
the collection area
4) Rotate the Packer Plate knob fully CCW
5) Vacuum and wipe all surfaces inside
the collection area
#35 - Acrylic Sensor Plate
(B) Escrow Module - Collection Area Door

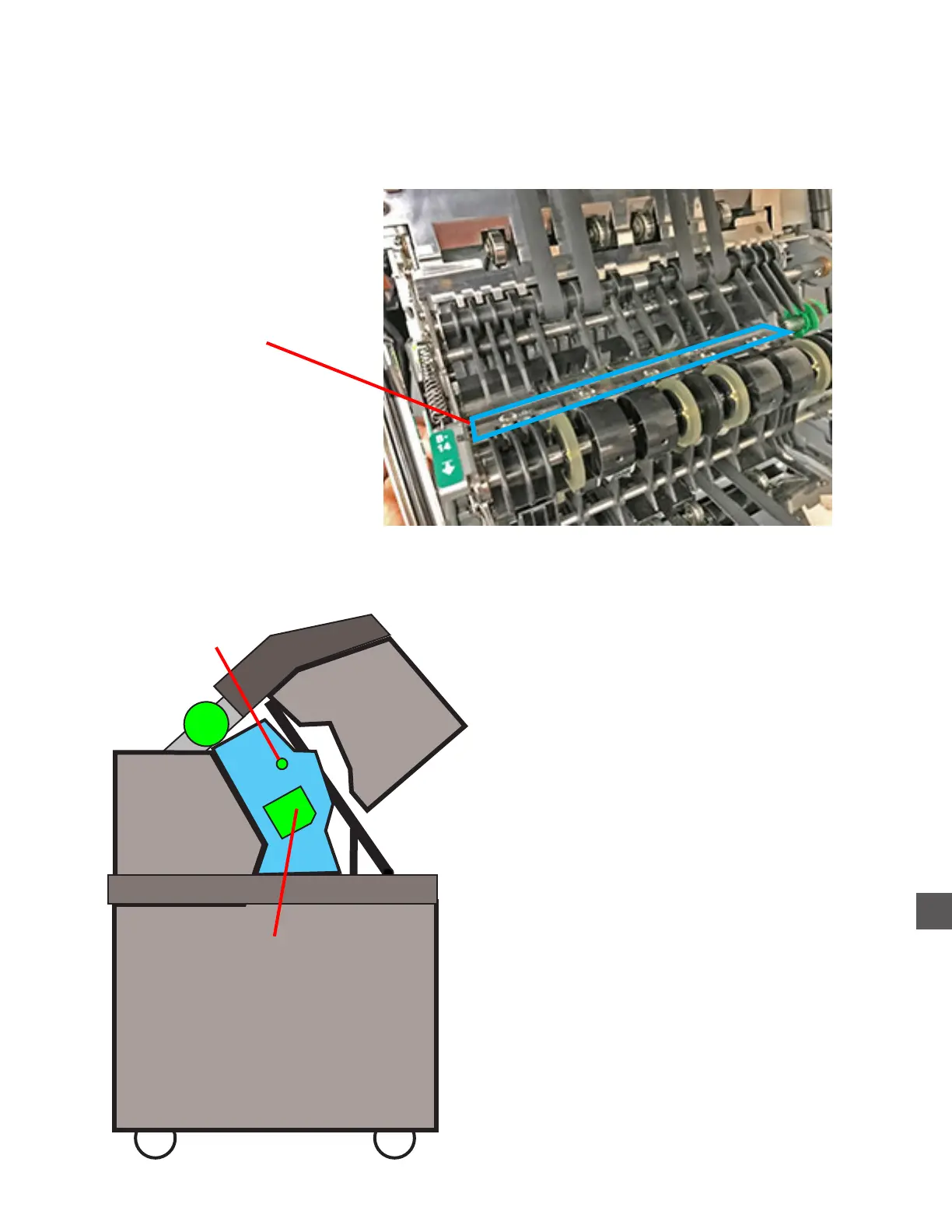

#34 - Push the B14 door toward the front of the unit and vacuum the entire Feed Path area
#36 - Collection Area
Collection Area Door
Packer Plate Knob
