IBM TS3310 User Manual

Replacing the Y Motor on the Y-axis/Picker Assembly in a
Rack-mounted Library
Tools Required:
v Flashlight
v Small flat blade screwdriver

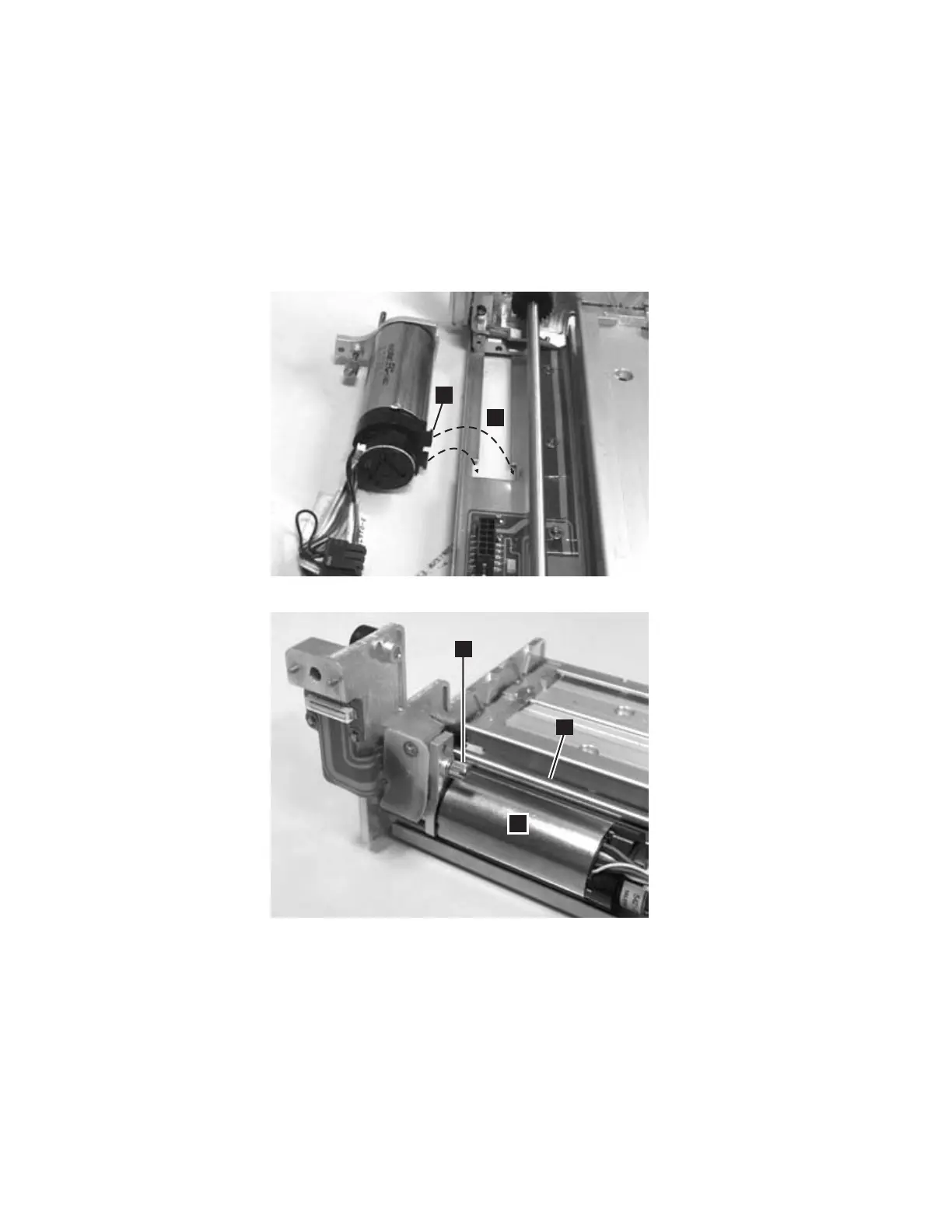

1. Ensure that the black plastic piece on the wiring end of the motor (1 in
Figure 8-68) fits into the slot in the base plate (2 in Figure 8-68).
When the thumb screw (3 in Figure 8-68) is tightened, the top of the motor
(4 in Figure 8-68) must be parallel with the Picker guide rod (5 in
Figure 8-68).
2. Install the Y Motor in the Y-axis/Picker Assembly and tighten the thumb screw.
The small gear on the Y Motor must connect with the larger gear on the
Y-axis/Picker Assembly.
3. Connect the small white connector (2 in Figure 8-69 on page 8-67).
Important: Be very careful not to damage the connector.
a66mi006
1
2
3
4
5
Figure 8-68. Correct Y motor position
8-66 TS3310 Tape Library Maintenance Information

IBM TS3310 Specifications

General

Form Factor	Rack-mountable
Tape Technology	LTO Ultrium
Product Type	Tape Library
Interface	Fibre Channel
Expansion	Expandable with additional modules
Supported Tape Technology	LTO Ultrium 5, LTO Ultrium 6
Weight	120 lb (54.4 kg) (fully configured)
Power Supply	Dual redundant power supplies
Operating Temperature	41°F to 95°F (5°C to 35°C)
Non-operating Temperature	-40°F to 140°F (-40°C to 60°C)
Humidity	20% to 80% non-condensing
