14-43

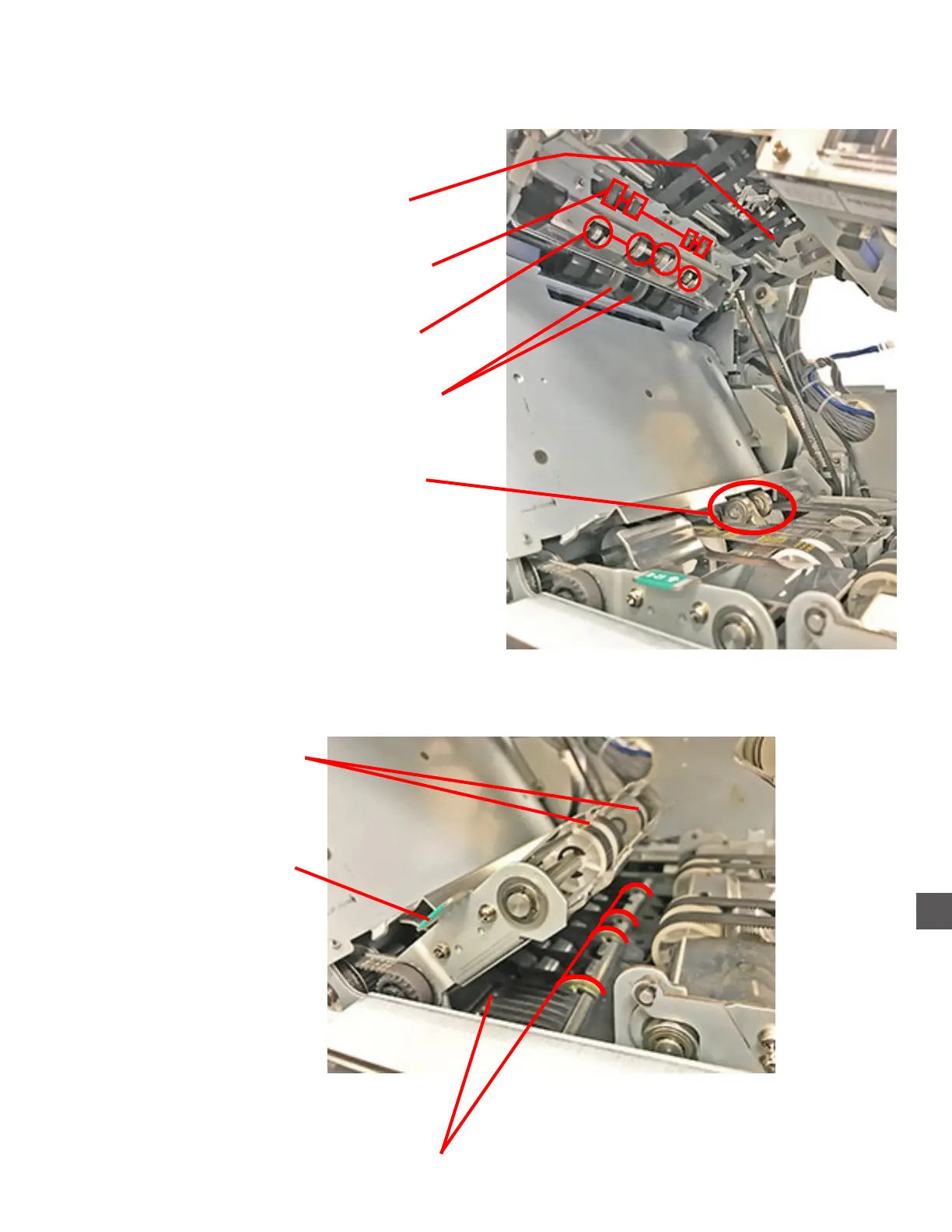

Bill Validator Cavity

#52 Vacuum, then wipe the entire

Bill Validator Cavity area

#55 Metal Rollers (6 total)

#54 Rubber Rollers (6) total

#53 Upper Belts

#58 Rubber Rollers

#57 Rear Transport Belts

B23 Transport Door Handle

#56 - Lift the B23 door and vacuum entire rear transport area

(D) Rear Transport

#54 Rubber Rollers (6) total

#55 Metal Rollers (6 total)
