14-44
14

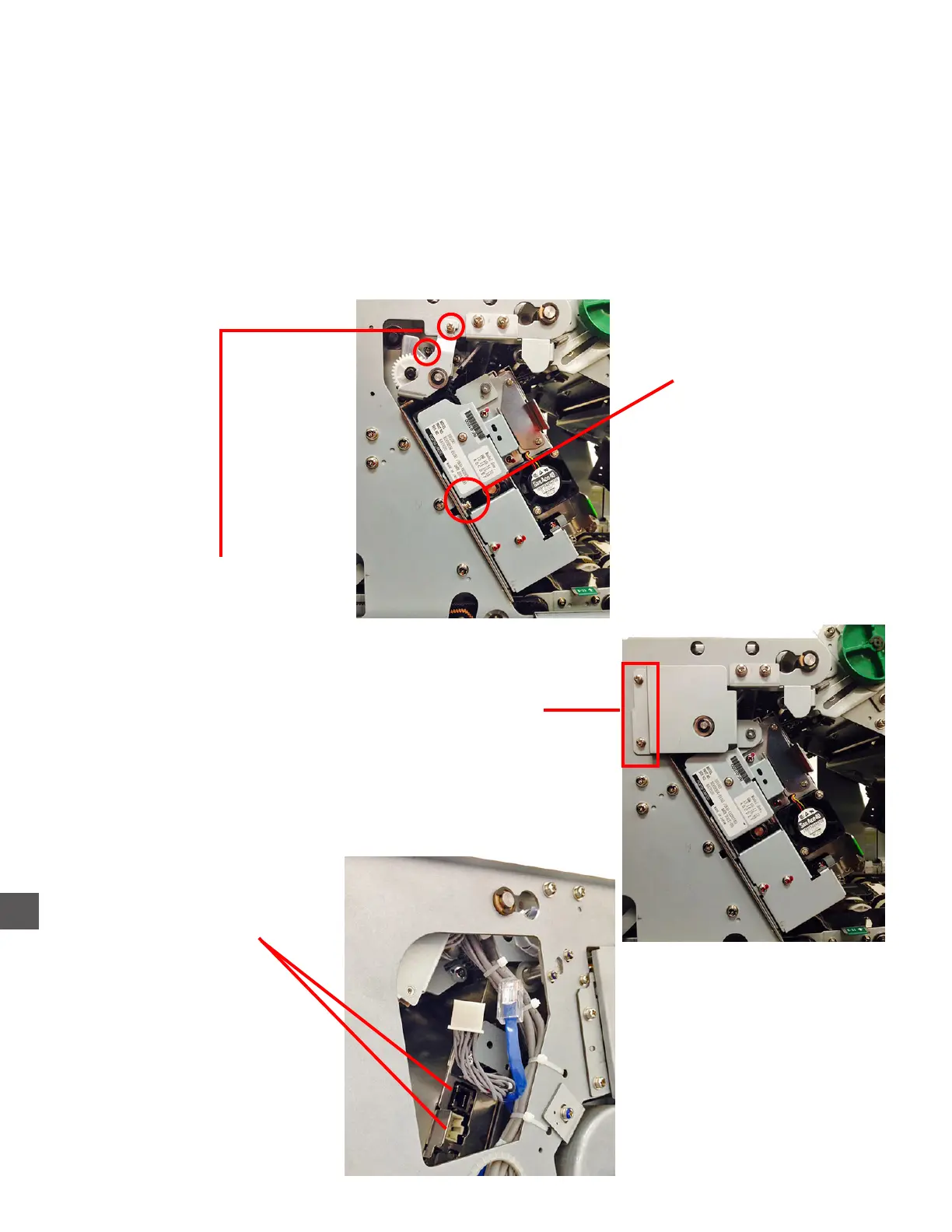

Bill Validator
Re-install
1) Close the Bill Validator
2) Facing the unit, insert the Bill Acceptor from the left side, with power and data cable
connections toward the right side.
NOTE: The Note Recycler Frame has “guide pins” to insure the Bill Vaildator is properly
placed - insure the Bill Validator engages the pins.
If installed correctly, the Bill Validator will not move, even when securing screws are
not installed.
3) Install the securing screw.
4) Rotate the gear bracket
fully clockwise and tighten
the securing screws.
5) Install the gear coverplate and secure it
with the (2) phillips head screws.
Note Recycler right side
Note Recycler
left side
6) Connect the Bill
Validator Power
and Data cables.
To Next Page
