Tidel TR303 - Page 447

To Next Page

To Previous Page

14-45

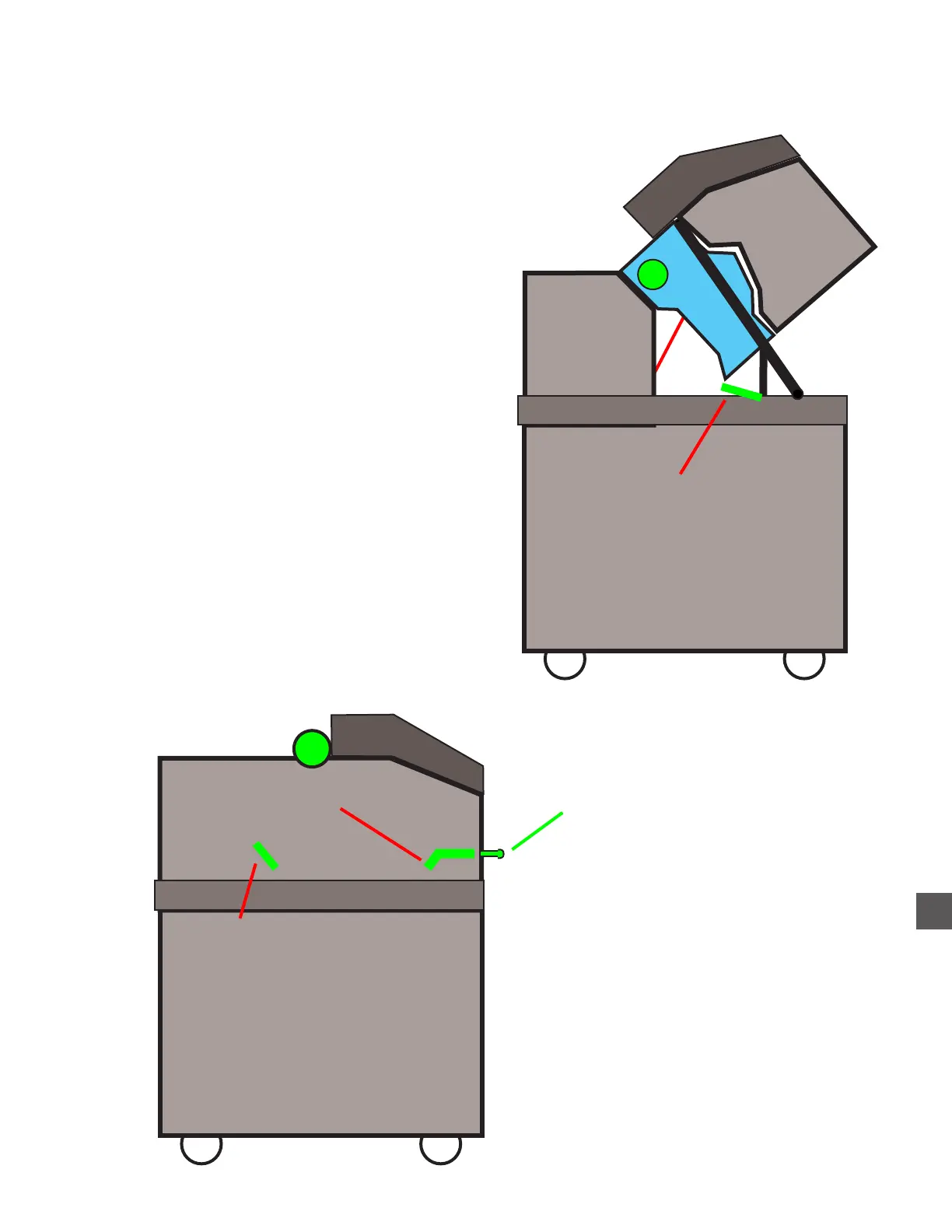

1) Lift the Feed Module slightly.

2) Press down on the B12a Lever.

3) Gently lower the Feed/Escrow Module to

the operating position.

4) Tighten the B8 set screw (do not

overtighten).

B8 set screw

B13 Handle

Knob B6

Escrow

Shock Prop

Lever B12a

Feeed Module/Escrow Module Placement

Lever B8
