DESCRIPTION
N·m
Ft.
Lbs.
In.
Lbs.
Oil Pan
—M6 Bolts 12 — 105
—M8 Bolts 28 — 250
Oil Pan Drain Plug 35 25 —
Oil Filter 20 15 —
Oil Pump to Block—Bolts 28 — 250
Oil Pump Cover—Bolts 12 — 105
Oil Pump Pick Up Tube—Bolt 28 — 250
PCV Valve 7 — 60
Crankshaft Rear Seal Retainer 12 — 105
Rocker Shaft Pedestal Retaining—
Bolts
31 — 275
Spark Plugs 28 20 —
Structural Collar Refer to
Procedure
Thermostat Housing/Water Inlet
Connector—Bolts
12 — 105
Throttle Body—Bolts 12 — 105
Timing Belt Tensioner—Bolts 28 — 250
Timing Belt Tensioner Pulley
Assembly—Bolt
61 45 —
Timing Belt Cover
—M6 Bolts 12 — 105
—M8 Bolts 28 — 250
—M10 Bolts 54 40 —
Water Pump—Bolts 12 — 105
Water Outlet Bleed—Screw 8 — 70

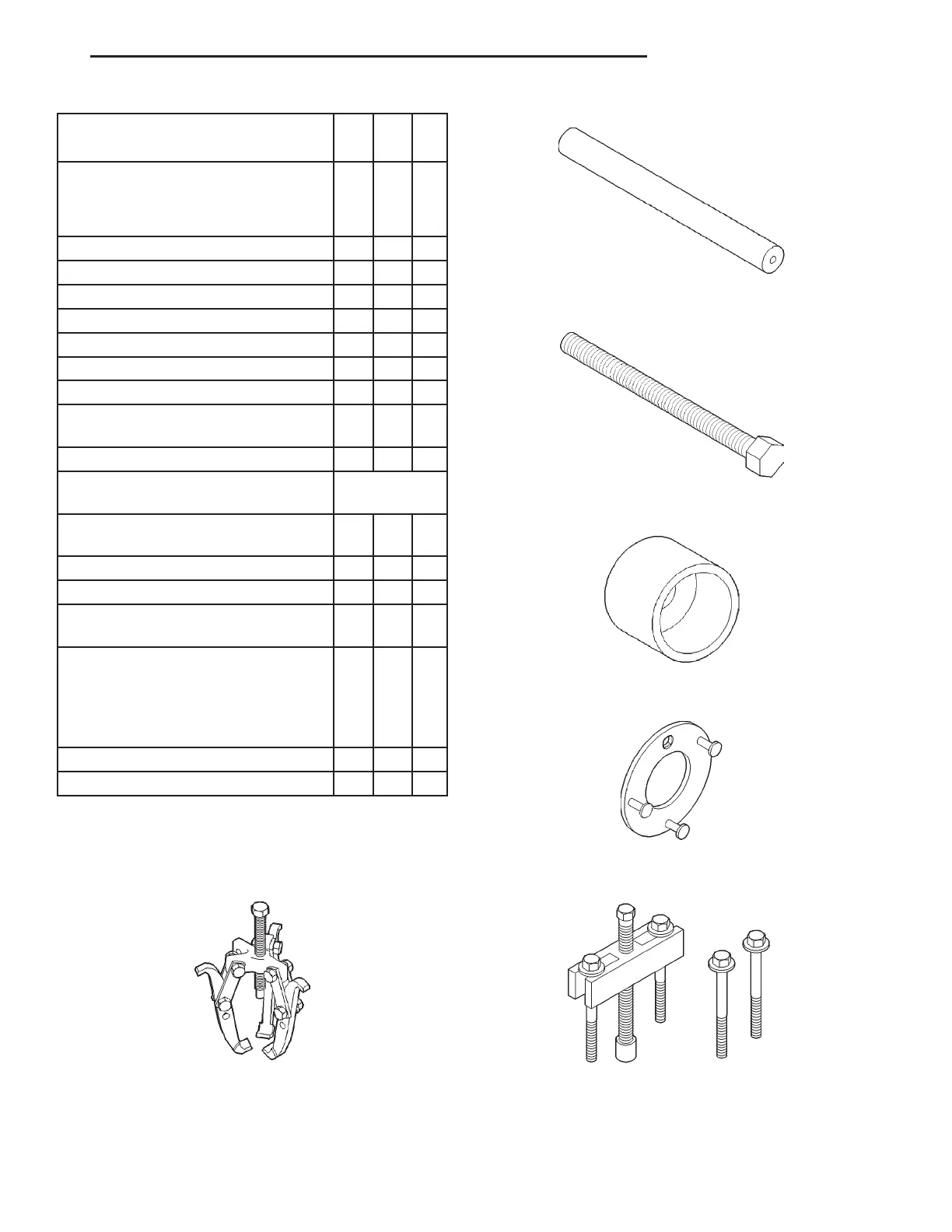

SPECIAL TOOLS
3.2/3.5L ENGINE
Puller Damper 1023
Crankshaft Damper Remover Insert C-4685-C2
Crankshaft Damper Installer Bolt C-4685-C1
Crankshaft Damper Installer 6792-1
Crankshaft Damper Holder 8191
Crankshaft Sprocket Puller L-4407A
LH 3.2/3.5L ENGINE 9 - 149
