REMOVAL AND INSTALLATION
FRONT DOOR SPEAKERS
CAUTION: Do not operate the radio with speaker
leads detached. Damage to the output devices may
result.
REMOVAL - 6.5 INCH LOWER DOOR MOUNTED
SPEAKERS
(1) Open hood and disconnect the negative battery
cable remote terminal from the remote battery post
(Fig. 6).
(2) Open drivers door.
(3) Using a trim stick (special tool #C-4755), care-
fully pry speaker grille away from door trim panel
(Fig. 7).
(4) Remove three speaker retaining screws.
(5) Pull speaker away from door and disconnect
wiring.
INSTALLATION
For installation, reverse the above procedures.
REMOVAL - 2.5 INCH LOWER FRONT WINDOW
CORNER SPEAKERS (INFINITY and MIDLINE)
(1) Open hood and disconnect the negative battery
cable remote terminal from the remote battery post
(Fig. 6).
(2) Open drivers door.
(3) Remove two speaker enclosure attachment
screws holding the enclosure ring and grill to the
door (Fig. 7).
(4) Remove two speaker retaining screws.
(5) Pull speaker away from door and disconnect
wiring.
INSTALLATION
For installation, reverse the above procedures.
FIXED MAST ANTENNA (INTREPID ONLY)
REMOVE
(1) Open hood and disconnect the negative battery
cable remote terminal from the remote battery post
(Fig. 6).
(2) Inside trunk, pull passenger side trunk liner
aside.
(3) Unplug antenna lead from base of antenna
mast.
(4) Remove antenna mast by unscrewing mast
from antenna body.
(5) Remove screw from mounting bracket.
(6) Pull antenna body down through the rubber
grommet.
INSTALLATION
For installation, reverse the above procedures.

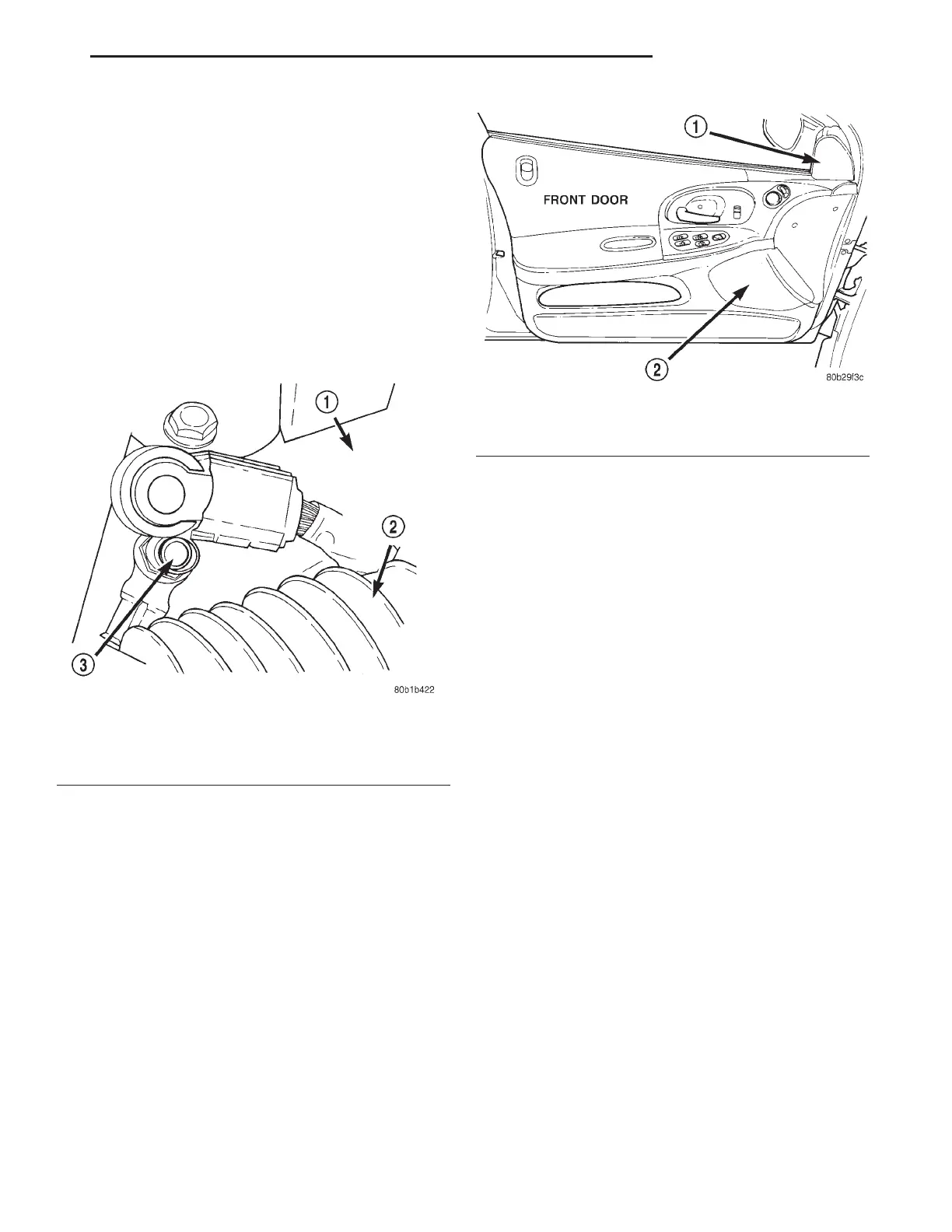

Fig. 6 Negative Battery Cable Remote Terminal
1 – RIGHT STRUT TOWER
2 – AIR CLEANER INLET TUBE
3 – REMOTE TERMINAL
Fig. 7 Front Door Speakers
1 – INFINITY SPEAKERS
2 – DOOR SPEAKER
LH AUDIO SYSTEMS 8F - 17
