(17) Disconnect the drain tubes from sunroof hous-
ing (Fig. 5).
(18) Loosen fasteners attaching sunroof housing
assembly.
(19) With the aid of a helper, remove fasteners
attaching sunroof housing assembly to roof panel.
INSTALLATION
(1) With the Glass panel in the fully closed posi-
tion.
(2) With the aid of a helper, raise rear end of sun-
roof housing assembly and guide into position and
start fasteners.
(3) Tighten the fasteners attaching the sunroof
module to roof panel. Tighten the fasteners to 8.5 to
9 N·m (75 to 80 in. lbs.) torque.
(4) Connect the drain tubes to the sunroof housing.
(5) With the aid of a helper move the headliner
through the rear door into position.
(6) Engage headliner rear locating clip.
(7) Connect sunroof harness connector at the
C-post.
(8) Connect wire harness connector along A-post to
fuse panel.
(9) Connect mirror wiring connector.
(10) Connect wire harness connector along A-post
to fuse panel.
(11) Connect battery negative cable.
(12) Move both front seats into proper position.
(13) Test sunroof operation, adjust as necessary.
(14) Finish installing the headliner. Ensure that
door weatherstrips are in position.
(15) Install right and left C-post trim panels par-
tially.
(16) Install rear right and left grab handle/lamps
and let hang from headliner.
(17) Install right and left upper B-post trim pan-
els.
(18) Install front passenger grab handle.
(19) Install over head console let hang from head-
liner.
(20) Install right and left sun visors, and sun
visors retainers.
(21) Install right and left A-post trim panels.
(22) Remove instrument panel end caps right and
left side.
SUNROOF SUNSHADE
REMOVAL
(1) Open sunroof approximately 90% of the way.
(2) Push sunshade down until tabs clear glass.
(3) Move sunshade forward of glass panel.
(4) Using a flat blade tool, remove front guide
blocks from track. By pushing block toward the cen-
ter of the vehicle (Fig. 6).

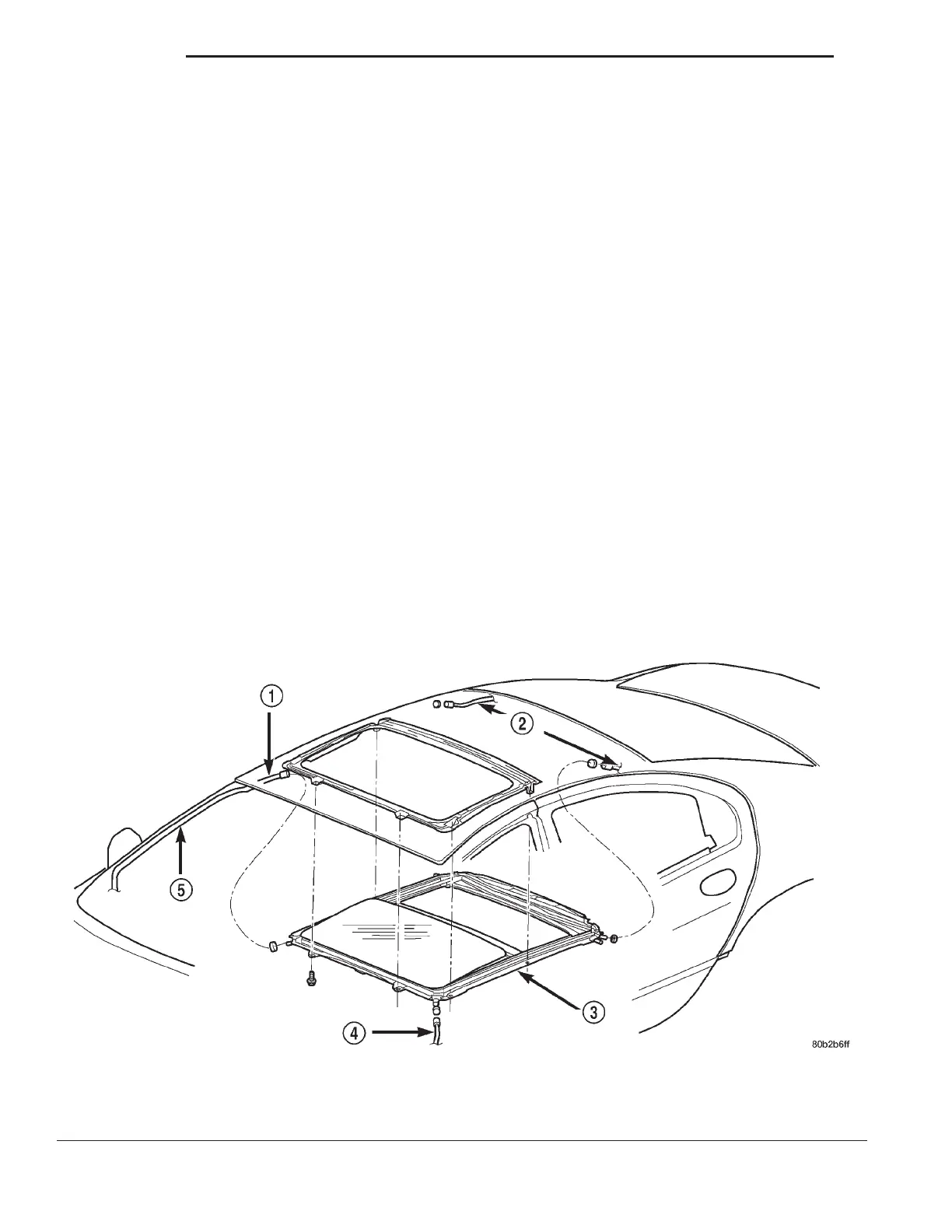

Fig. 5 Sunroof Housing Assembly Removal
1 DRAIN HOSE
2 DRAIN HOSE
3 SUN ROOF FRAME ASSEMBLY
4 DRAIN HOSE
5 A-PILLAR
23 - 26 BODY LH
REMOVAL AND INSTALLATION (Continued)
