(11) Remove the wiring harness connector from the
trunk release switch in the lower instrument panel
cover (Fig. 72).
(12) Remove the park brake release cable, from
the park brake release handle in the lower instru-
ment panel cover (Fig. 73).
(13) Remove the 4 bolts mounting the reinforce-
ment (Fig. 74) to the instrument panel. Remove the
reinforcement from the instrument panel. Remove
the diagnostic connector from the reinforcement.
(14) Remove the lower A/C duct below the steering
column. It is secured with 1 screw.
(15) Remove the 2 lower mounting screws securing
fuse junction block bracket to instrument panel end
housing (Fig. 75).
(16) Remove the 2 screws securing fuse junction
block upper edge to the instrument panel bracket.
These screws are installed from above the right side
of the fuse junction block and mount to the left.
(17) Remove the dome lamp wiring harness con-
nector from the fuse junction block (Fig. 75).
(18) Move fuse junction block as far down and to
the right as possible without causing damage to the
harness or fuse junction block.
(19) Remove left rear door opening sill cover.

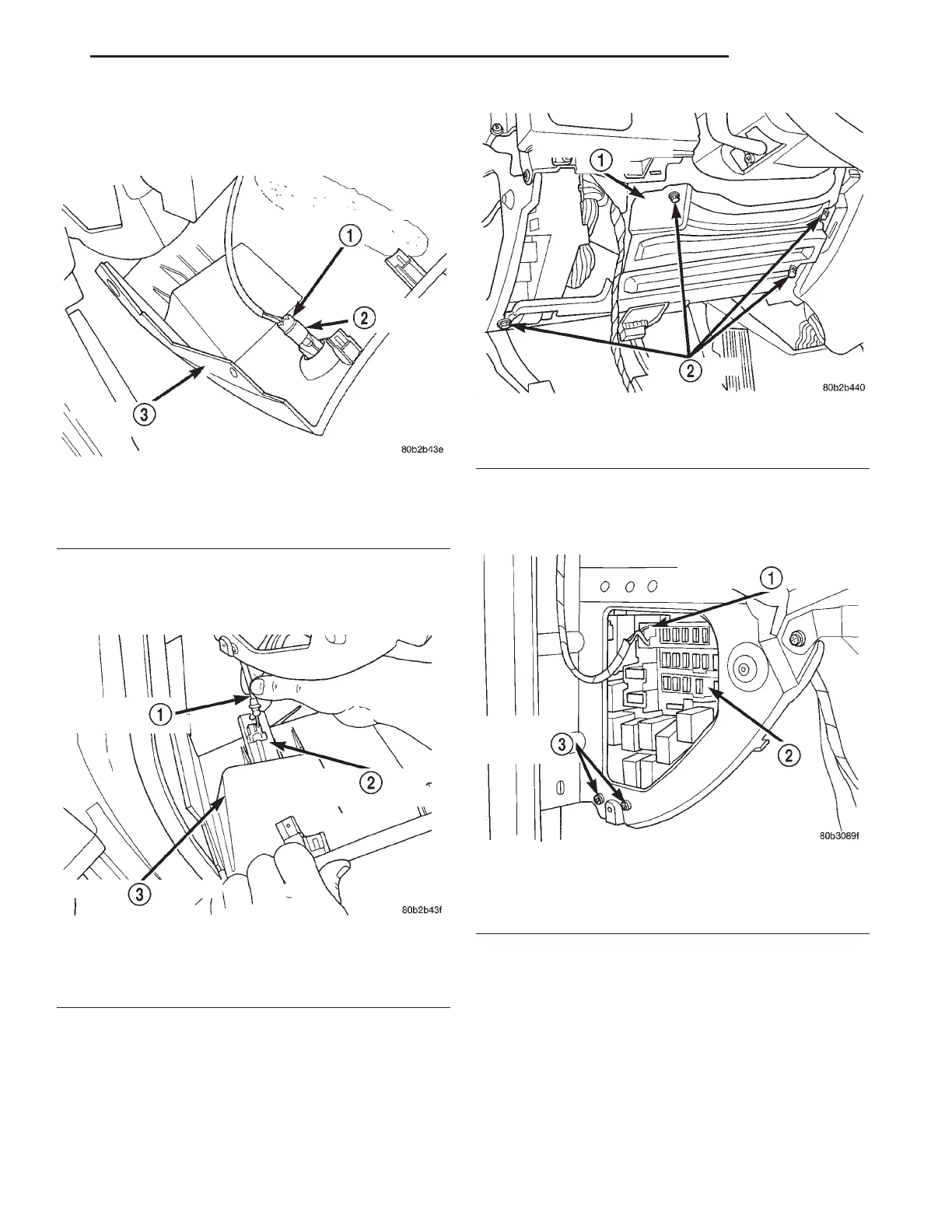

Fig. 72 Trunk Release Wiring
1 – WIRING HARNESS CONNECTOR
2 – TRUNK RELEASE SWITCH
3 – LOWER INSTRUMENT PANEL COVER
Fig. 73 Park Brake Release Cable
1 – PARK BRAKE RELEASE CABLE
2 – PARK BRAKE RELEASE HANDLE
3 – LOWER INSTRUMENT PANEL COVER
Fig. 74 Reinforcement Panel
1 – REINFORCEMENT PANEL
2 – MOUNTING BOLTS
Fig. 75 Fuse Junction Block
1 – DOME LAMP WIRING HARNESS CONNECTOR
2 – FUSE JUNCTION BLOCK
3 – LOWER MOUNTING SCREWS
LH BRAKES 5 - 39
REMOVAL AND INSTALLATION (Continued)
