SEAT AIRBAG WIRE HARNESS
DESCRIPTION
The seat airbag wire harness is used to make elec-
trical connection between the seat back mounted air-
bag and the seat wire harness. Refer to Group 8W,
Wiring Diagrams for more information.
CLOCKSPRING
DESCRIPTION
The clockspring is mounted to the steering column
behind the steering wheel. The clockspring is used to
maintain a continuous electrical circuit between the
wiring harness and the:
• Driver’s airbag module
• Speed control switches
• Horn switch
OPERATION
The clockspring consists of a flat, ribbon like, elec-
trically conductive tape which winds and unwinds
with the steering wheel rotation.
DRIVER AIRBAG MODULE
WARNING: NEVER DISASSEMBLE THE DRIVER/
PASSENGER AIRBAG MODULES, THERE ARE NO
SERVICEABLE PARTS WITHIN THE MODULES.
DESCRIPTION
OPERATION
The driver side inflator assembly is mounted from
the back of the module housing. When supplied with
the proper electrical signal the inflator assembly will
produce a gas and discharge it directly into the cush-
ion. A protective cover is fitted to the front of the
Driver Airbag Module and forms a decorative cover
in the center of the steering wheel. This cover incor-
porates the integral horn switch. The driver airbag
module is mounted directly to the steering wheel.
1 – FRONT SEAT BACK PANEL
2 – LEFT SEAT AIRBAG MODULE
3 – HOLE PROVIDED IN SEAT BACK FOAM FOR SEAT AIRBAG
MODULE
4 – SIDE AIRBAG MODULE NYLON SLEEVE
5 – SEAT BACK TRIM COVERS
6 – SEAT BACK CUSHIONS
7 – SEAT BACK FRAMES
8 – RIGHT SEAT AIRBAG MODULE

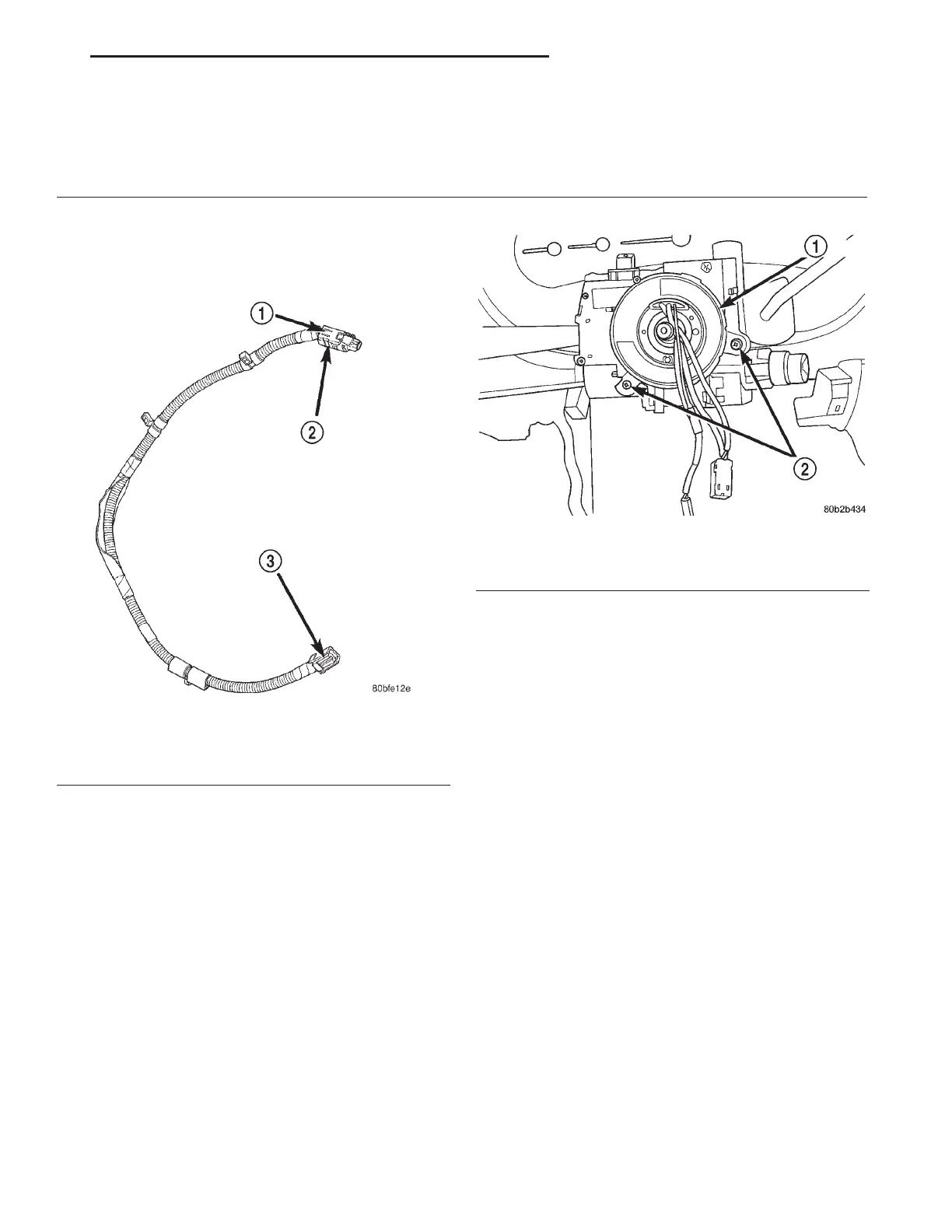

Fig. 6 Front Seat Airbag Wire Harness
1 – YELLOW CONNECTOR LOCK
2 – TO AIRBAG MODULE
3 – TO SEAT HARNESS
Fig. 7 Clockspring Location
1 – CLOCKSPRING
2 – MOUNTING SCREWS
LH PASSIVE RESTRAINT SYSTEMS 8M - 7
DESCRIPTION AND OPERATION (Continued)
2000 LHS, 300M, CONCORDE AND INTREPID
