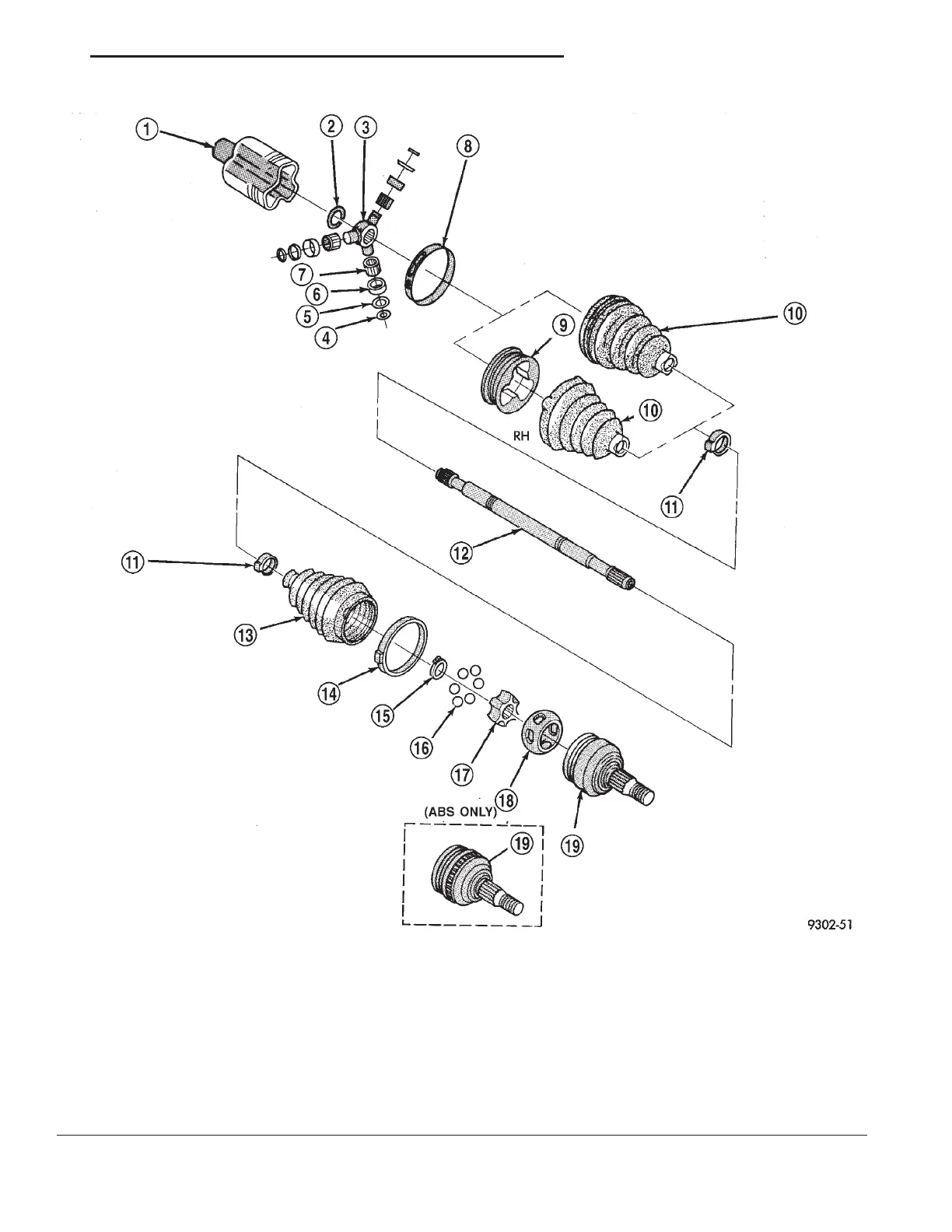

Fig. 2 Driveshaft Component Identification
1 – HOUSING ASM, RETAINER &
2 – RING, SPACER
3 – SPIDER, TRIPOTD JOINT
4 – RING, RETAINING
5 – RETAINER, BALL & ROLLER
6 – BALL, TRIPOD JOINT
7 – ROLLER, NEEDLE
8 – CLAMP, SEAL RETAINING
9 – BUSHING, TRILOBAL TRIPOD
10 – SEAL, DRIVE AXLE INBOARD
11 – CLAMP, SEAL RETAINING
12 – SHAFT, AXLE (RH SHOWN, LH SIMILAR)
13 – SEAL, DRIVE AXLE OUTBOARD
14 – CLAMP, SEAL RETAINING
15 – RING, RACE RETAINING
16 – BALL, CHROME ALLOY
17 – RACE, C/V JOINT INNER
18 – CAGE, C/V JOINT
19 – RACE, C/V JOINT OUTER
LH DIFFERENTIAL AND DRIVELINE 3 - 3
DESCRIPTION AND OPERATION (Continued)
