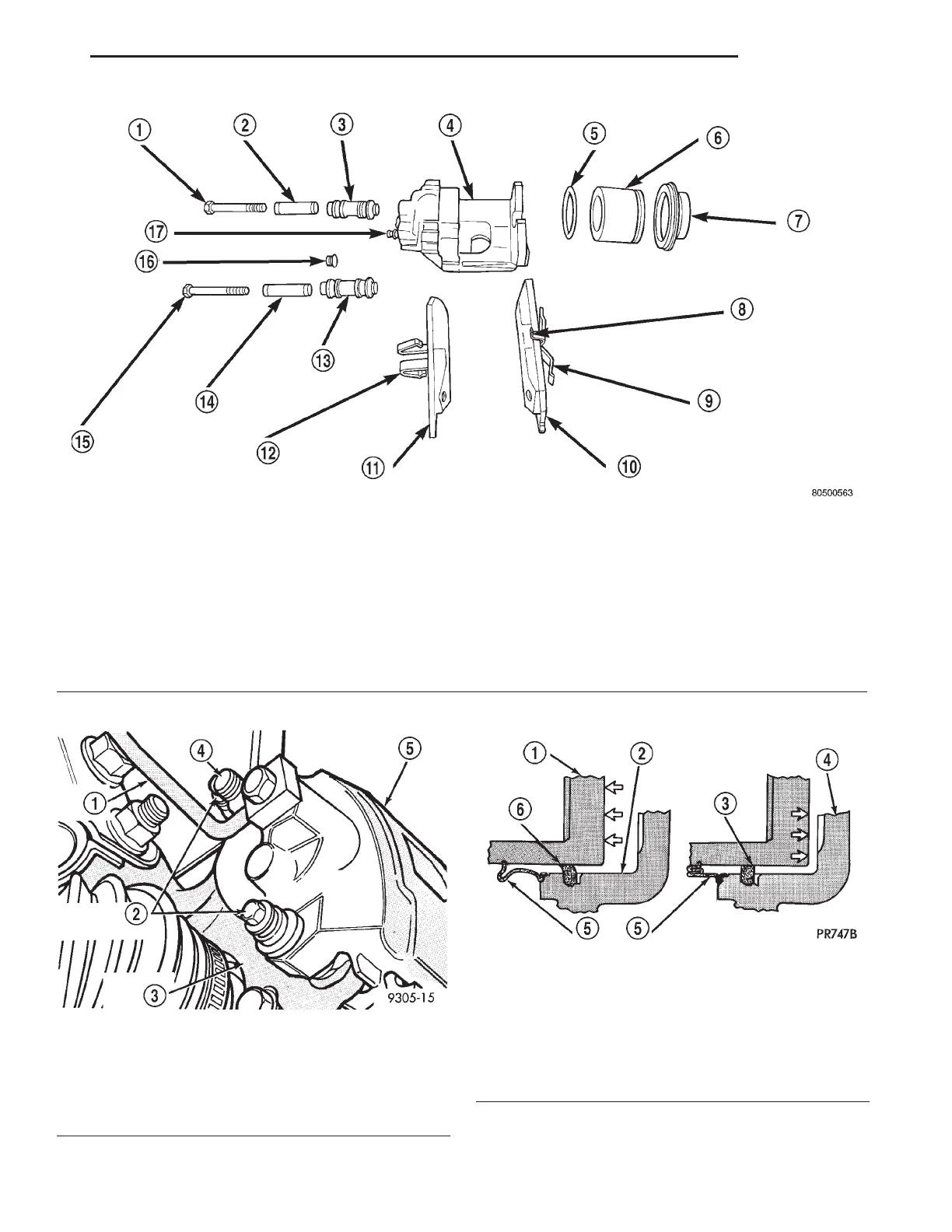

Fig. 8 Performance Front Disc Brake Caliper Assembly (BR5)
1 – CALIPER GUIDE PIN BOLT
2 – SLEEVE
3 – BUSHING
4 – CALIPER
5 – PISTON SEAL
6 – PISTON
7 – DUST SEAL
8 – WEAR INDICATOR
9 – ANTI-RATTLE CLIP
10 – BRAKE SHOE
11 – BRAKE SHOE
12 – ANTI-RATTLE CLIP
13 – BUSHING
14 – SLEEVE
15 – CALIPER GUIDE PIN BOLT
16 – CAP
17 – BLEEDER SCREW
Fig. 9 Disc Brake Caliper Mounting
1 – BRAKE LINE
2 – CALIPER GUIDE PIN BOLTS
3 – STEERING KNUCKLE
4 – BLEEDER SCREW
5 – CALIPER ASSEMBLY
Fig. 10 Piston Seal Function for Automatic
Adjustment Of Front Brakes
1 – PISTON
2 – CYLINDER BORE
3 – PISTON SEAL BRAKE PRESSURE OFF
4 – CALIPER HOUSING
5 – DUST BOOT
6 – PISTON SEAL BRAKE PRESSURE ON
LH BRAKES 5 - 7
DESCRIPTION AND OPERATION (Continued)
