(2) Reach up through the front fascia and rotate
the bulb socket.
(3) Pull the bulb socket from the lamp housing
(Fig. 4).
(4) Pull the bulb from the socket.
Installation
(1) Push the bulb into the socket.
(2) Install the socket into the lamp housing.
(3) Install the fog lamp assembly.
CITY LAMP BULB
REMOVAL
(1) Remove the headlamp assembly. Refer to the
Headlamp Assembly removal and Installation proce-
dure in this group.
(2) Twist and remove the city lamp socket from the
headlamp assembly (Fig. 5).

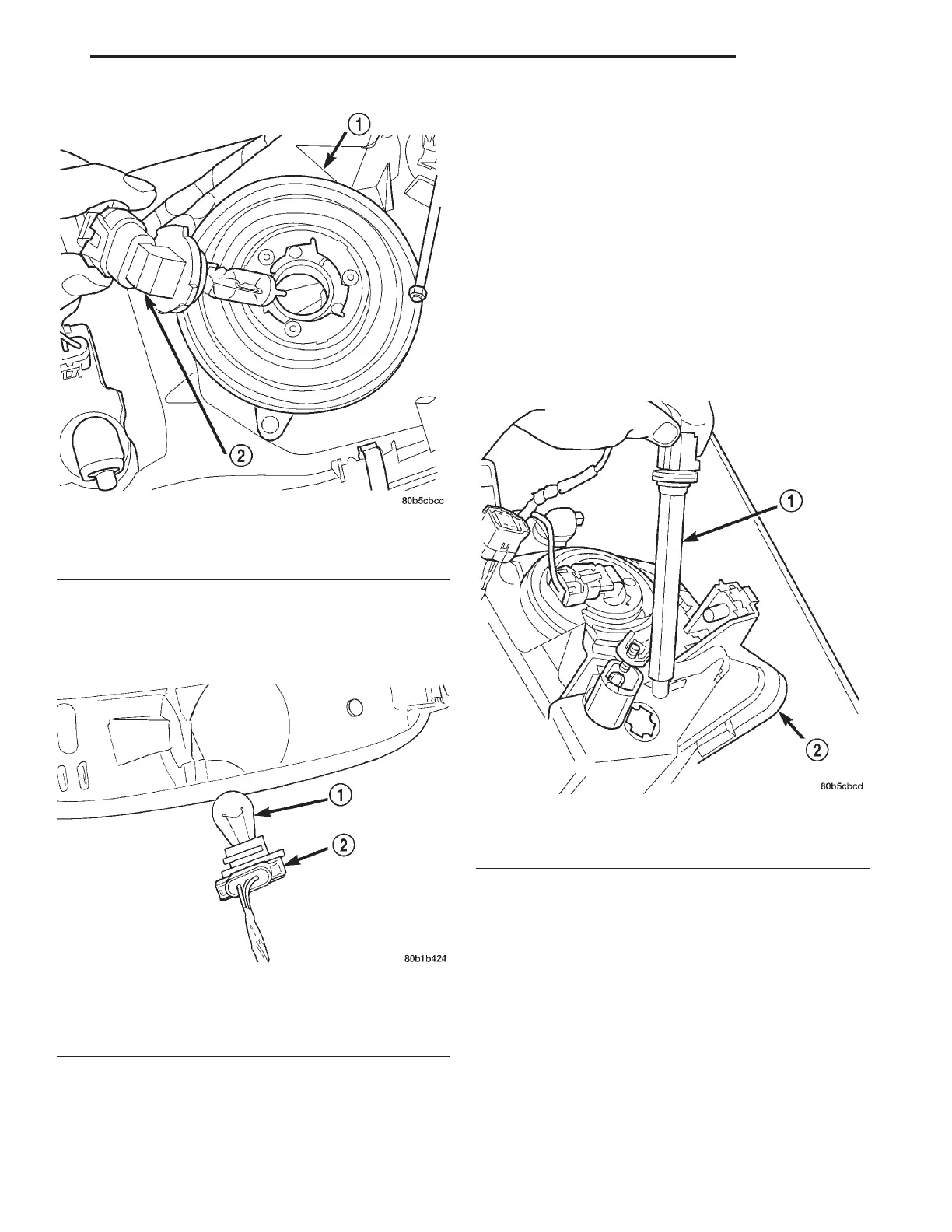

Fig. 3 Headlamp Bulb
1 – HEADLAMP ASSEMBLY
2 – HEADLAMP BULB
Fig. 4 Front Parking, Side Marker, and Turn Signal
Lamp Bulb
1 – BULB
2 – SOCKET
Fig. 5 City Lamp Housing
1 – CITY LAMP SOCKET HOUSING
2 – HEADLAMP ASSEMBLY
LH LAMPS 8L - 9
REMOVAL AND INSTALLATION (Continued)
2000 LHS, 300M, CONCORDE AND INTREPID
