BRAKE FASTENER TORQUE SPECIFICATIONS
DESCRIPTION TORQUE
BRAKE TUBES:
Tube Nuts .............. 17N·m(145 in. lbs.)
BRAKE HOSE:
Caliper Banjo Bolt ......... 48N·m(35ft.lbs.)
Intermediate Bracket ..... 12N·m(105 in. lbs.)
MASTER CYLINDER:
Mounting Nuts .......... 28N·m(250 in. lbs.)
BRAKE BOOSTER:
Dash Panel Mounting Nuts . 28 N·m (250 in. lbs.)
JUNCTION BLOCK (NON-ABS BRAKES)
Support Bracket Bolts ..... 26N·m(230 in. lbs.)
DISC BRAKE CALIPER:
Guide Pin Bolts .......... 22N·m(192 in. lbs.)
Bleeder Screw ........... 15N·m(125 in. lbs.)
ABS INTEGRATED CONTROL UNIT (ICU):
Mounting Bracket Bolts .... 11N·m(97in.lbs.)
Mounting Bracket To Frame Bolts ...... 26N·m
(230 in. lbs.)
CAB To HCU Screws........ 2N·m(17in.lbs.)
PARKING BRAKE:
Lever Assembly Mounting Bolts ....... 28N·m
(250 in. lbs.)
REAR HUB AND BEARING:
Spindle Retaining Nut .... 168N·m(124 ft. lbs.)
WHEEL:
Mounting Nut .... 110–135 N·m (85–115 ft. lbs.)

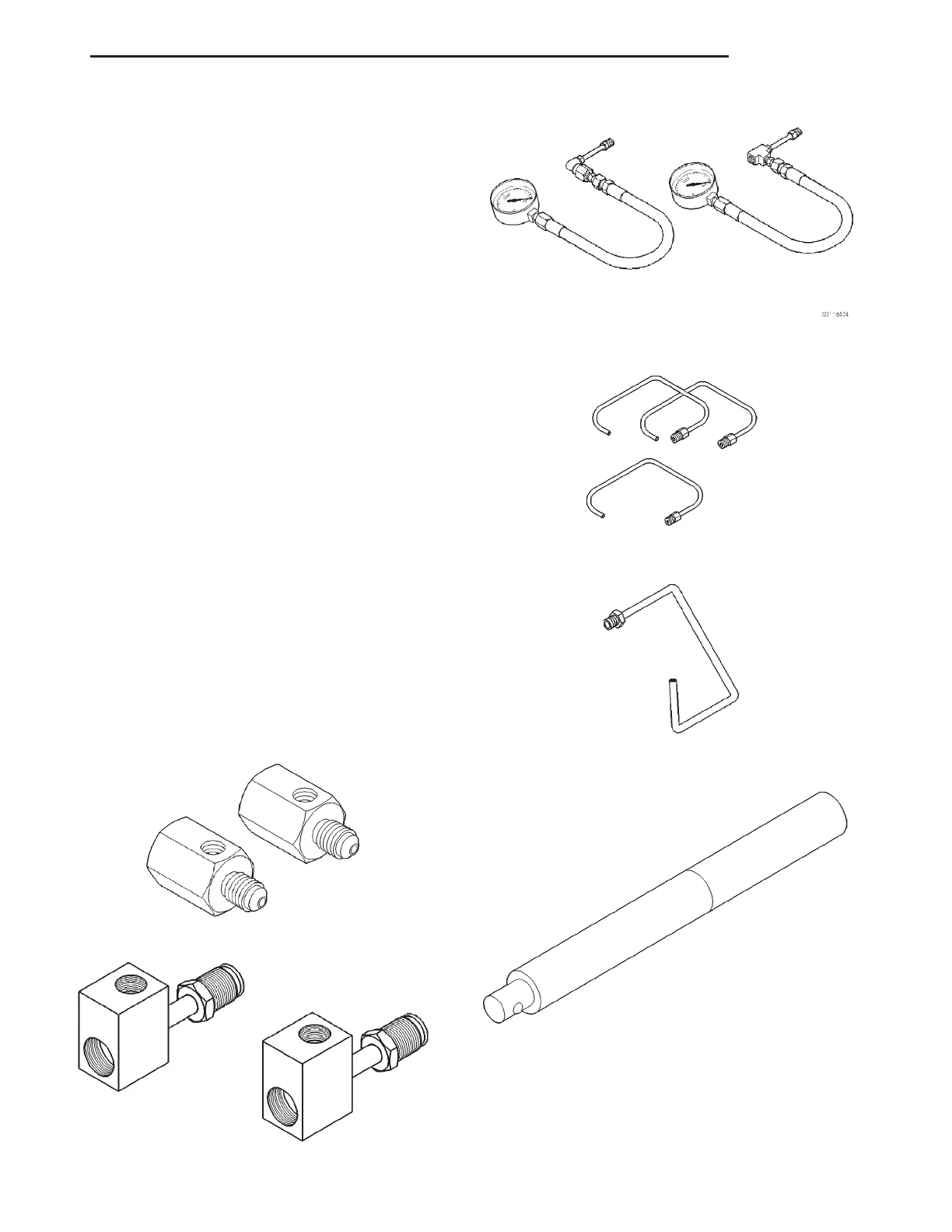

SPECIAL TOOLS
BASE BRAKE SYSTEM
Adapters, Brake Pressure Test 6892
Adapters, Brake Pressure Test 8187
Gauge Set C-4007-A
Master Cylinder Bleed Tube 8129
Master Cylinder Bleed Tube 8305
Handle, Universal C-4171
