OPERATION
The purpose of the brake fluid level switch is to
provide the driver with early warning that brake
fluid in the master cylinder is below a normal level.

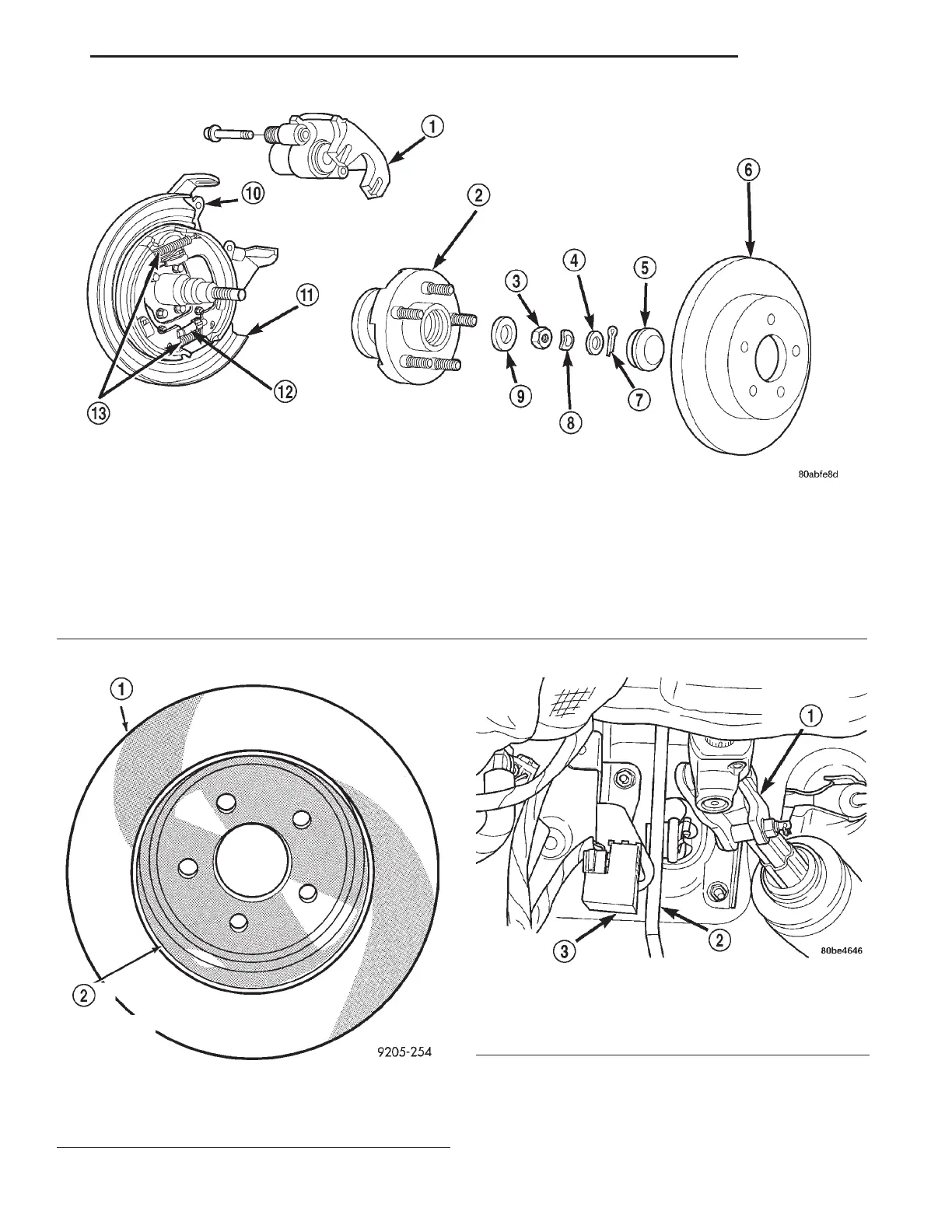

Fig. 11 Rear Disc Brake Assembly
1 – CALIPER ASSEMBLY
2 – HUB/BEARING ASSEMBLY
3 – NUT
4 – NUT LOCK
5 – DUST CAP
6 – DISC
7 – COTTER PIN
8 – ANTI-RATTLE WASHER
9 – WASHER
10 – ADAPTER
11 – DISC SHIELD
12 – ADJUSTER
13 – RETURN SPRINGS
Fig. 12 Drum In Hat Braking Disc
1 – REAR BRAKING DISK ROTOR
2 – HAT SECTION OF REAR BRAKING DISC (PARKING BRAKE
BRAKING SURFACE)
Fig. 13 Brake Lamp Switch
1 – STEERING COLUMN COUPLER
2 – BRAKE PEDAL
3 – SWITCH
LH BRAKES 5 - 9
DESCRIPTION AND OPERATION (Continued)
