CAUTION: KEEP HANDS CLEAR OF CYCLING
WIPER MODULE LINKAGE.
WIPER LINK ARMS
There a two servicable link assemblies in the wiper
module. The Master Link connects the motor output
crank to the drivers side pivot. The Slave link con-
nects the driver side pivot to the passenger side
pivot. To service these links, remove the wiper mod-
ule from the vehicle.
The wiper module mounting grommets can be ser-
viced anytime the module is removed from the vehi-
cle. Replace module mounting grommets if they are
broken, cracked, deteriorated, or defective.
REMOVAL
(1) Open hood and disconnect the negative battery
cable remote terminal from the remote battery post.
(2) Remove wiper module from vehicle. Refer to
Wiper Module Removal and Installation in this sec-
tion.
(3) Disconnect wiper module slave link from pivot
levers by carefully using a ball and socket wedge. Do
not damage ball and socket or seal when using
wedge.
(4) Disconnect wiper module master link from
pivot lever and motor crank by carefully using a ball
and socket wedge. Do not damage ball and socket or
seal when using wedge.
(5) Remove module linkage mounting grommets.
NOTE: Grommet eyelet may need to be removed
from rubber isolator on rear inboard and forward
outboard mounting grommets only during disas-
sembly.
(6) Remove “U” nut from body (if necessary).
INSTALLATION
For installation, reverse the above procedures.
NOTE: When assembling master link or slave link
to module frame, use channel locks wrapped in
cloth to prevent damage to ball and socket joint.
Apply light pressure to assemble socket to ball.
WIPER MOTOR
The Wiper Module Assembly must be removed to
service the wiper motor.
REMOVAL
(1) Open hood and disconnect the negative battery
cable remote terminal from the remote battery post.
(2) Remove wiper module assembly. Refer to Wiper
Module Assembly Removal and Installation in this
section.
(3) Disconnect wiper module master link from
motor crank by carefully using a ball and socket
wedge. Do not damage ball and socket or seal when
using wedge.
(4) Remove three retaining bolts from wiper motor
(Fig. 19).
(5) Remove wiper motor from wiper module assem-
bly.
INSTALLATION
For installation, reverse the above procedures.

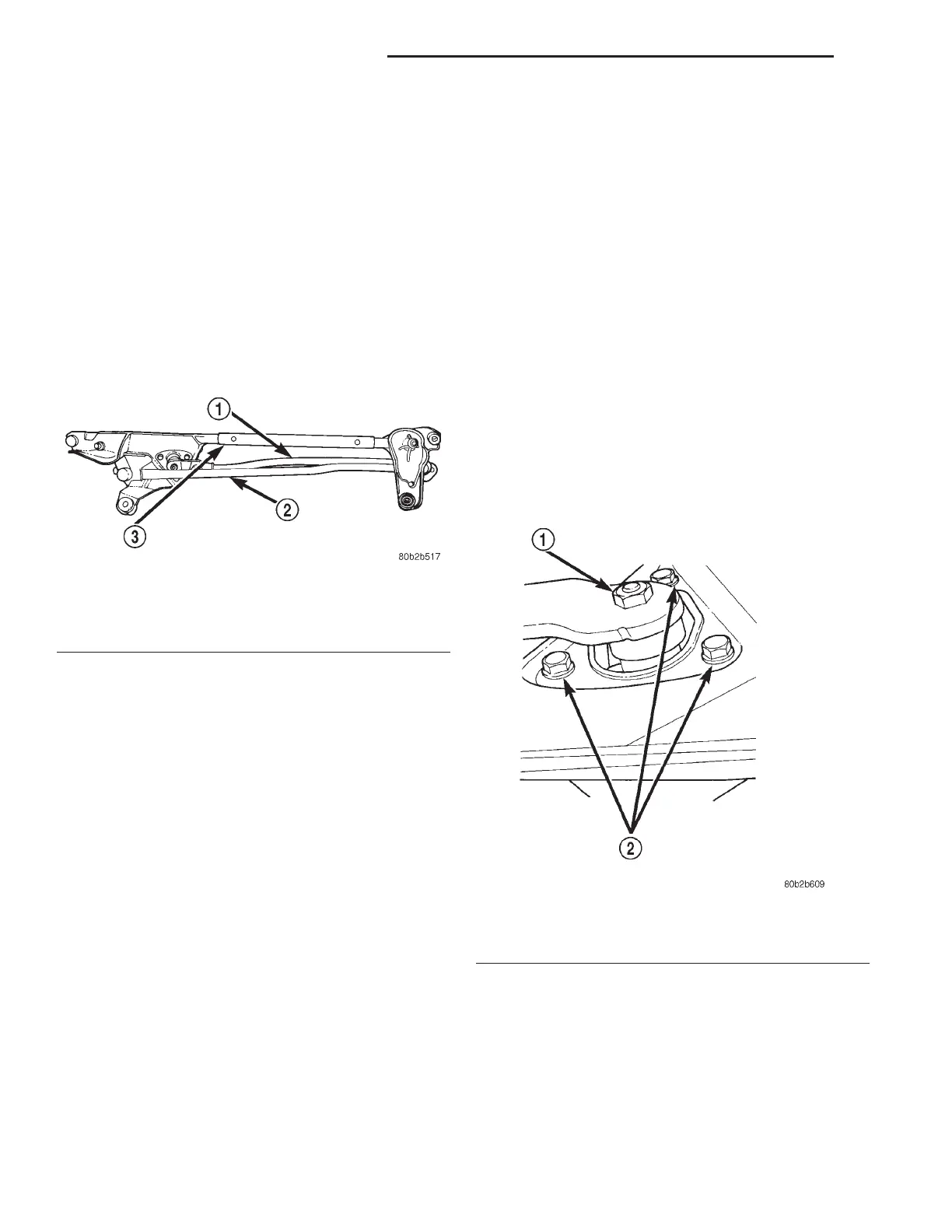

Fig. 18 Wiper Link Arms
1 – MASTER LINK ARM
2 – SLAVE LINK ARM
3 – WINDSHIELD WIPER FRAME ASSEMBLY
Fig. 19 Wiper Motor Retaining Bolts
1 – CRANK ARM NUT
2 – WIPER MOTOR RETAINING BOLTS
8K - 18 WIPER AND WASHER SYSTEMS LH
REMOVAL AND INSTALLATION (Continued)
