REMOTE KEYLESS ENTRY
TABLE OF CONTENTS
page page
DESCRIPTION AND OPERATION
REMOTE KEYLESS ENTRY (RKE) SYSTEM .....4
HORN CHIRP TOGGLE .....................4
DIAGNOSIS AND TESTING
REMOTE KEYLESS ENTRY (RKE) SYSTEM .....5
REMOTE KEYLESS ENTRY DIAGNOSIS ........5
SERVICE PROCEDURES
DECK LID RELEASE TOGGLE................5
HORN CHIRP TOGGLE .....................5
REMOVAL AND INSTALLATION
REMOTE KEYLESS ENTRY MODULE ..........6
ADJUSTMENTS
PROGRAMMING REMOTE KEYLESS ENTRY
TRANSMITTER(S)........................6
SPECIFICATIONS
TRANSMITTER BATTERY ...................7
TRANSMITTER RANGE .....................7
DESCRIPTION AND OPERATION
REMOTE KEYLESS ENTRY (RKE) SYSTEM
DESCRIPTION
The system allows locking and unlocking of vehicle
door(s), deck lid release, and panic by remote control
using a hand held radio frequency transmitter. The
vehicle must be in PARK before the trunk lid can be
unlatched with the transmitter.
The receiver may receive signals from up to four
transmitters. Each transmitter has its own code, and
the code is programmed and stored into receiver
memory. If a transmitter is replaced or additional
transmitters are added, the codes for all units have
to be reprogrammed into the receiver memory. If a
receiver module is replaced, the transmitter codes
must be stored in the new receiver memory.
OPERATION
The transmitter has four buttons for operation.
They are LOCK, UNLOCK, DECK LID RELEASE,
and PANIC.
• The UNLOCK button will unlock the driver’s
door and enable illuminated entry. Pushing and
releasing the button once will unlock the driver’s
door. Pushing and releasing the button two times,
within a five second interval, will unlock all doors.
• Upon pressing the LOCK button, the horn will
sound a short CHIRP (if enabled) and flash the park
lamps to notify that the all door lock signal was
received and set. Illuminated entry is cancelled and
the interior lamps are faded to off.
• Pushing and releasing the DECK LID
RELEASE button (one or two times depending on
customer preference) within a two second interval,
will slightly ajar the deck lid.
• Pushing and holding the PANIC button will
cause the panic alarm to sound for three minutes,
until the panic button is pressed and held a second
time, or the vehicle reaches a speed of 15 mph.
The receiver is capable of retaining a Vehicle
Access Code (VAC) even when power is removed.
Each Remote Keyless Entry (RKE) module must
have at least one and no more than four transmit-
ters.
HORN CHIRP TOGGLE
DESCRIPTION
Once the transmitters have been programmed, the
horn chirp can be enabled/disabled by sending the
horn chirp toggle operation code to the Body Control
Module (BCM).

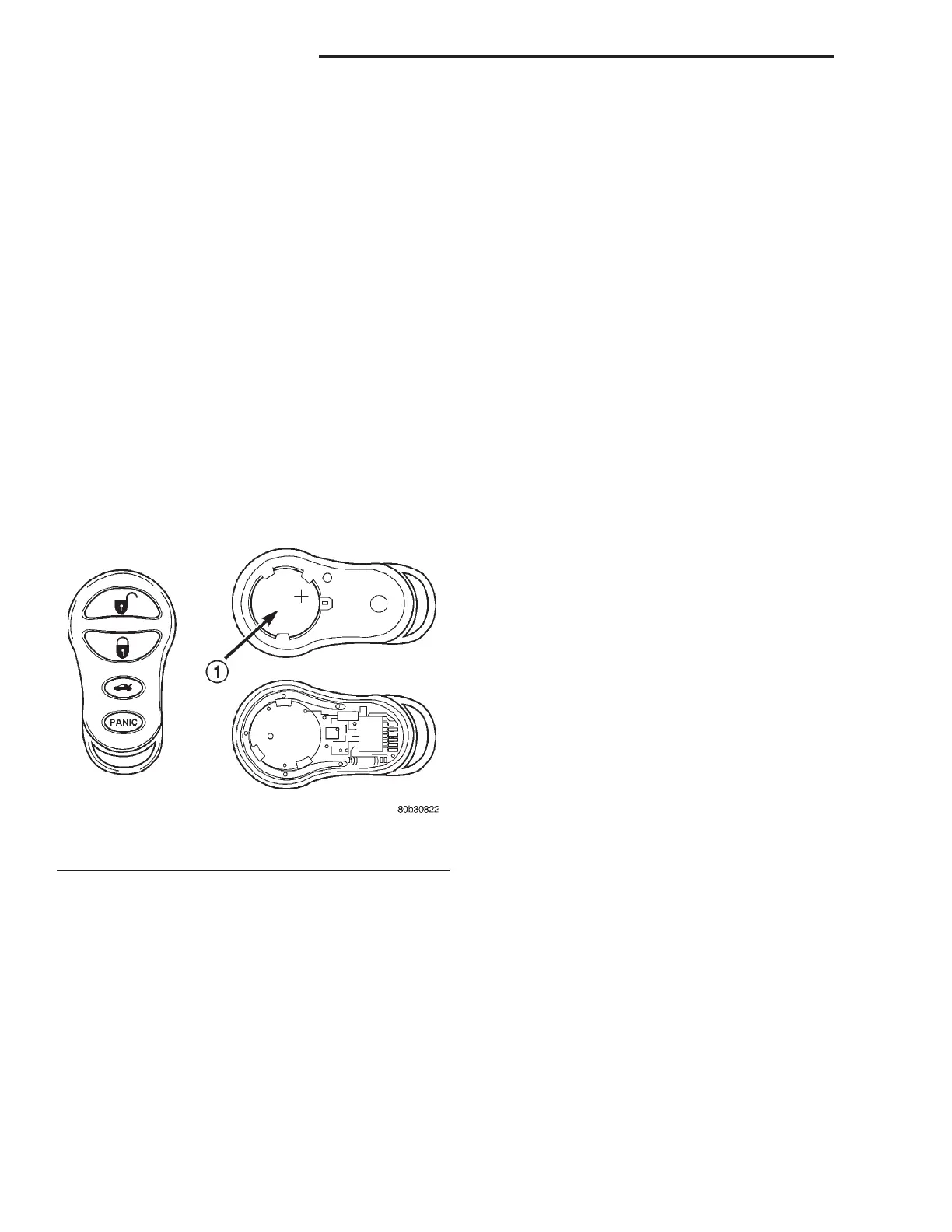

Fig. 1 Remote Keyless Entry Transmitter
1 – BATTERIES
8P - 4 POWER LOCK SYSTEMS LH
