SEATS
TABLE OF CONTENTS
page page
REMOVAL AND INSTALLATION
FRONT SEAT ............................11
FRONT SEAT CUSHION SIDE SHIELD.........11
FRONT SEAT CUSHION....................12
FRONT SEAT CUSHION COVER/HEATED
SEAT COVER ..........................12
FRONT SEAT ARM REST – 50/50 SPLIT .......13
FRONT SEAT BACK.......................13
FRONT SEAT BACK COVER ................14
FRONT SEAT HEAD RESTRAINT.............15
FRONT SEAT LUMBAR SUPPORT............15
FRONT SEAT TRACK AND RECLINER.........15
REAR SEAT CUSHION.....................16
REAR SEAT BACK........................16
REAR SEAT BACK COVER FIXED SEAT BACK . . 16
REAR SEAT ARM REST – 60/40 .............17
REAR SEAT ARM REST WITH SKI PASS.......17
REAR SEAT BACK – 40 SECTION ............17
REAR SEAT BACK – 60 SECTION ............18
REAR SEAT BACK COLLAR ASSEMBLY –
60/40 SEAT............................19
REAR SEAT CUSHION COVER ..............20
REMOVAL AND INSTALLATION
FRONT SEAT
REMOVAL
(1) Position seat far enough forward to gain access
to rear mount bolts on floor.
(2) Remove bolts attaching rear of seat track to
floor (Fig. 1).
(3) Move seat rearward.
(4) Remove bolts attaching front of the seat track
to floor kick up.
(5) Disconnect front seat wire harness connector
from body harness connector, if equipped.
(6) Remove front seat from vehicle.
INSTALLATION
NOTE: Ensure that the seat tracks are rearward
(1) Place front seat in position in vehicle.
(2) Connect front seat wire harness connector to
body harness connector.
(3) Install bolts to attach front of seat track to the
floor kick up. Tighten bolts to 61 N·m (45 ft. lbs.)
torque.
(4) Move seat forward and install bolts attaching
rear of seat track to the floor. Tighten bolts to 61
N·m (45 ft. lbs.) torque.
(5) Verify front seat operation.
FRONT SEAT CUSHION SIDE SHIELD
REMOVAL
(1) Remove seat from vehicle.
(2) Remove screws attaching seat cushion side
shield to the bottom and side of seat cushion (Fig. 2)
and (Fig. 3).
(3) Remove shield from seat
(4) Disconnect switch wire connectors, if equipped.
(5) Remove seat switches, if equipped.
INSTALLATION
(1) Transfer seat switches, if equipped.
(2) Connect switch wire connectors to cushion side
shield, if equipped.

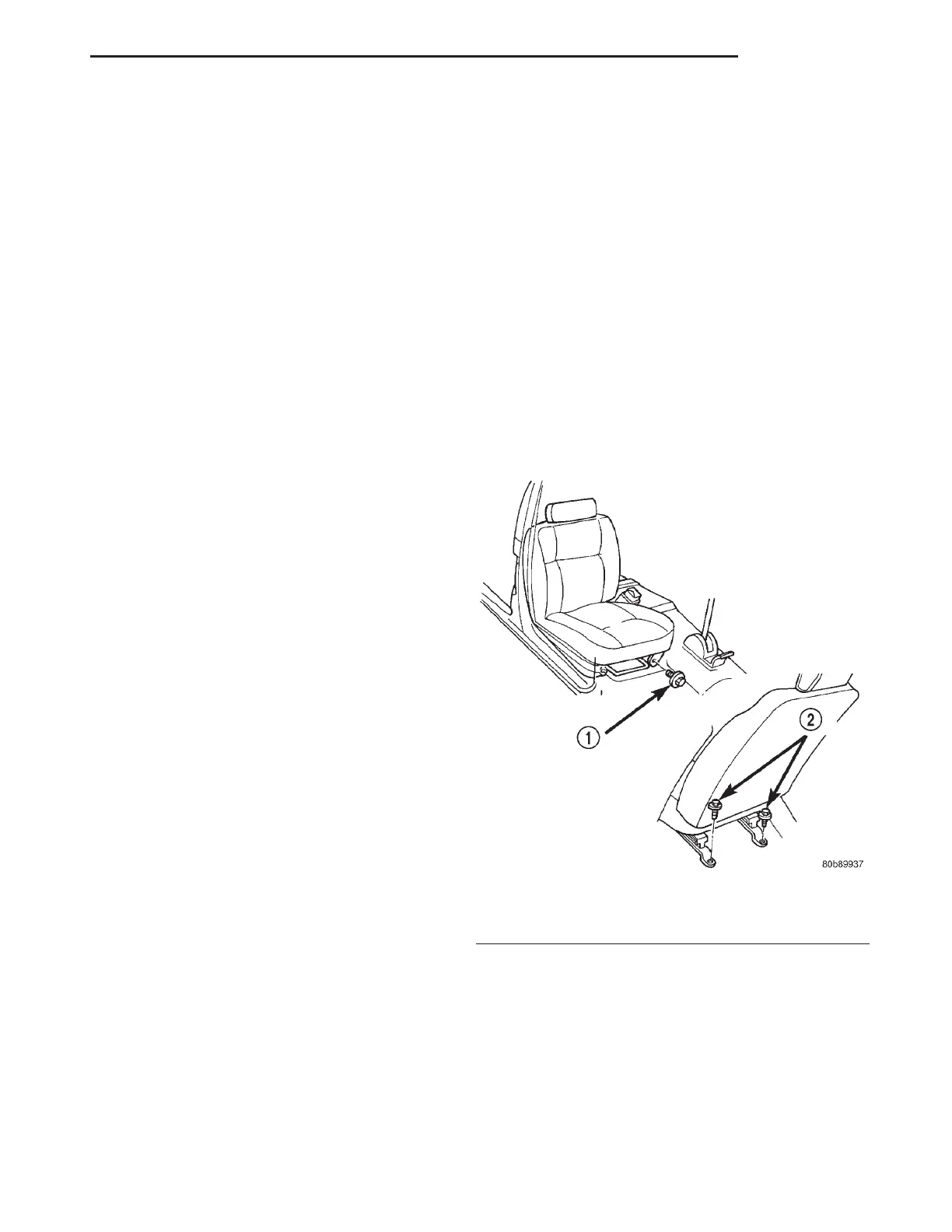

Fig. 1 Front Seat Removal
1 – FRONT BOLTS
2 – REAR BOLTS
LH BODY 23 - 11
