Installation
(1) Push the bulb into the socket.
(2) Install the socket into the tail lamp assembly.
(3) Connect the tail lamp assembly electrical con-
nector.
(4) Install the tail lamp assembly into the vehicle.
(5) Install the tail lamp assembly attaching nuts.
REAR LICENSE PLATE LAMP BULB
Removal
(1) Remove the screws attaching the rear license
plate lamp to the rear bumper fascia.
(2) Remove the license plate lamp from the rear
bumper fascia (Fig. 10).
(3) Twist and remove the socket from the lamp
(Fig. 11).

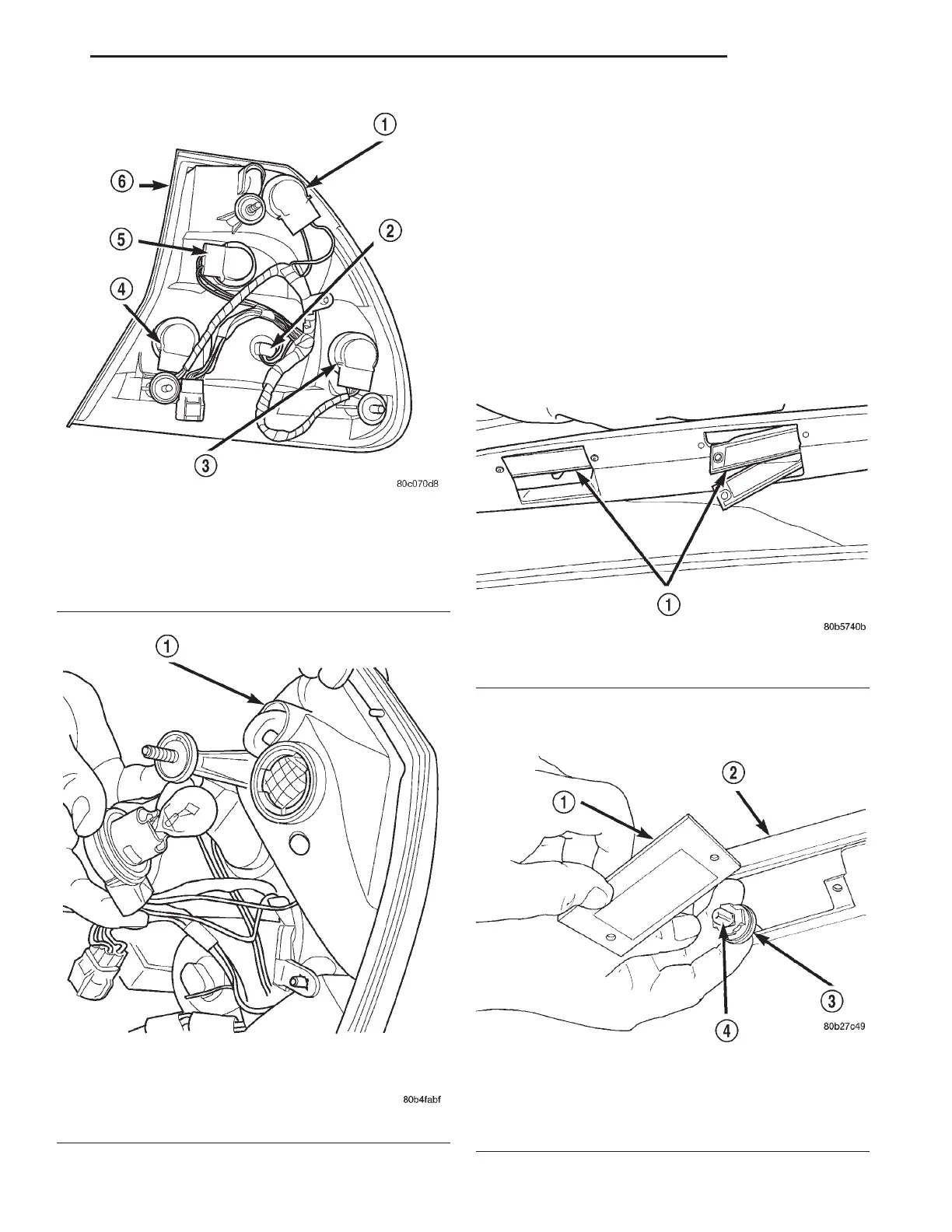

Fig. 16 Tail Lamp Bulbs
1 – REAR TURN SIGNAL LAMP
2 – REAR TAIL LAMP
3 – REAR TAIL/STOP LAMP
4 – REAR TAIL/FOG LAMP
5 – BACK UP LAMP
6 – TAIL LAMP ASSEMBLY
Fig. 17 Tail Lamp Bulb Socket
1 – TAIL LAMP ASSEMBLY
Fig. 18 Rear License Plate Lamp
1 – REAR LICENSE PLATE LAMPS
Fig. 19 Rear License Plate Lamp Socket
1 – LICENSE PLATE LAMP
2 – TRUNK LID
3 – SOCKET
4 – BULB
LH LAMPS 8L - 13
REMOVAL AND INSTALLATION (Continued)
2000 LHS, 300M, CONCORDE AND INTREPID
