(5) Remove the spark plug using a quality socket
with a rubber or foam insert.
(6) Inspect the spark plug condition.
INSTALLATION
(1) To avoid cross threading, start the spark plug
into the cylinder head by hand.
(2) 3.2/3.5L engines tighten spark plugs to 28 N·m
(20 ft. lbs.) torque, 2.7L engine tighten spark plugs to
17.6 N·m (13 ft. lbs.).
(3) Install ignition coil assembly onto spark plug.
(4) Install coil screws and tighten: 2.7L engine to
6.2 N·m (55 in. lbs.), 3.2/3.5L engines to 6.7 N·m (60
in. lbs.).
(5) Connect the electrical connector.
IGNITION COIL
REMOVAL
(1) Prior to removing the ignition coils, spray com-
pressed air around the coil area and spark plug.
(2) Remove electrical connector from ignition coil.
On 3.2/3.5L engines, it is necessary to loosen the
screws by alternating back and forth. Do not lose the
spacers under the coil when loosening the screws.
(3) Remove 2 fasteners from ignition coil assembly.
(4) Remove ignition coil assembly.
INSTALLATION
(1) Install ignition coil assembly for spark plug.
(2) Install coil screws and tighten: 2.7L engine to
6.2 N·m (55 in. lbs.), 3.2/3.5L engines to 6.7 N·m (60
in. lbs.).
(3) Connect the electrical connector.
AUTOMATIC SHUTDOWN RELAY
The relay is located in the Power Distribution Cen-
ter (PDC) (Fig. 13). For the location of the relay
within the PDC, refer to the PDC cover for location.
Check electrical terminals for corrosion and repair as
necessary.
CAMSHAFT POSITION SENSOR—2.7L
The camshaft position sensor is mounted in the
front of the timing case cover (Fig. 14).
REMOVAL
(1) Disconnect electrical connector from sensor.
(2) Remove camshaft position sensor screw.
(3) Without pulling on the connector, pull the sen-
sor out of the chain case cover.
INSTALLATION
(1) Install sensor in the chain case cover and push
sensor in until contact is made with the timing chain
cover. While holding the sensor in this position,
install and tighten the retaining bolt to 12 N·m (105
in. lbs.) torque.
(2) Attach electrical connector to sensor.
CAMSHAFT POSITION SENSOR—3.2/3.5L
The camshaft position sensor is installed in the
timing belt housing cover above the left camshaft
sprocket (Fig. 15).

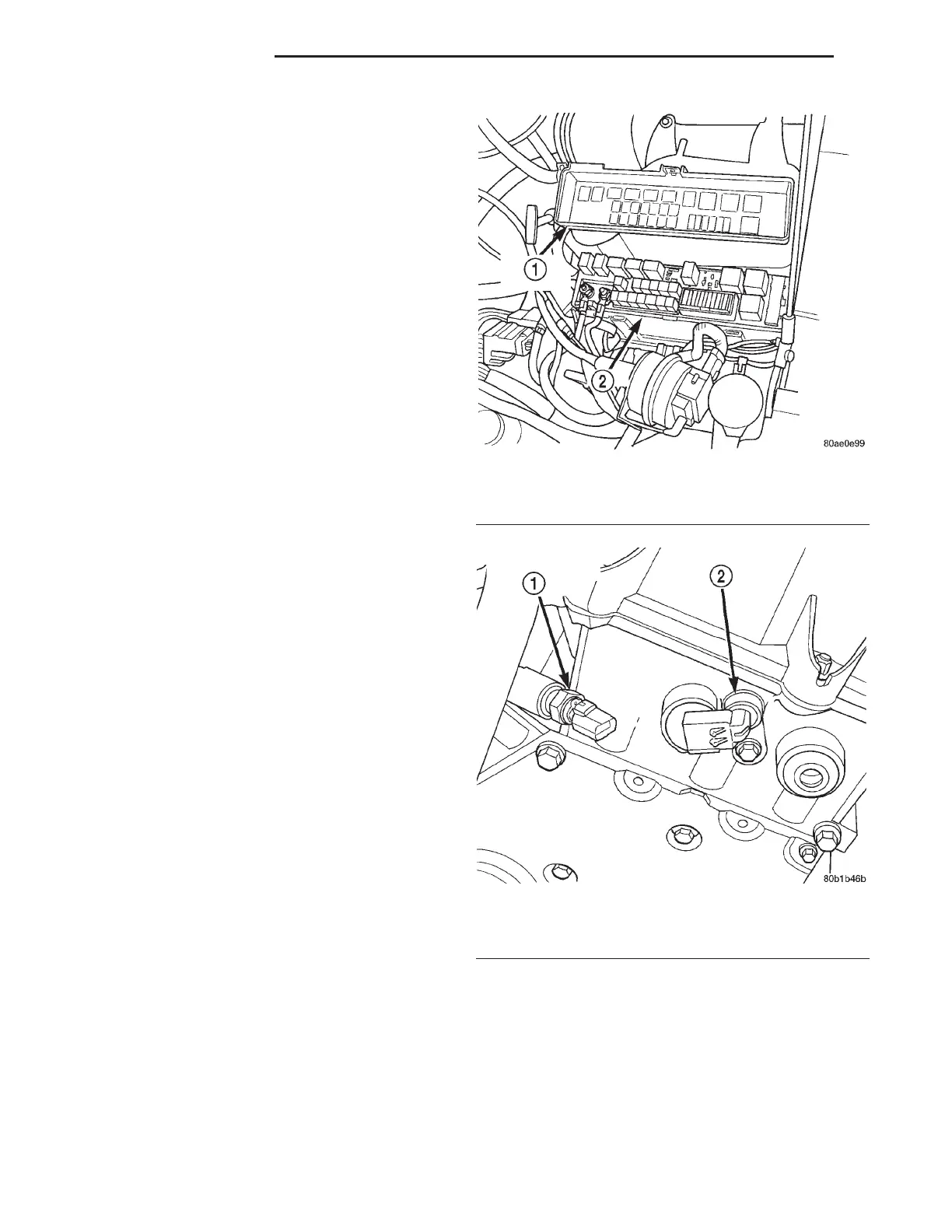

Fig. 13 Power Distribution Center (PDC)
1 – PDC COVER
2 – PDC
Fig. 14 Camshaft Position Sensor Location
1 – ENGINE COOLANT TEMPERATURE SENSOR
2 – CAM SENSOR
8D - 6 IGNITION SYSTEM LH
REMOVAL AND INSTALLATION (Continued)
