INSTRUMENT PANEL AND SYSTEMS
TABLE OF CONTENTS
page page
DESCRIPTION AND OPERATION
HEADLAMP LEVELING SYSTEM .............1
HEADLAMP LEVELING SWITCH..............1
REAR FOG LAMP SWITCH..................1
INSTRUMENT CLUSTER....................2
REMOVAL AND INSTALLATION
HEADLAMP LEVELING SWITCH..............2
REAR FOG LAMP SWITCH..................3
DESCRIPTION AND OPERATION
HEADLAMP LEVELING SYSTEM
Some vehicles are equipped with a remote head-
lamp leveling system. This system allows the driver
to adjust the vertical headlamp aim from the interior
of the vehicle to compensate for passenger or cargo
load. A headlamp leveling switch is located on the
instrument panel and controls the headlamp leveling
motor found on the back of the headlamp module.
Refer to Group 8W, Wiring Diagrams for a detailed
schematic.
HEADLAMP LEVELING SWITCH
DESCRIPTION
The headlamp leveling switch controls the headlamp
leveling motor. This switch is located on the instrument
panel, integral with the headlamp switch. If this switch
fails the entire headlamp switch must be replaced.
OPERATION
The headlamp leveling switch allows remote
adjustment of the vertical aim of the headlamps. By
rotating this switch upward the headlamp beam con-
centration will rise, by rotating downward the beam
concentration will decline.
REAR FOG LAMP SWITCH
DESCRIPTION
The rear fog lamp switch controls the rear fog
lamps of the vehicle. This switch is integrated in the
headlamp switch. If this switch fails the entire head-
lamp switch must be replaced.
OPERATION
When the headlamp switch is rotated to the full
right position the rear fog lamps will illuminate from
the rear of the vehicle.

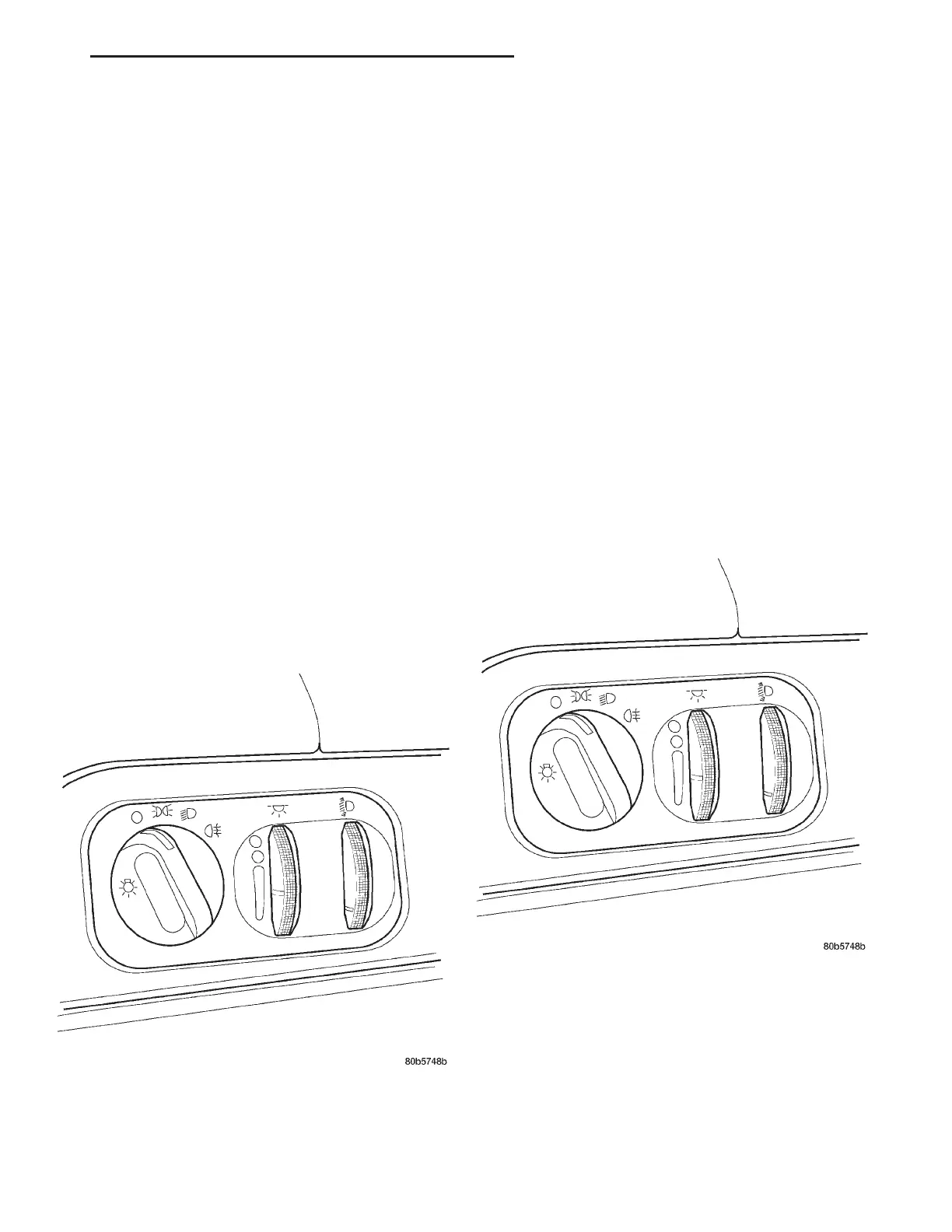

Fig. 1 Headlamp Leveling Switch
Fig. 2 LH Headlamp Switch
LH INSTRUMENT PANEL AND SYSTEMS 8E - 1
2000 LHS, 300M, CONCORDE AND INTREPID
