INSTALLATION
CAUTION: Do not touch the glass of halogen bulbs
with fingers or other possibly oily surface, reduced
bulb life will result.
(1) Place headlamp housing into position.
(2) Connect wire connector to lamp socket(s)
and/or bulbs.
(3) Verify headlamp and signal lamp operation.
(4) Install jackscrews to attach headlamp housing
to crossmember.
(5) Align fascia to bumper reinforcement and
install the top center push pins, to upper radiator
closure panel.
(6) Align the two fascia studs to the fender vertical
attachments, at the same time align the fascia groove
on the horizontal flange with the fender drive pin.
Push fascia rearward to engage the fasteners.
(7) Install nut on fascia stud through the splash
shield access hole.
(8) Verify headlamp operation and alignment.

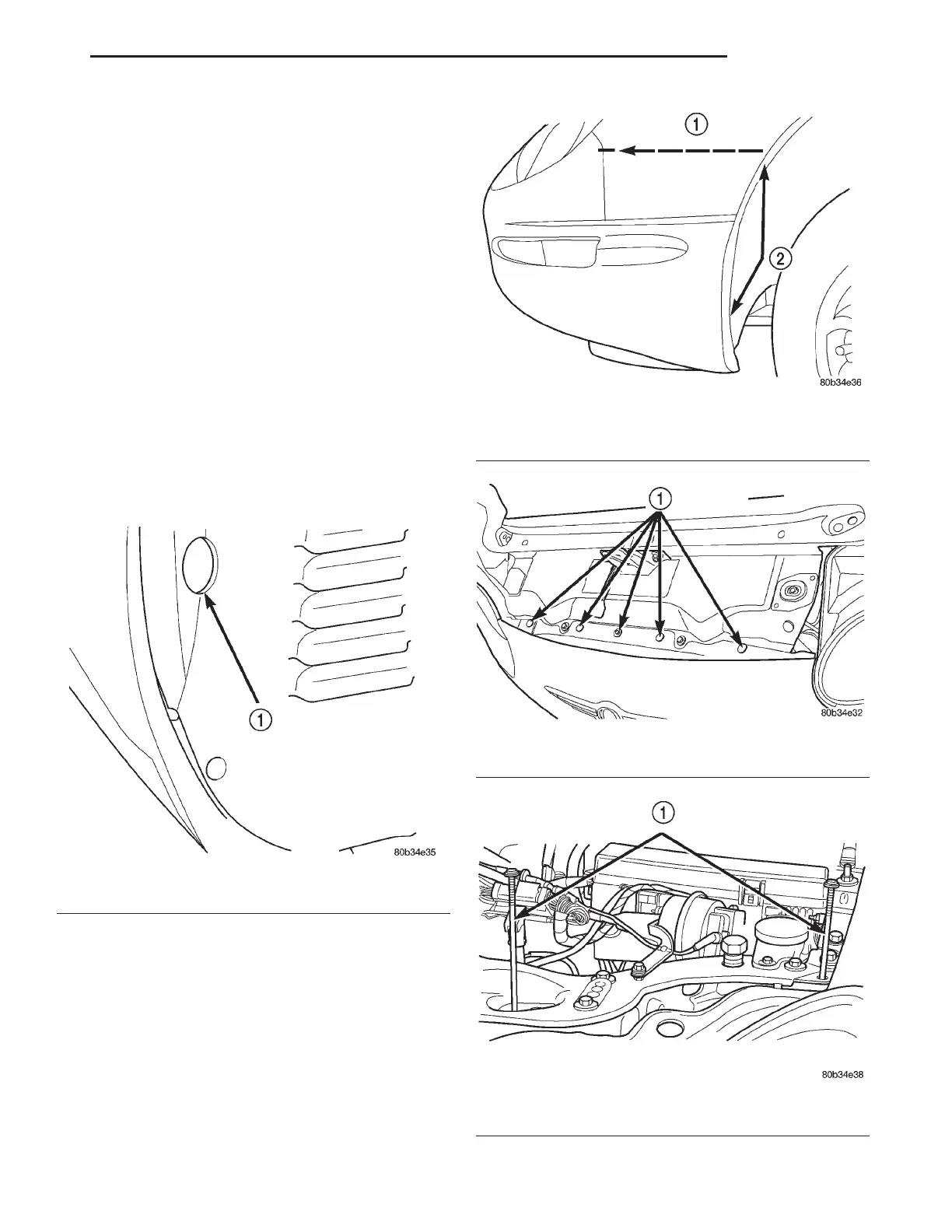

Fig. 1 Access Rubber Grommet
1 – ACCESS RUBBER GROMMET
Fig. 2 Fastener Locations
1 – THROUGH ACCESS REMOVE FASTENER
2 – FASTENERS
Fig. 3 Remove Push In Fasteners
1 – PUSH IN FASTENERS
Fig. 4 Headlamp Jackscrews
1 – HEADLAMP JACKSCREWS
LH LAMPS 8L - 19
REMOVAL AND INSTALLATION (Continued)
