(4) Verify headlamp operation.
(5) Install jackscrews to attach headlamp housing
to crossmember.
(6) Verify headlamp operation and alignment.
FOG LAMP BULB – INTREPID/300M
REMOVAL
(1) Remove fog lamp housing screw in front fascia
and pull lamp housing from the fascia.
(2) Remove rear cover from fog lamp housing.
(3) Disengage wire clip holding bulb in fog lamp.
(4) Hinge wire clip out of bulb removal path.
(5) Pull bulb from lamp housing (Fig. 3) or (Fig. 4).
(6) Disengage wire connector from body wire har-
ness.
INSTALLATION
CAUTION: Do not touch the glass of halogen bulbs
with fingers or other possibly oily surface, reduced
bulb life will result.
(1) Connect wire connector to body wire harness.
(2) Cover exposed terminal with teflon coated
sleeve.
(3) Insert bulb into lamp housing.
(4) Hinge wire clip over bulb base.
(5) Engage wire clip to hold bulb in fog lamp.
(6) Install rear cover to fog lamp housing.
(7) Verify fog lamp operation and alignment.
(8) Install fog lamp housing screw to the front fas-
cia.
FOG LAMP BULB – LHS
REMOVAL
(1) Remove fog lamp housing screw in front fascia
and pull lamp housing from the front fascia.
(2) Disconnect wire connector from fog lamp socket
(Fig. 5).
(3) Rotate socket and pull bulb/socket from lamp
housing.
INSTALLATION
CAUTION: Do not touch the glass of halogen bulbs
with fingers or other possibly oily surface, reduced
bulb life will result.
(1) Install socket into fog lamp housing and rotate
to the lock position.

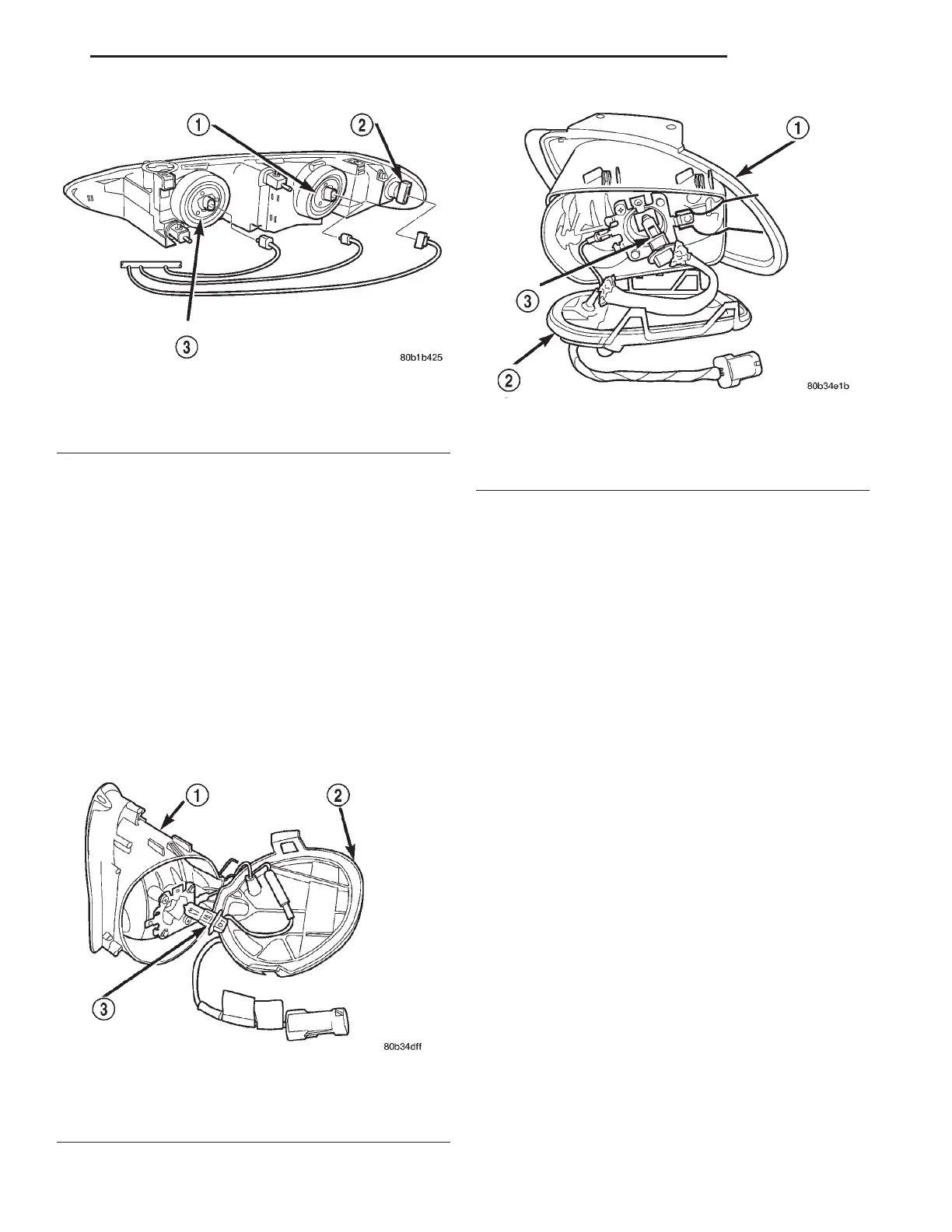

Fig. 2 Headlamp Bulb – Intrepid
1 – LOW BEAM
2 – PARKING AND TURN SIGNAL
3 – HIGH BEAM
Fig. 3 Fog Lamp Bulb – Intrepid
1 – FOG LAMP
2 – REAR COVER
3 – FOG LAMP BULB
Fig. 4 Fog Lamp Bulb – 300M
1 – FOG LAMP
2 – REAR COVER
3 – FOG LAMP BULB
LH LAMPS 8L - 13
REMOVAL AND INSTALLATION (Continued)
