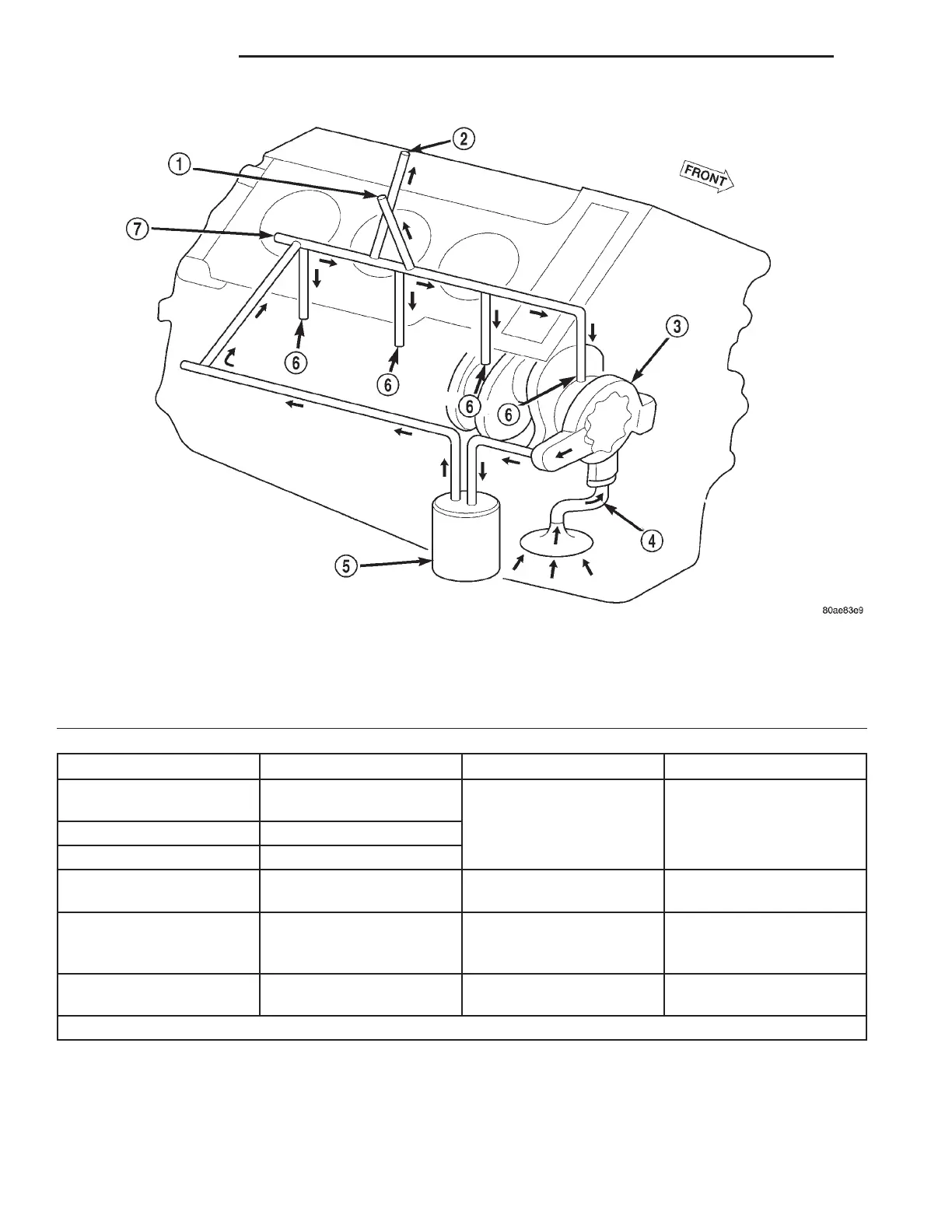

Fig. 11 Cylinder Block Oil Lubrication System
1 TO RIGHT CYLINDER HEAD
2 TO LEFT CYLINDER HEAD
3 OIL PUMP
4 OIL PICKUP TUBE
5 OIL FILTER
6 TO CRANKSHAFT MAIN JOURNALS
7 MAIN OIL GALLERY
FROM: TO: FROM: TO:
Oil Pump Oil Filter Mounting (inlet) Main Oil Gallery Center
of Block
1. Crankshaft Main
Bearings
Oil Filter Mounting (inlet) Oil Filter 2. Left Cylinder Head*
Oil Filter Oil Filter Mounting (outlet) 3. Right Cylinder Head*
Oil Filter Mounting (outlet) Oil Gallery Right side of
Block
Crankshaft Main Bearings Connecting Rod Bearings
Oil Gallery Right side of
Block
Oil Gallery Rear of
Block and to Oil Cooler
(some models)
Left Cylinder Head Refer to (Fig. 12)
Oil Gallery Rear of
Block
Main Oil Gallery Center
of Block
Right Cylinder Head Refer to (Fig. 13)
* The cylinder head gaskets have an oil restrictor to control oil flow to the cylinder heads.
9 - 10 2.7L ENGINE LH
DESCRIPTION AND OPERATION (Continued)
